iCubeSmart GZT12 Led Canton Tower Model DIY Electronic Kit, LED Handmade Soldering Project Kit, 12 LED Circles, Height 0.38 Meter.

$24.80 USD
$0.00 USD
Quantity
Only 90 left
Volume Pricing
Quantity
Price
1+
$24.80 USD each
Free worldwide shipping
Free returns
Carbon neutral
Secure payments
Shipping Policy
Return Policy

Interesting Electronic DIY Kit:

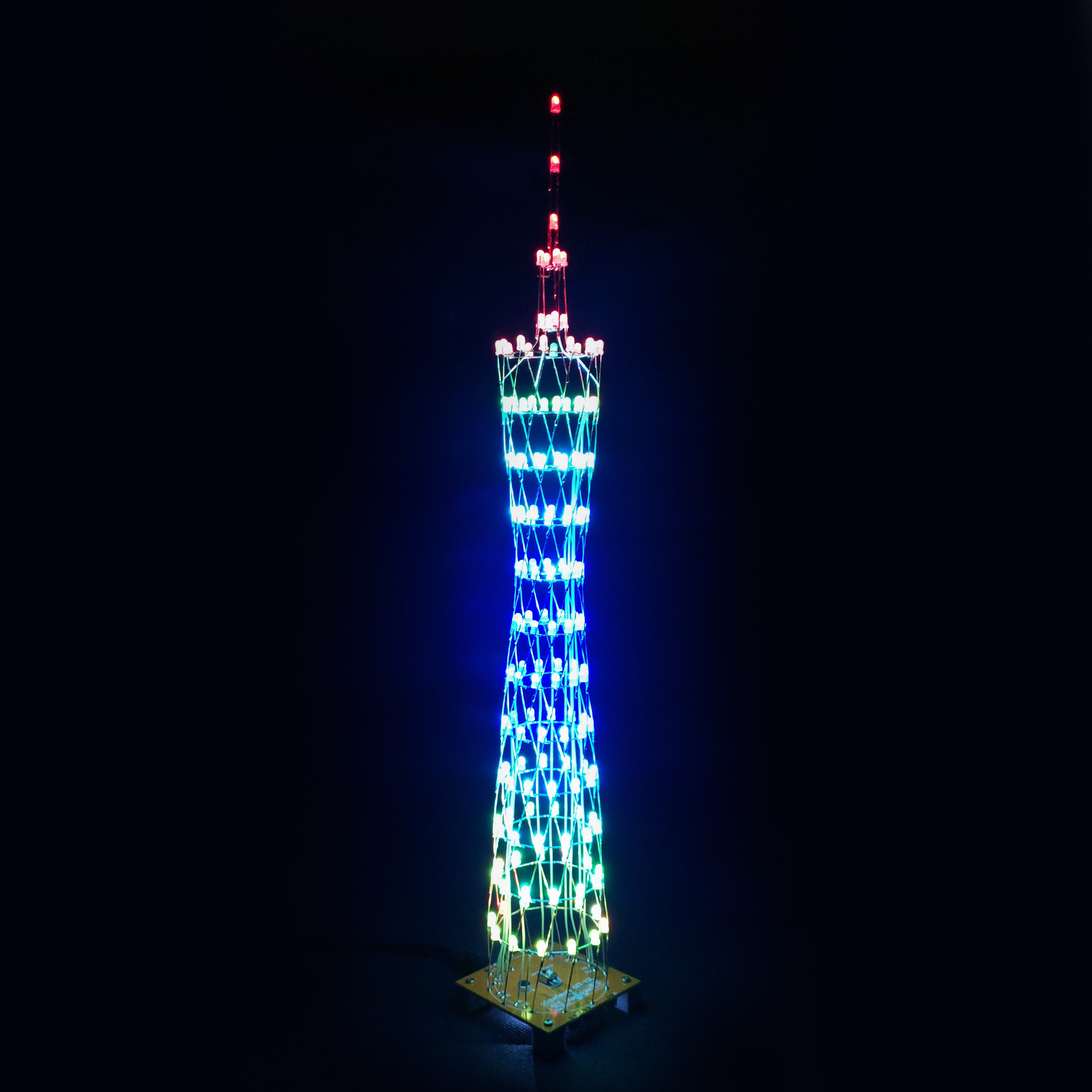

This is a diy electronics kit for canton tower model, a led model made up of 155 LED lamps, which can display a lot of colorful dynamic lighting shapes. The size of the finished product after welding is about 6x6x35cm. ​Users can display the animation after welding and plugging in the 5V USB power supply. The following is the video effect of the finished product:

Used For:

It is suitable for students' manual electronic manufacturing courses, hands-on welding exercises and electronics enthusiast. Meanwhile, it is also a pretty innovative and meaningful gift.

It Needs To Be Welded By The Buyer:

The PCB mainboard in this package has been well soldered and tested, and users only need to solder the LED lamp themselves, so users are only required to have a simple electronic technology foundation and soldering ability. There are 100 holes on the plastic mold to fix the LED and make welding easier.

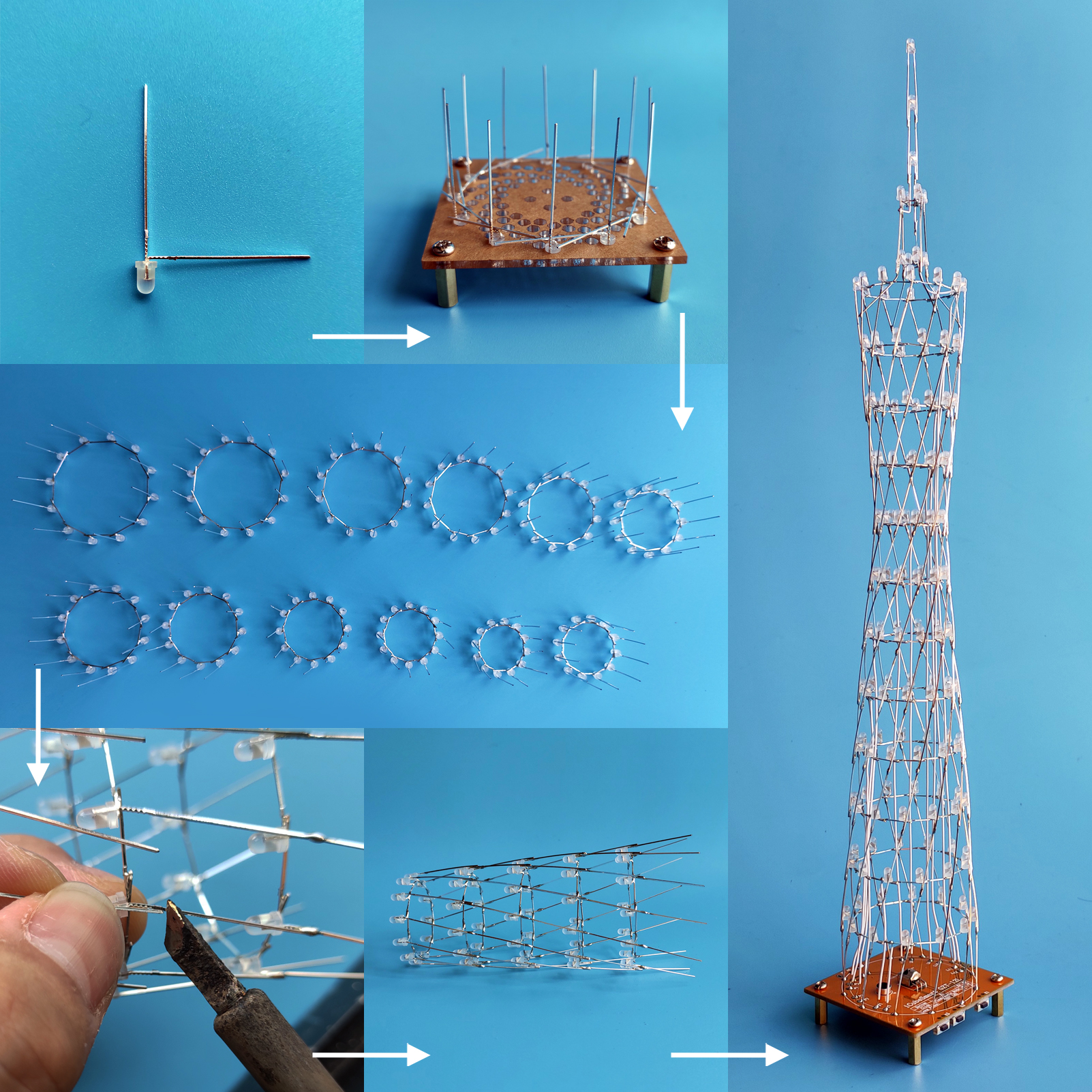

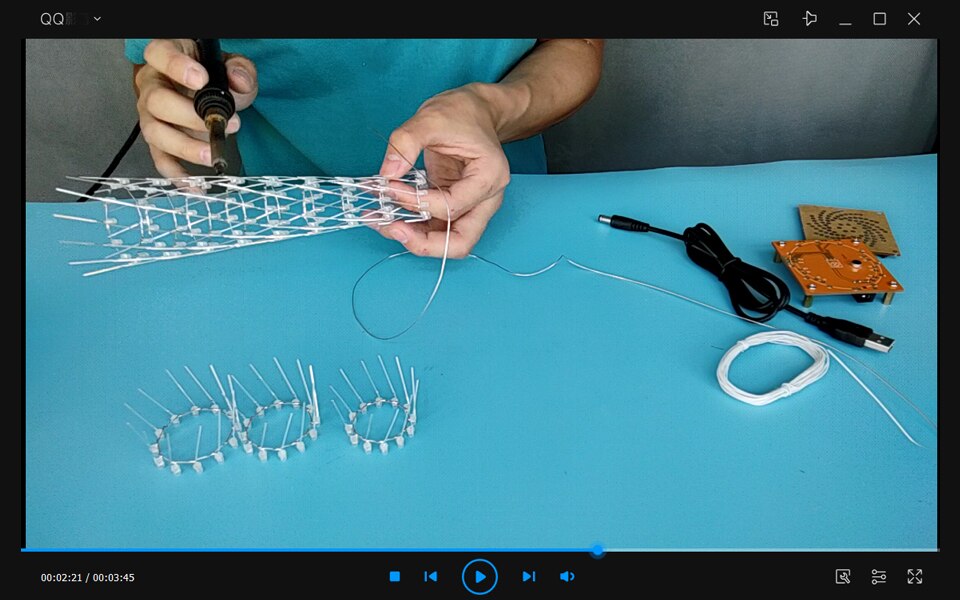

The following link is a video of the DIY installation process.

Hardware Composition:

Microcontroller: STC8H1K28 ​The horizontal 12 layers are LED cathode and the vertical 12 columns are LED anode. The mainboard is powered by 5V USB. ​There are 3 keys on the mainboard to switch animation modes. ​The button functions: ​1, Mode: Dynamic effect/Audio effect ​2, Previous: Previous dynamic effect ​3, Next: Next dynamic effect ​Audio Mode: ​There is a microphone on the motherboard, which can collect sound signals. Use the mode button to switch the audio mode. After that, the dynamic effect will jump up and down with the music signal.

It supports infrared remote control.

The following is the function diagram of the remote control:

Package Include:

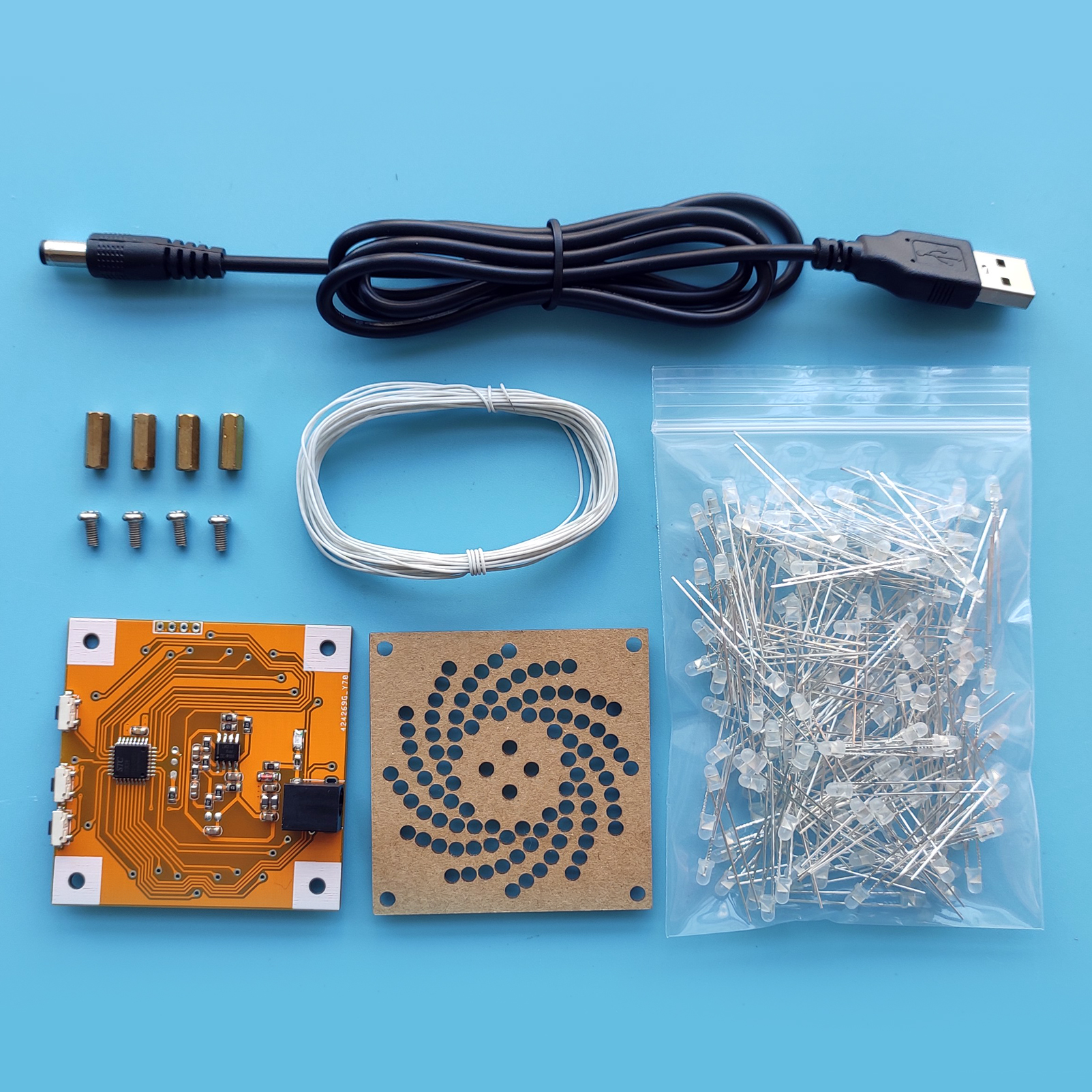

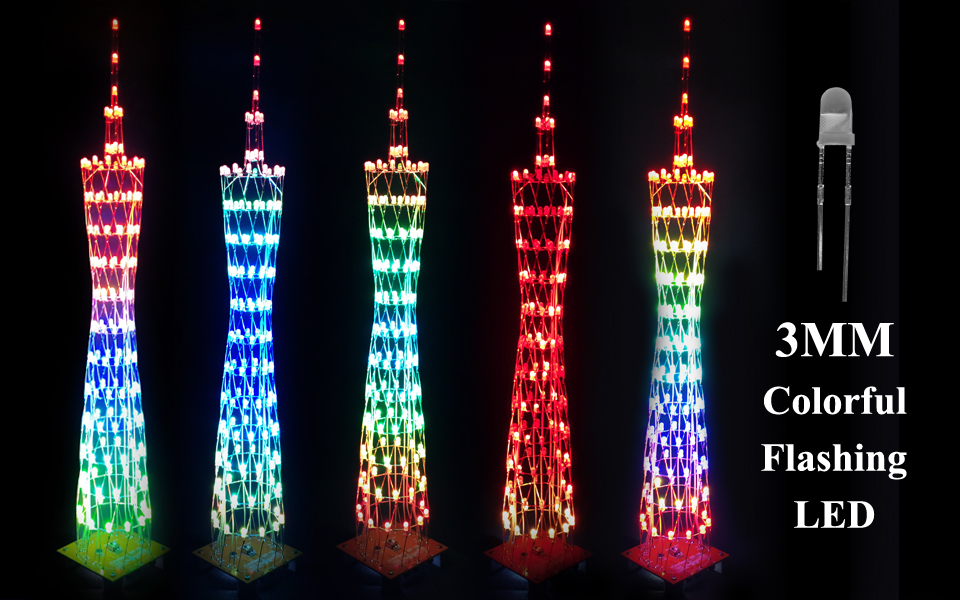

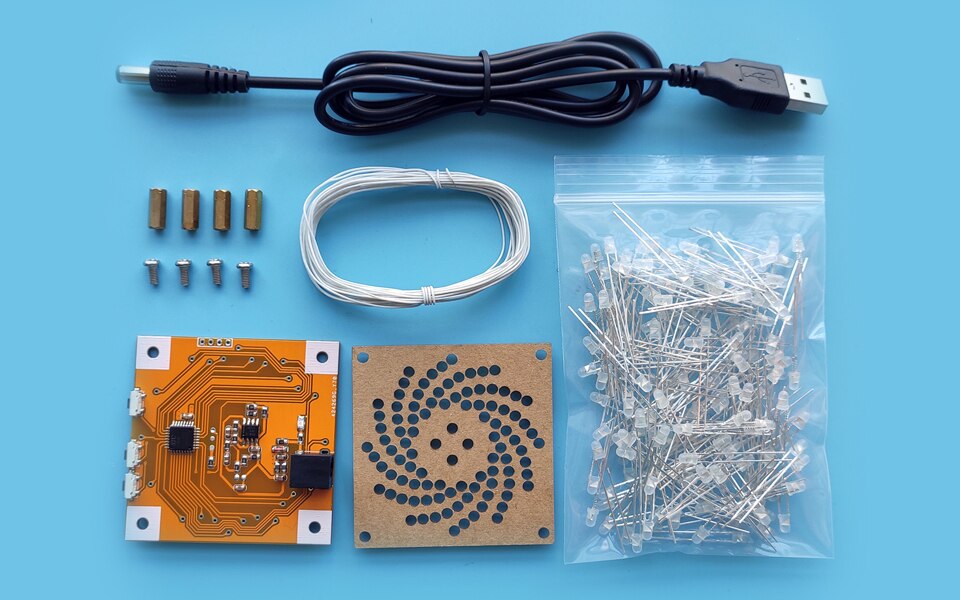

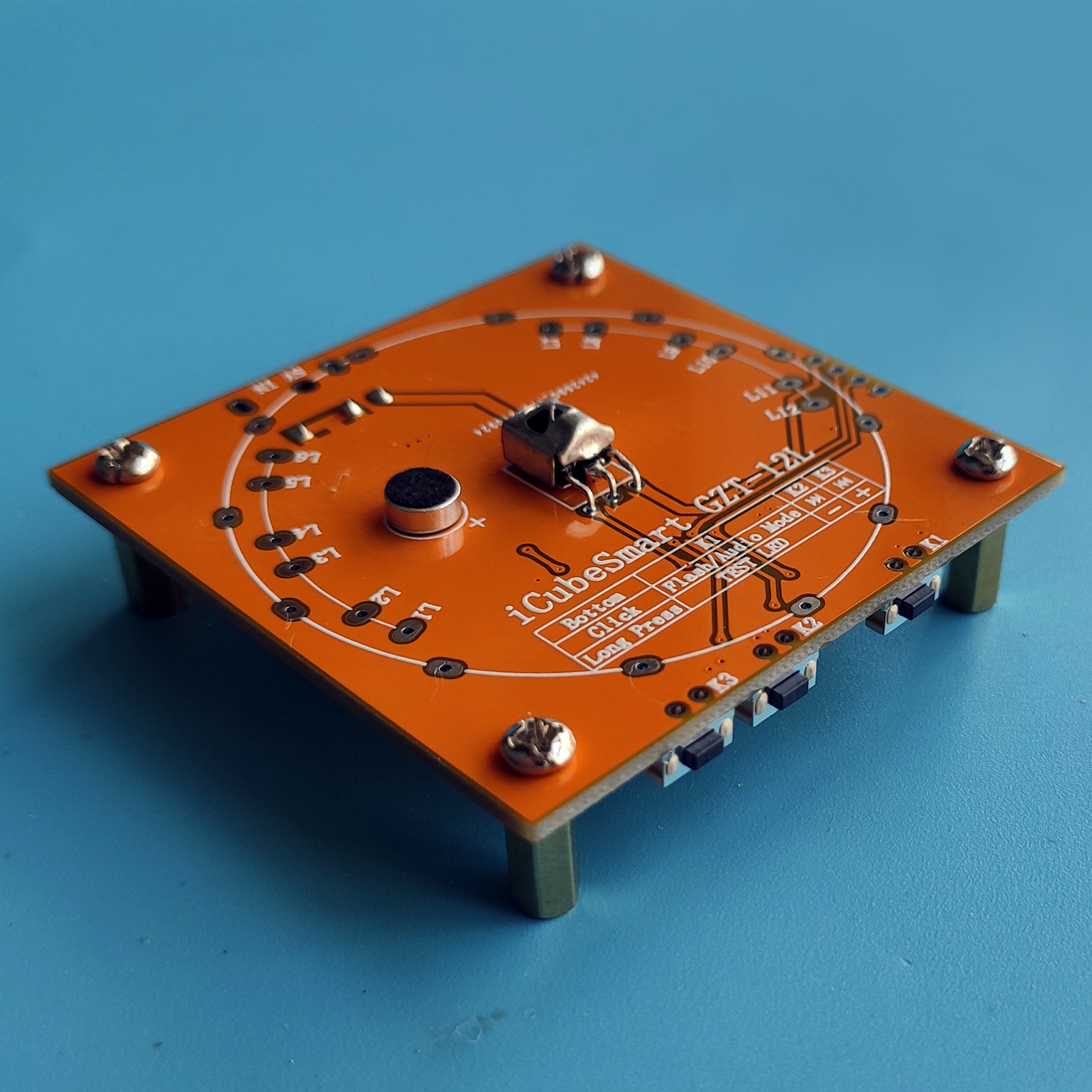

1, Soldered and tested mainboard (size: 6*6cm) x1 ​2, Copper posts and screws x4 ​3, USB cable x1 ​4, White electronic line x 1 ​5, Plastic mold for auxiliary welding x1 ​6, 3mm colorful flashing LED x170(used 155)

Our Efforts Are Only To Make It Easier For Buyers To Succeed:

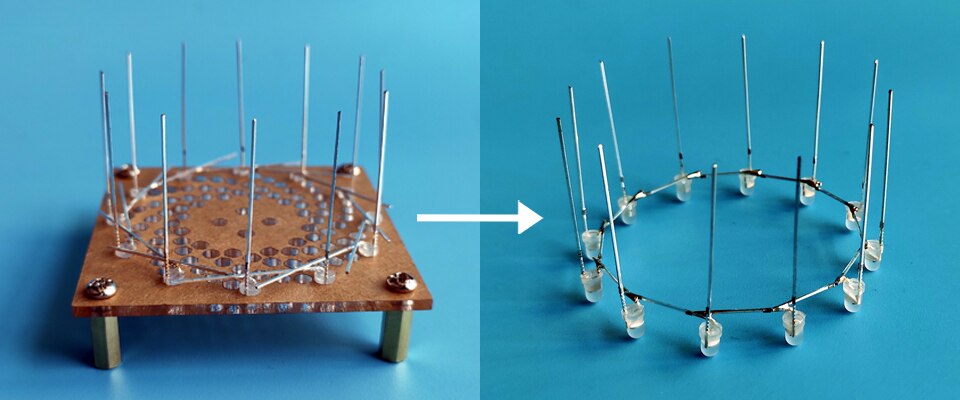

We have made a lot of efforts to make the installation as simple as possible for the buyer. ​Upon receipt of the goods, you only need to weld the LED lamp based on the welding instructions and plug in the 5V usb power supply to display brilliant lighting effects. ​1, There are 100 holes on the plastic mold to fix the LED and make welding easier.

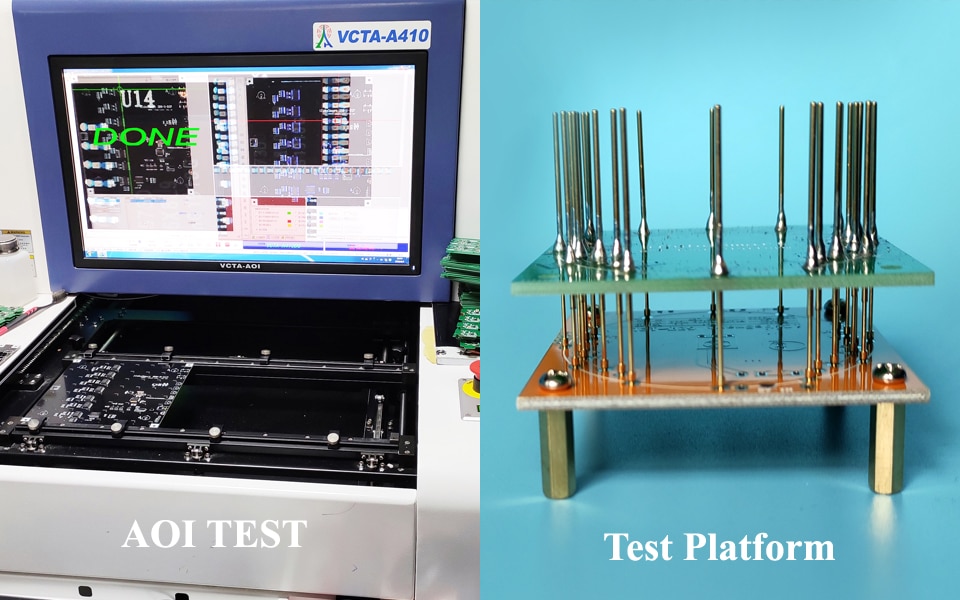

2, We tested the mainboard twice, using the AOI automatic test for the first time, and using the test platform for the simulation test for the second time.

3, As a matter of fact, only 155 leds will be used, but to prevent damage to leds during manufacture, each led is provided for standby.

Professional Services:

We have been engaged in the design and production of Led Cube for 9 years. We have designed various sizes of led cube as well as other electronic DIY products. If you receive the product and do not know how to make it, or if there are fewer components for any reason, you can leave us a message. We offer life-long technical support services for our DIY products.
