iCubeSmart GZT64PLUS 1.9 Meter Led Canton Tower Model DIY Electronic Kit, LED Model Handmade Soldering Project Kit

Interesting Electronic DIY Kit:

This is a diy electronics kit for canton tower model, a led model made up of 2112 LED lamps, which can display a lot of colorful dynamic lighting shapes. The size of the finished product after welding is about 21x21x190cm. ​In addition to displaying dynamic effects, it can also display text. ​Users can display the animation after welding and plugging in the 5V USB power supply.

Used For:

It is suitable for students' manual electronic manufacturing courses, hands-on welding exercises and electronics enthusiast. Meanwhile, it is also a pretty innovative and meaningful gift.

It Needs To Be Welded By The Buyer:

The PCB mainboard in this package has been well soldered and tested, and users only need to solder the LED lamp themselves, so users are only required to have a simple electronic technology foundation and soldering ability. There are 512 holes on the plastic mold to fix the LED and make welding easier. ​The following link is its DIY installation tutorial: ​https://drive.google.com/file/d/1r7TpOc2PjPWrFBWEJam55jsLfFtk3FIH

The following link is a video of the DIY installation process: https://youtu.be/IE009I6WCiw

Hardware Composition:

Microcontroller: STC32G12K128  ​Driver chip: MBI5024 + SS8550, the horizontal 64 layers are LED cathode and the vertical 32 columns are LED anode.

The mainboard is powered by 5V USB;

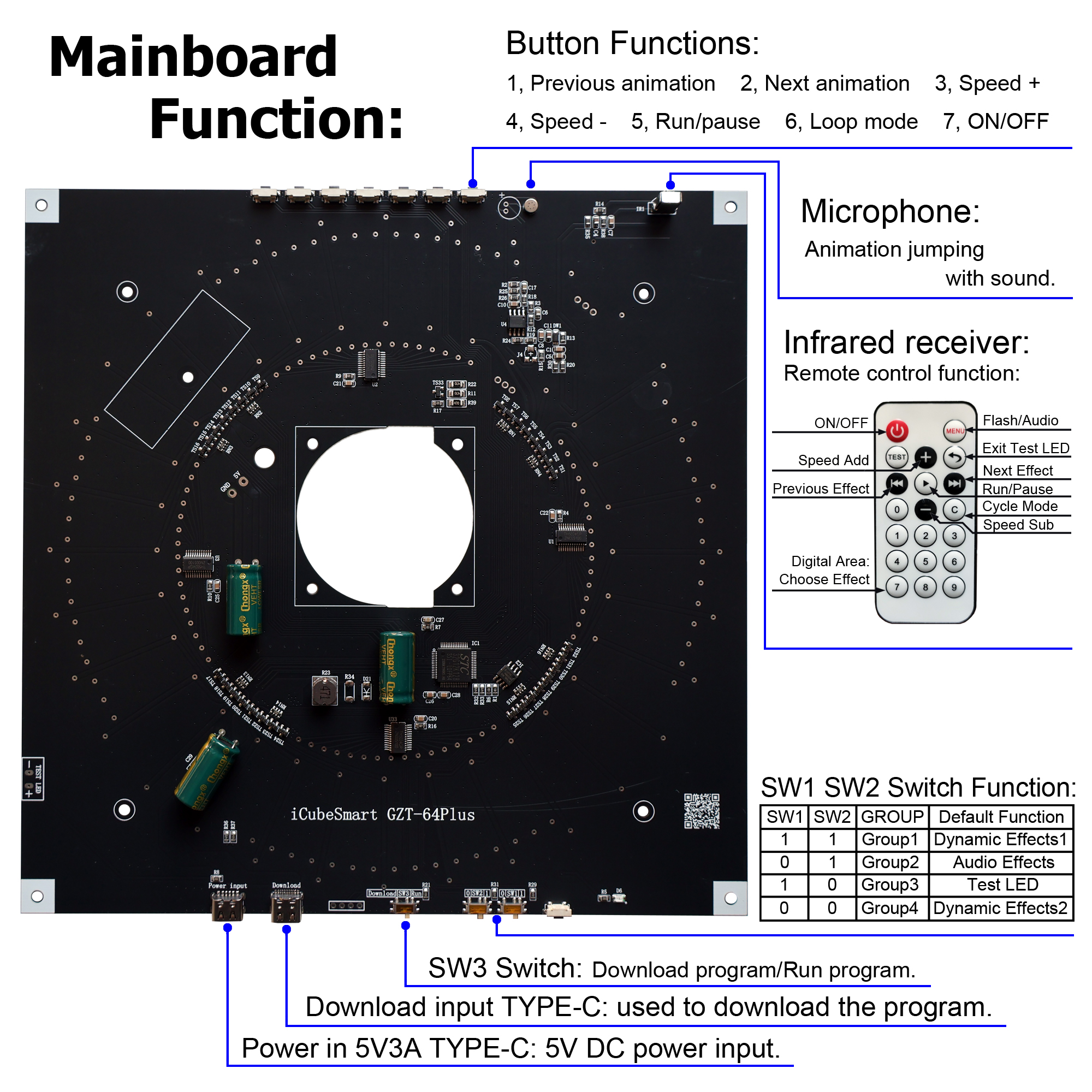

There are 7 keys on the mainboard to switch animation modes. ​

Package Include:

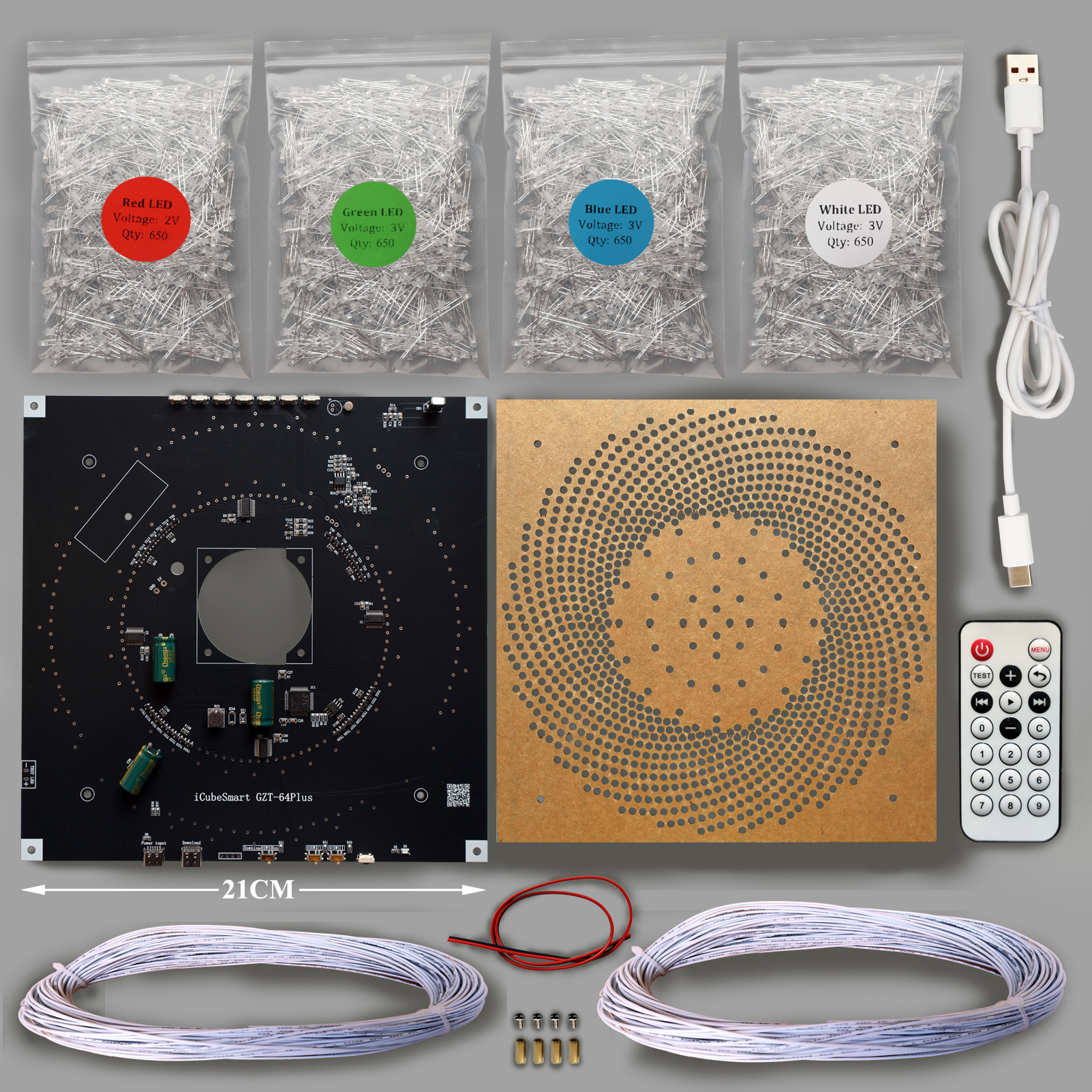

1, Soldered and tested mainboard (size: 21*21cm) x1 ​
2, USB TYPE-C cable x1  ​
3, White electronic line x 2  ​
4, Plastic mold for auxiliary welding x1
5, Foggy highlight 3mm LED lamps, each led is provided for standby. ​

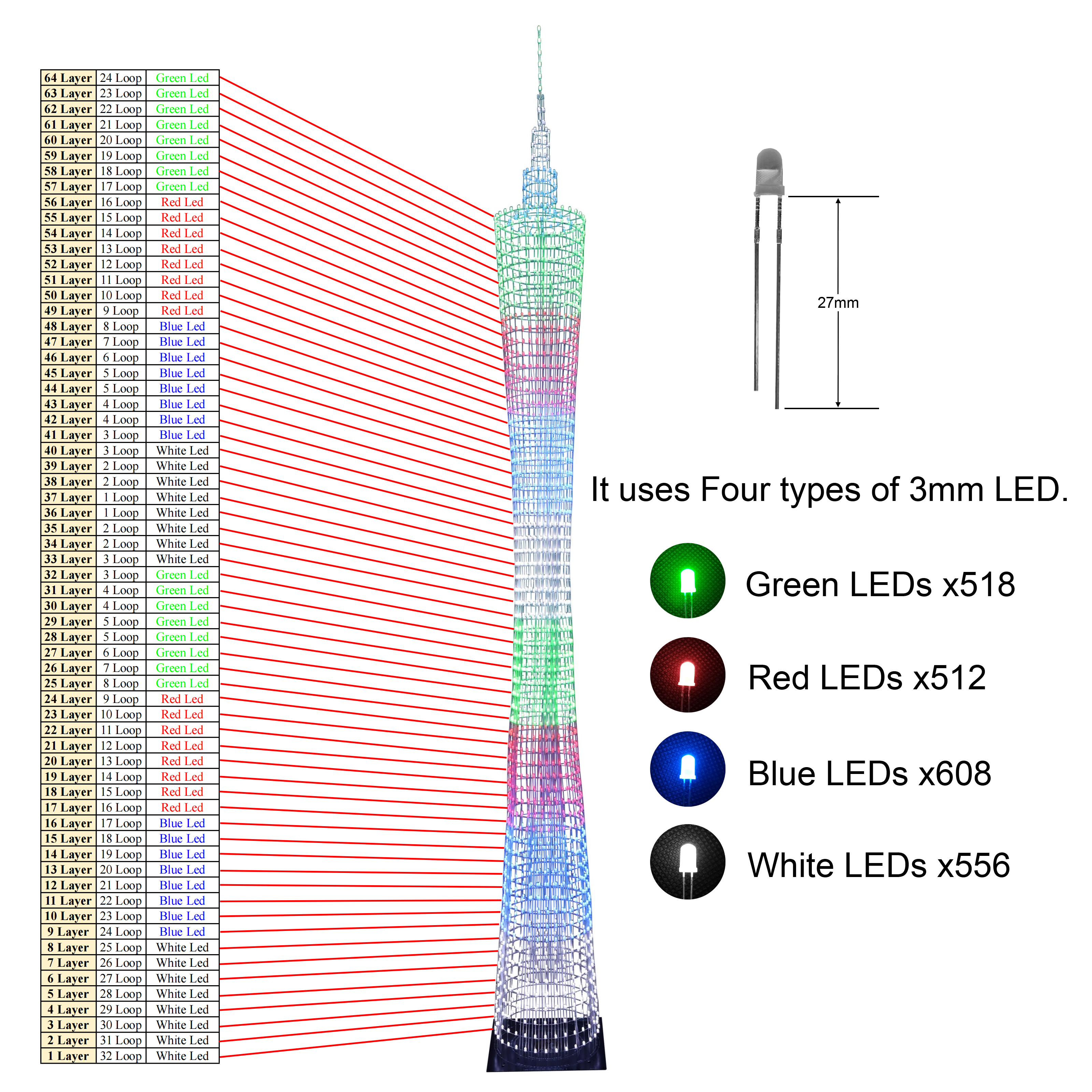

3mm long Pin Red Leds x650(used 512) ​
3mm long Pin Green Leds x650(used 518) ​
3mm long Pin Blue Leds x650(used 608) ​
3mm long Pin While Leds x650(used 556)
6. Copper pillar + screw x4
7. Remote control
8. Red and black wire (for testing LED)

Our Efforts Are Only To Make It Easier For Buyers To Succeed:

We have made a lot of efforts to make the installation as simple as possible for the buyer. ​Upon receipt of the goods, you only need to weld the LED lamp based on the welding instructions and plug in the 5V usb power supply to display brilliant lighting effects. ​

1, There are 512 holes on the plastic mold to fix the LED and make welding easier.

2, We tested the mainboard twice, using the AOI automatic test for the first time, and using the test platform for the simulation test for the second time.

3, As a matter of fact, only 2194 leds will be used, but to prevent damage to leds during manufacture, each led is provided for standby.

Professional Services:

We have been engaged in the design and production of Led Cube for 14 years. We have designed various sizes of led cube as well as other electronic DIY products. If you receive the product and do not know how to make it, or if there are fewer components for any reason, or if you need our help to modify the displayed animation, you can leave us a message. We offer life-long technical support services for our DIY products.
