NEW LED CUBE:

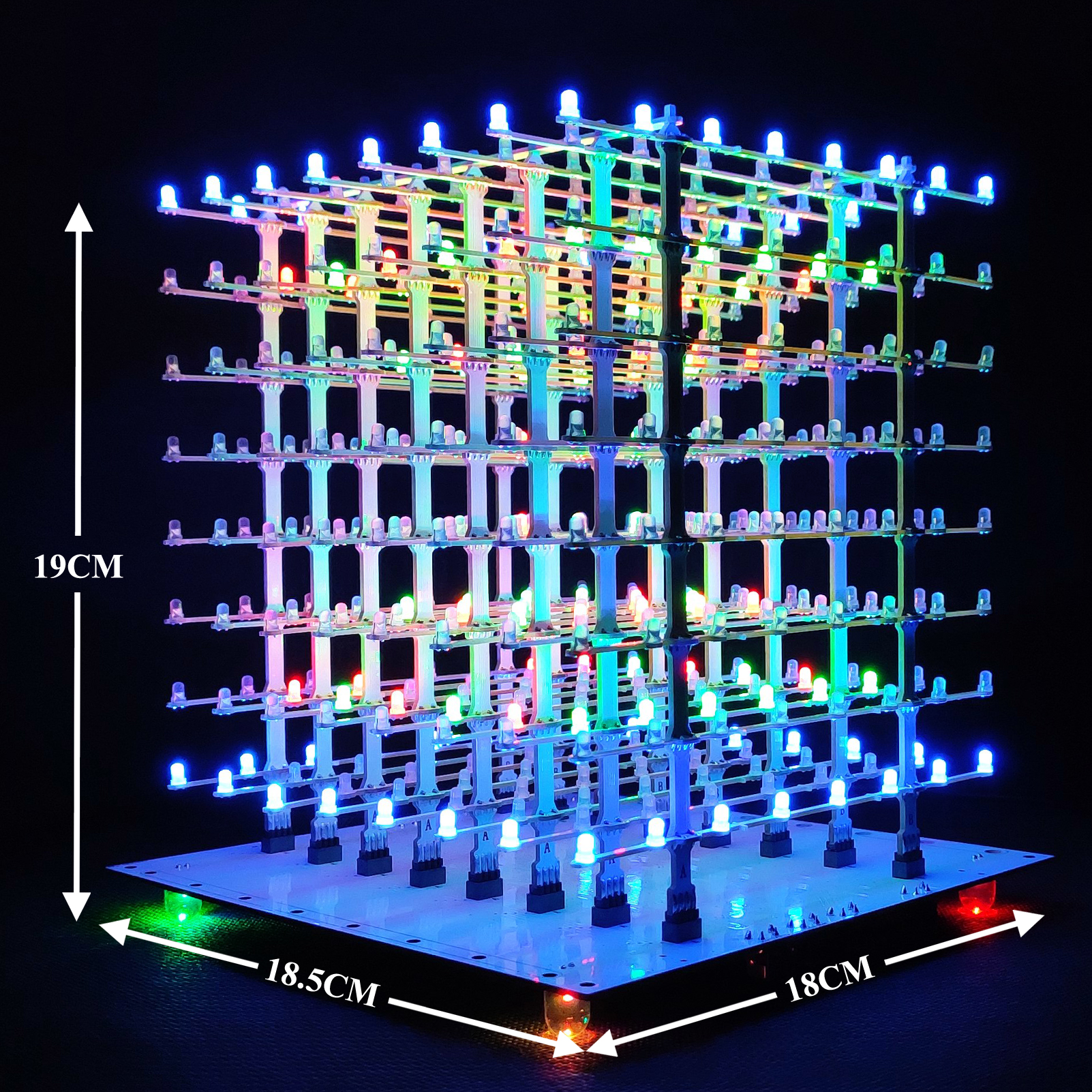

As a new LED CUBE electronic suite, it uses very narrow PCB strips instead of the traditional LED pins, making it easier to construct a neat matrix and avoiding rusting of traditional LED lamp pins. Moreover, it has 64 horizontal PCB and 16 vertical PCB boards welded into 8 LED light strips, which can facilitate maintenance, disassembly and transportation.

Used For:

It is suitable for students' manual electronic manufacturing courses, hands-on welding exercises and electronics enthusiast. Meanwhile, it is also a pretty innovative and meaningful small gift.

It Needs To Be Welded By The Buyer:

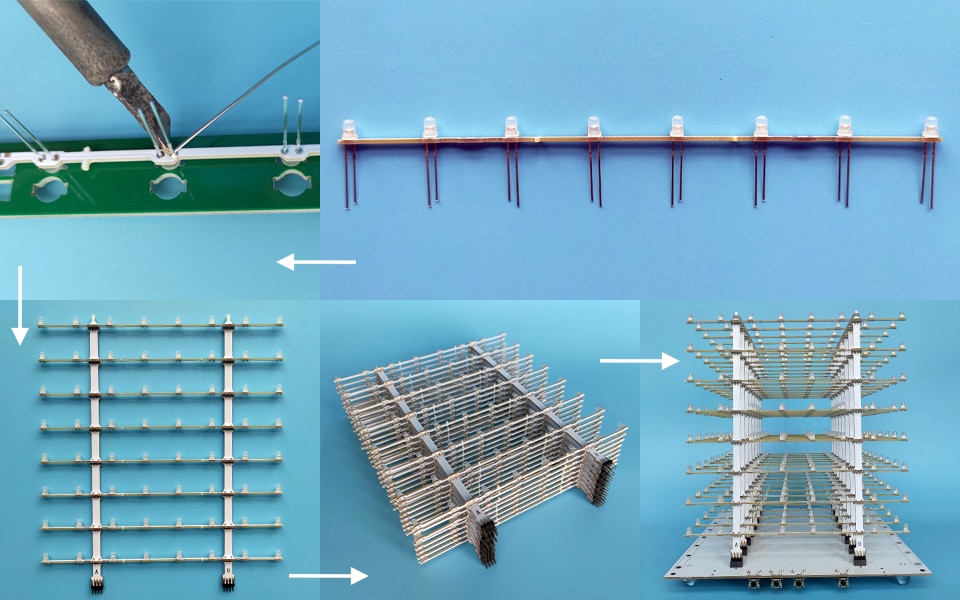

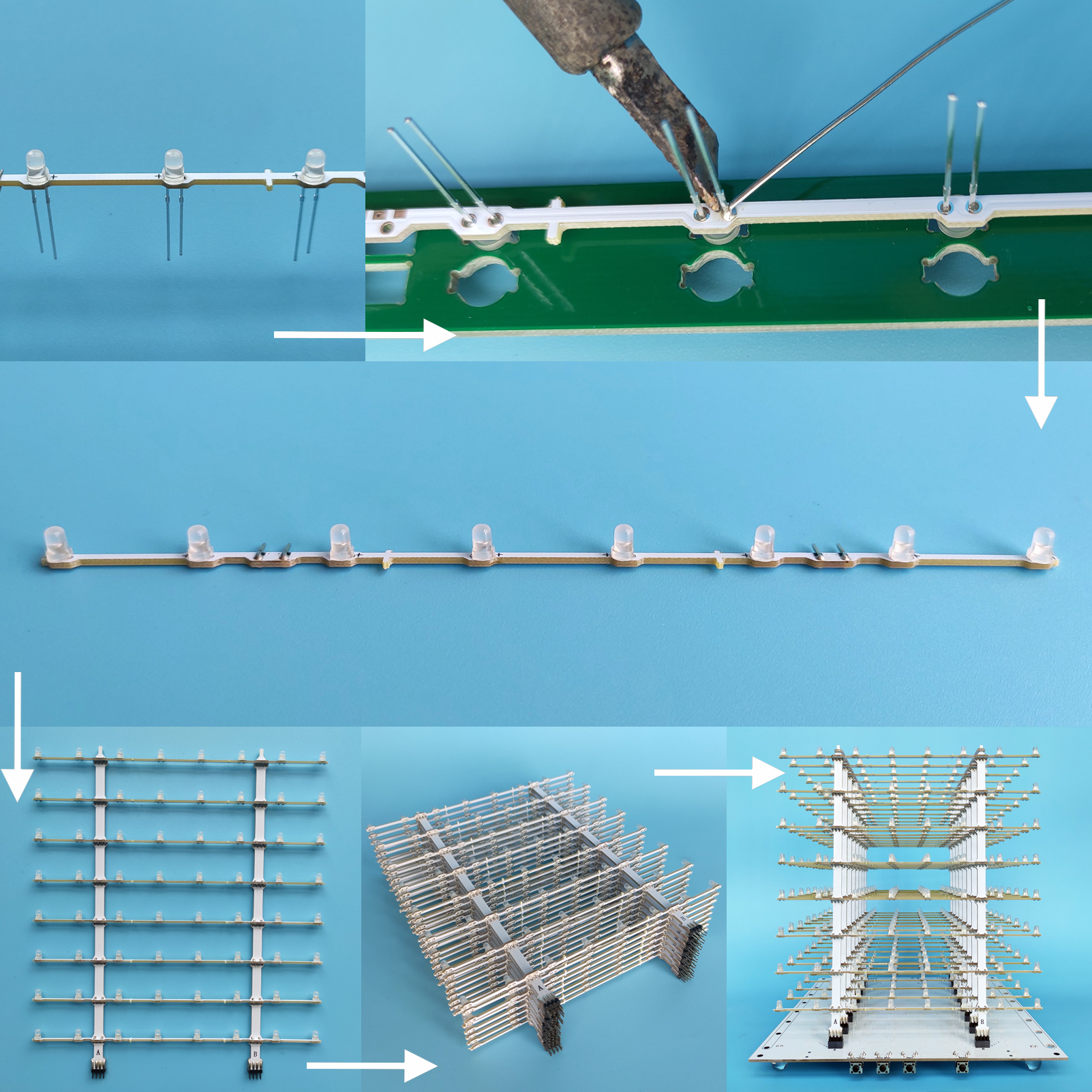

This electronic suite needs to be welded by the buyer him/herself. The buyer needs to have certain basic electronic technology and welding skills. The buyer needs to prepare a welding iron, tin wire and other tools for welding. Its mainboard has been welded and tested. The buyer only needs to weld the LED light and PCB bracket. We have provided such electronic documents as paper installation drawings and HD installation videos.

The following link is a video of the DIY installation process. ​https://youtu.be/zK9_l0m5L5s

Hardware Composition:

Microcontroller: STC12C5A60S2  ​Driver chip: 74HC573 + BR4953.

The masterboard is powered by 5V USB; there are 4 keys on the masterboard to switch animation modes (key functions are reset, start/pause, next animation, loop playback of single animation/loop playback of all animations respectively); the masterboard has a connector for downloading programs.

Displayed Patterns Allowed To Be Modified

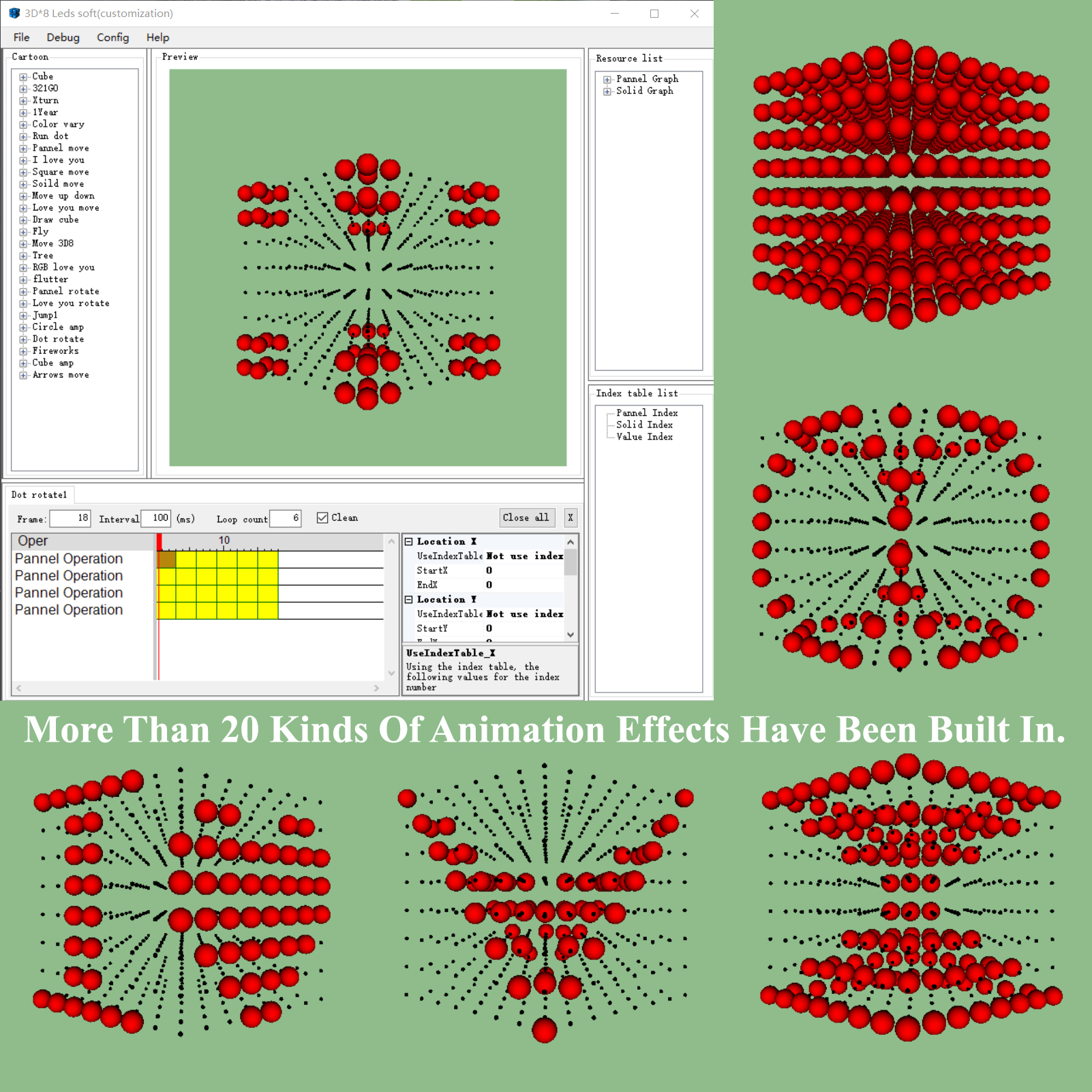

After welded, it can display brilliant and dynamic LED lighting effects and letters when the 5V USB power adapter is connected. Of course, buyers can modify the displayed letters and dynamic effects by themselves and we can also help the buyer modify the displayed contents for free. The dynamic display effects can be modified with 3D software and no C code is required, so it is quite simple. ​The 3D software can be downloaded at the following site: ​https://drive.google.com/file/d/1WbyeRNNXywCkcvxPL4RiWVmmZiQFUROC ​The following link is a video of the animation modification software. ​https://www.youtube.com/watch?v=tGaJr17tRak

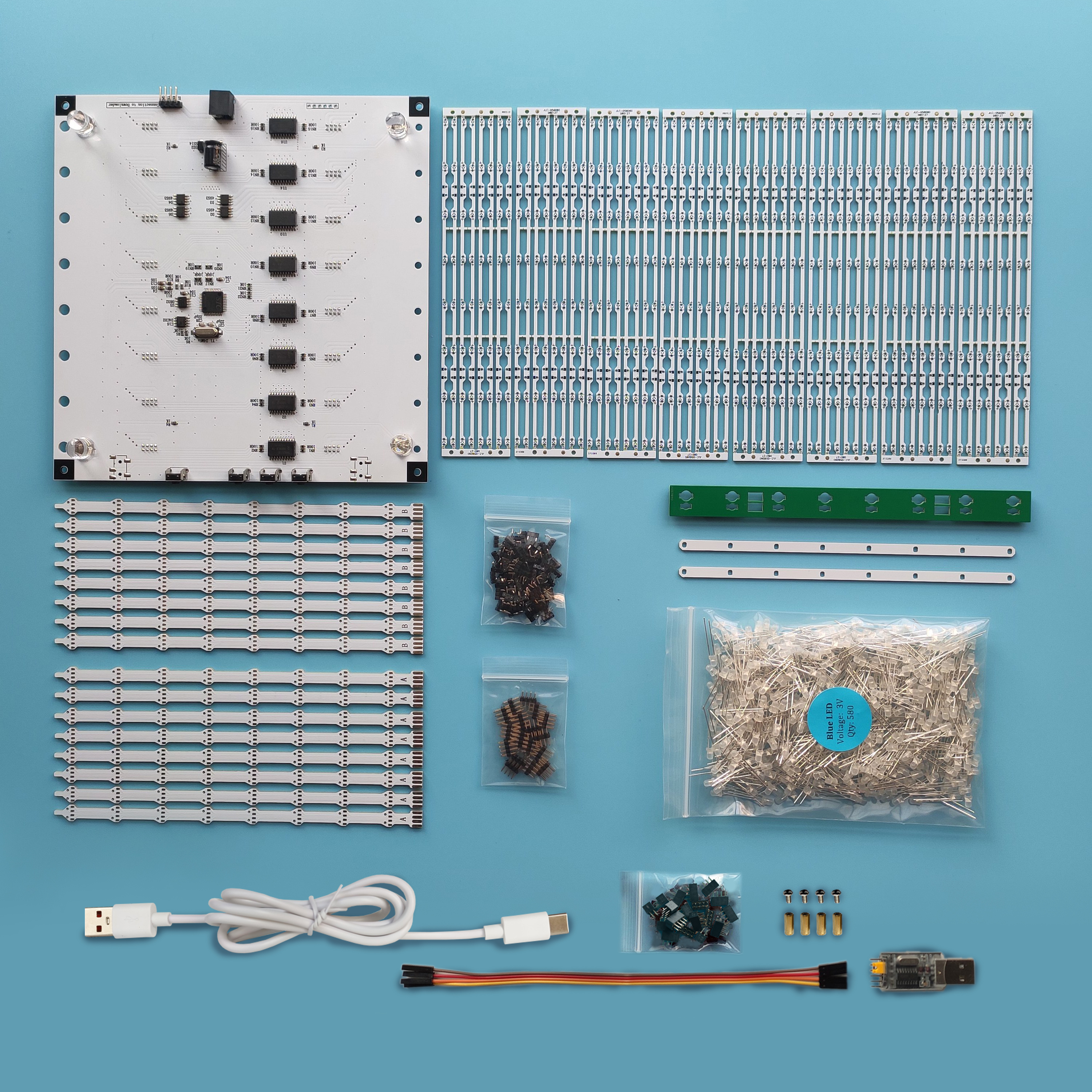

3D8P-MULTI Package Include:

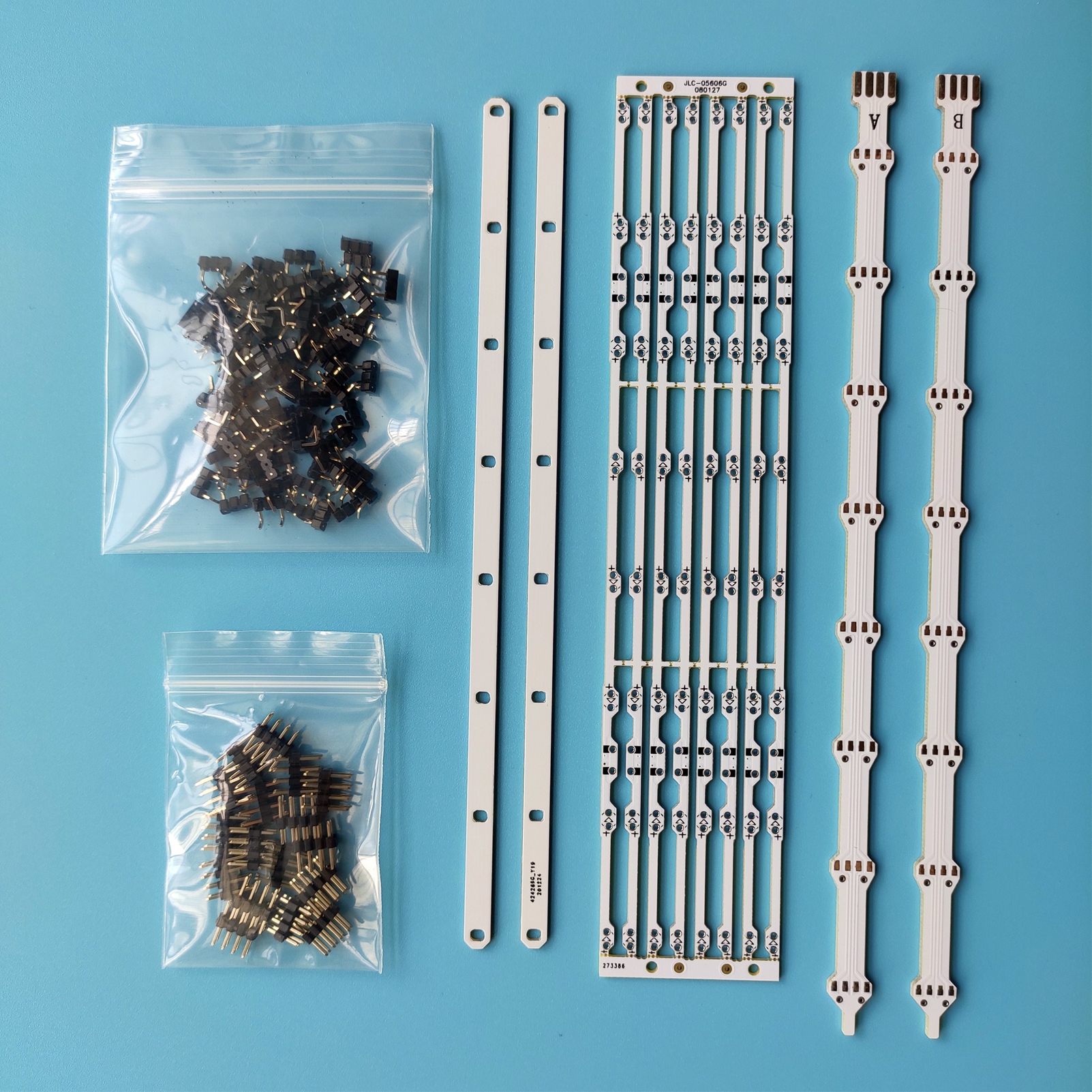

Weld the tested mainboard x1

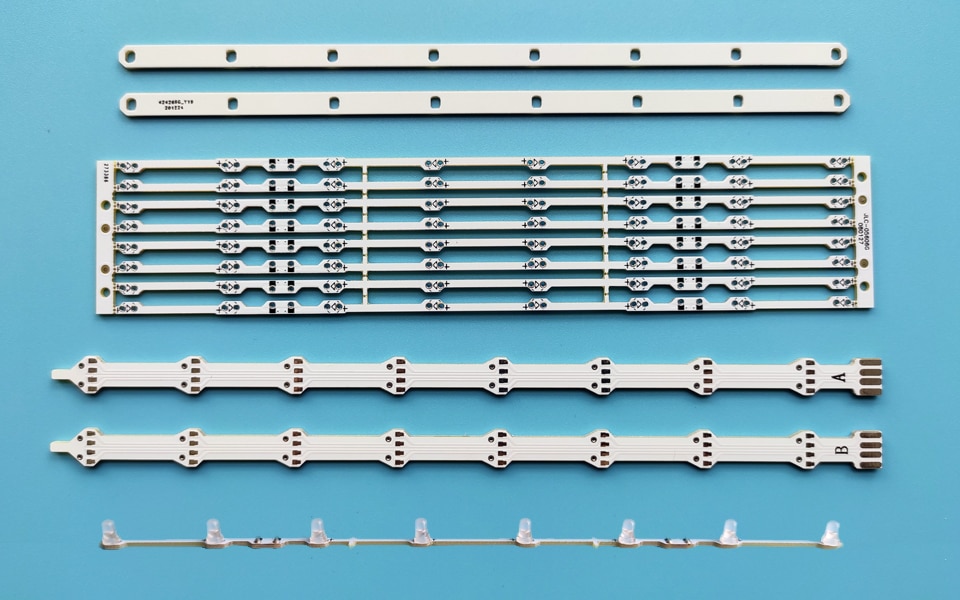

​LED lamp bead PCB x64 ​

Support PCB x16 ​

2P pin header x128 ​

8P pin header x16 ​

LED welding bracket x1 ​

Lamp anchor bracket x2 ​

Program downloader + Dupont line x1 ​

White power cord x1 ​

Paper welding instructions x1 ​

3D8P-MULTI Version: ​

Red LED x170 (Only 144 Used)

​Green LED x170 (Only 144 Used) ​

Blue LED x250 (Only 224 Used)

3D8P-BLUE Package Include:

Weld the tested mainboard x1 ​

LED lamp bead PCB x64 ​

Support PCB x16 ​

2P pin header x128 ​

8P pin header x16 ​

LED welding bracket x1 ​

Lamp anchor bracket x2 ​

Program downloader + Dupont line x1 ​

White power cord x1 ​

Paper welding instructions x1 ​

Blue LED x580 (Only 512 Used)

Professional Services:

We have been engaged in the design and production of Led Cube for 9 years. We have designed various sizes of led cube as well as other electronic DIY products. ​We have professional engineers for technical support to assist buyers in solving problems encountered during installation. Buyers can leave us a message if they have any doubt during operations. We can provide lifetime technical support services for our DIY products! Moreover, we can also provide many other electronic suites. If interested, you can search for our brand name: iCubeSmart.
