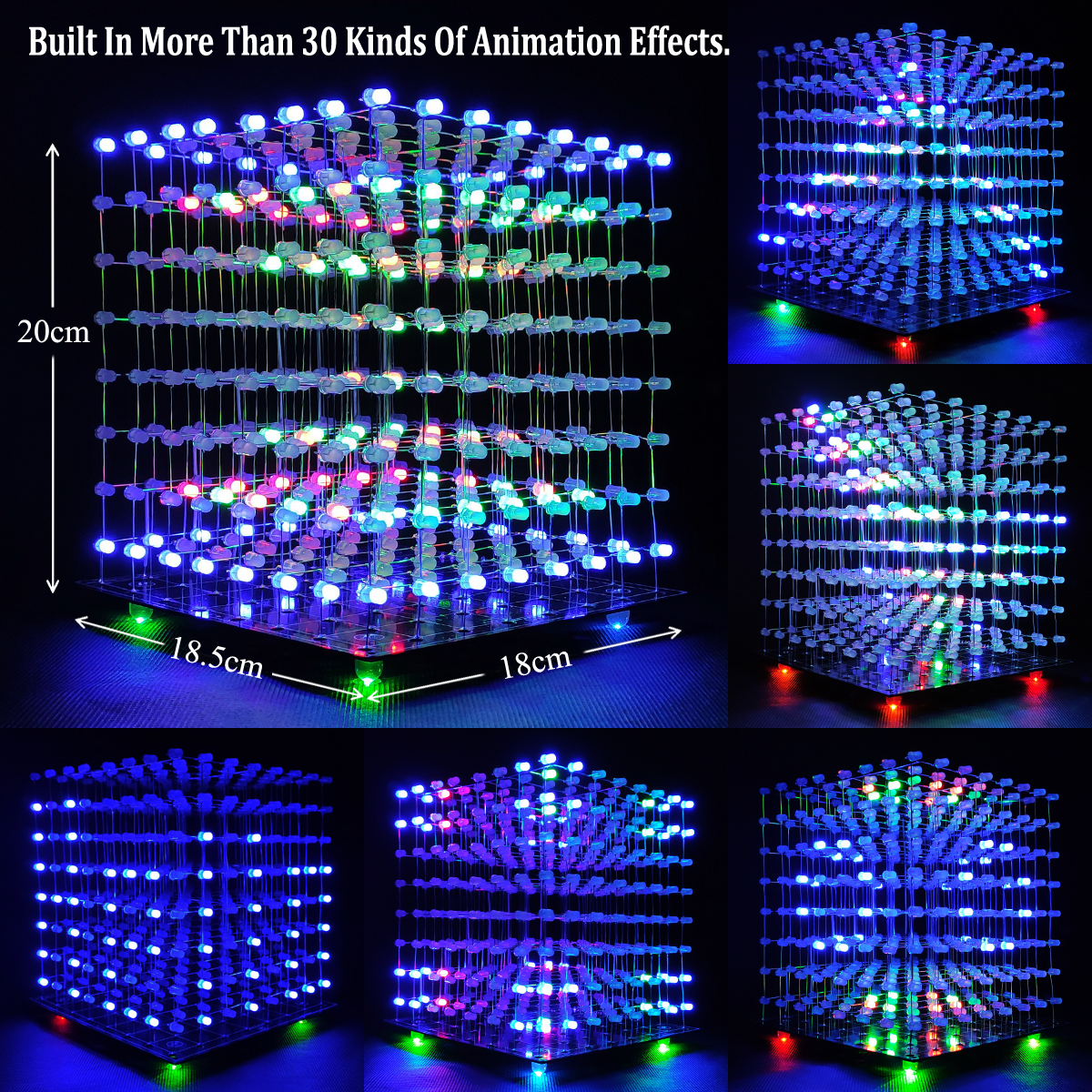

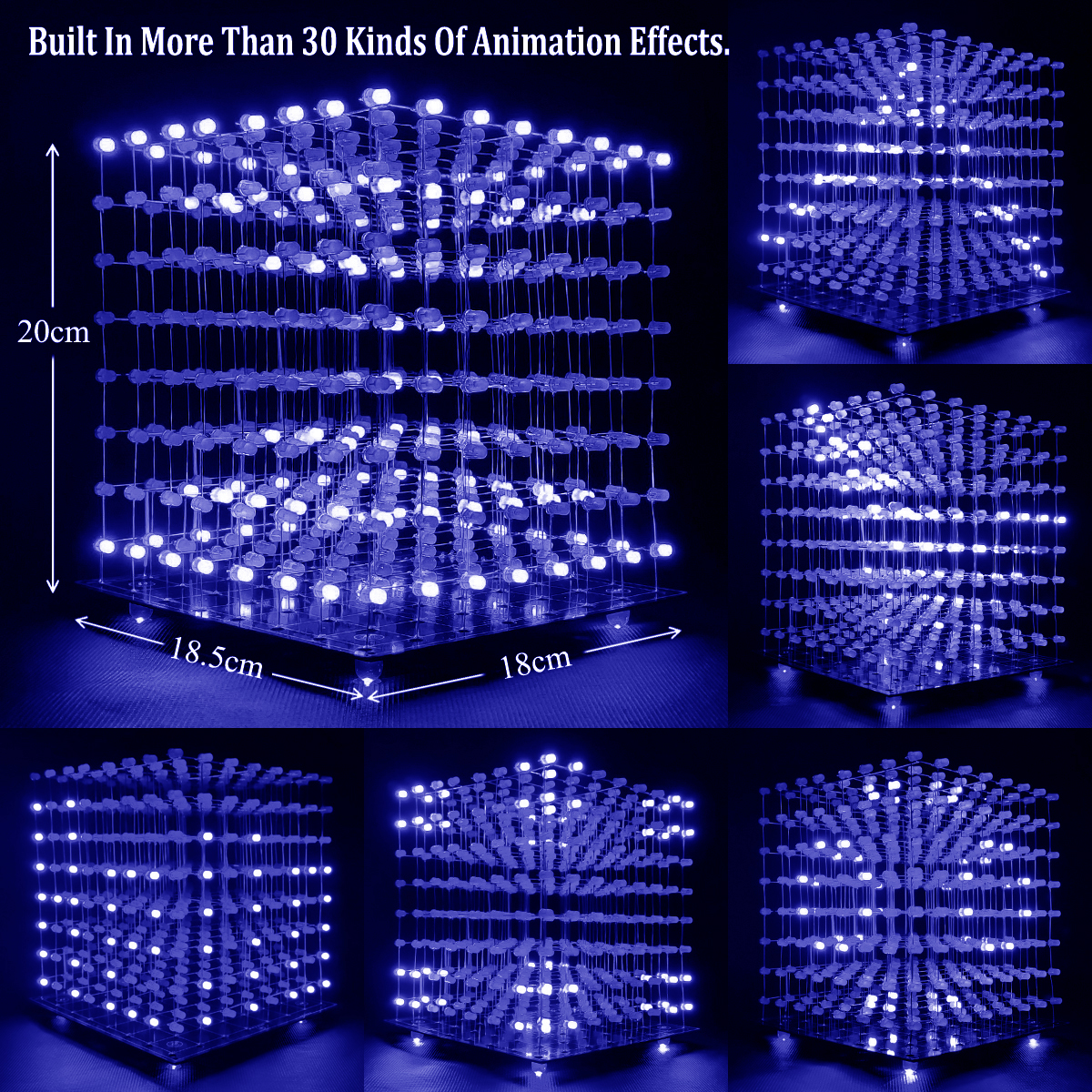

iCubeSmart 3D8C Led Cube Diy Electronic Kits Teenagers Learning Soldering Project With 3D Editing Software [3D8C]

Used For:

It is suitable for students' manual electronic manufacturing courses, hands-on welding exercises and electronics enthusiast. Meanwhile, it is also a pretty innovative and meaningful small gift.

It Needs To Be Welded By The Buyer:

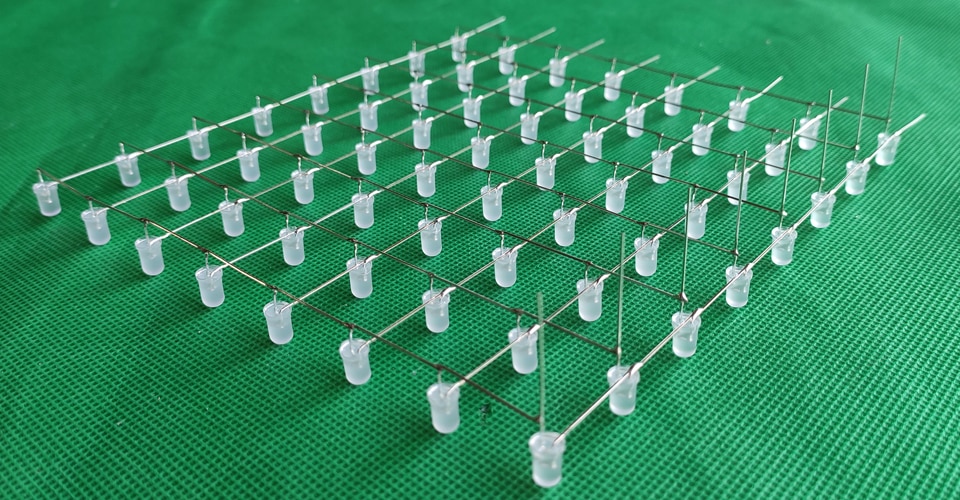

The PCB main board in this package has been well soldered and tested, and users only need to solder the LED lamp themselves, so users are only required to have a simple electronic technology foundation and soldering ability. There are 64 circular holes on the main board to fix the LED and make welding easier. We provide paper welding installation instructions.

The following link is a video of the DIY installation process. ​https://youtu.be/EykwnRKqLSc

Hardware Composition:

Microcontroller: STC12C5A60S2  ​Driver chip: 74HC573 + BR4953, the horizontal 8 layers are positive electrodes and the vertical 64 columns are negative electrodes.

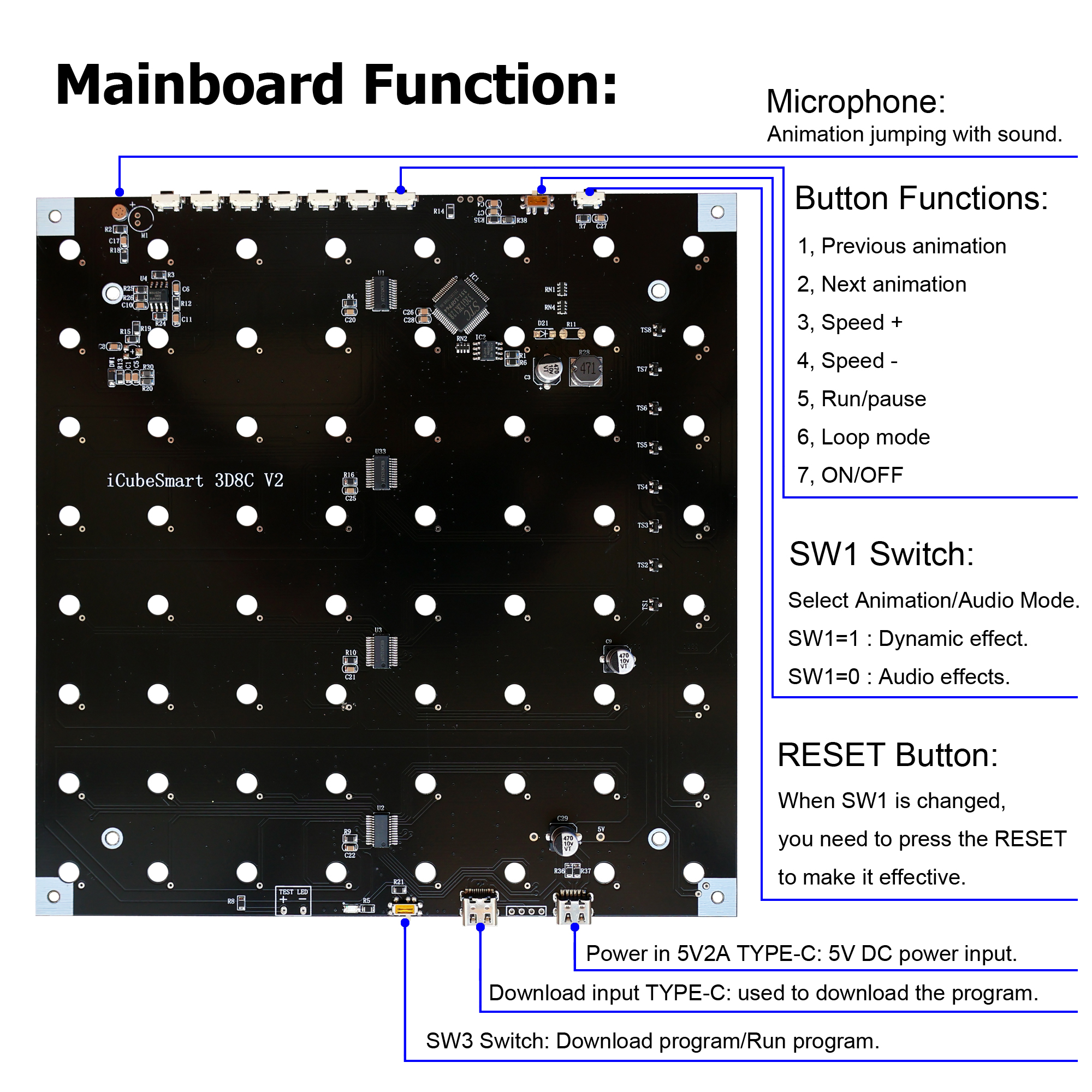

The masterboard is powered by 5V USB; there are 4 keys on the masterboard to switch animation modes (key functions are reset, start/pause, next animation, loop playback of single animation/loop playback of all animations respectively); the masterboard has a connector for downloading programs.

Displayed Patterns Allowed To Be Modified

To enable every ordinary person to modify the displayed pattern (rather than a professional electronic engineer), we have created a 3D animation software on the PC computer. This is a quite simple software, in this software, you can use the mouse to light up or turn off each light on the light cube. After making the pattern with the mouse, package the coordinates for the movement of the pattern, the pattern will move; or, you can also use the mouse to make several 3D patterns, and then let these patterns display in sequence, thus forming the effect of 3D animation, which is much simpler than using C language to modify the displayed pattern. ​ ​Users can obtain and try this 3D animation software in electronic files. ​https://drive.google.com/file/d/1a62NuU_QtyUHD0oo4XSAAWj_dZoWQHCB ​The following link is a video of the animation modification software. ​https://www.youtube.com/watch?v=tGaJr17tRak

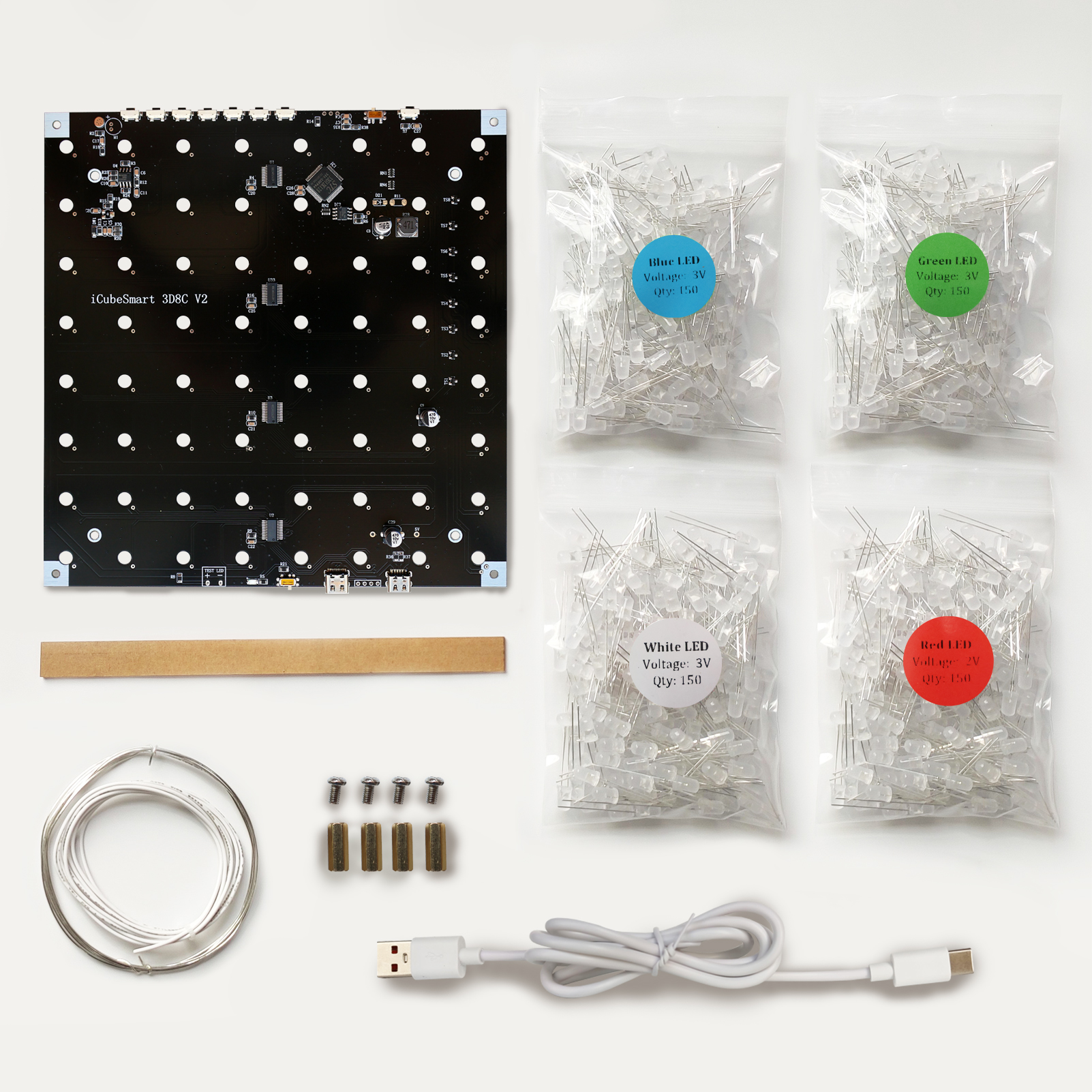

Package Include:

1, Soldered and tested masterboard (size: 18*18.5cm) x1 ​

2, USB download tool x1

​3, Micro USB cable x1  ​

4, 0.8mm tinned iron wire x1  ​

5, White electronic line x1

6, 2mm acrylic strip (used for bending LED anode) x1  ​

7, Foggy highlight 5mm circular LEDs, each led is provided for standby. ​

3D8C-MULTI Options: 170 Red Leds, 170 Green Leds, 250 Blue Leds (144 Red leds used, 144 Green leds used, 224 Blue leds used, for the arrangement method of red, green and blue LEDs, please refer to our welding instruction document. ) ​

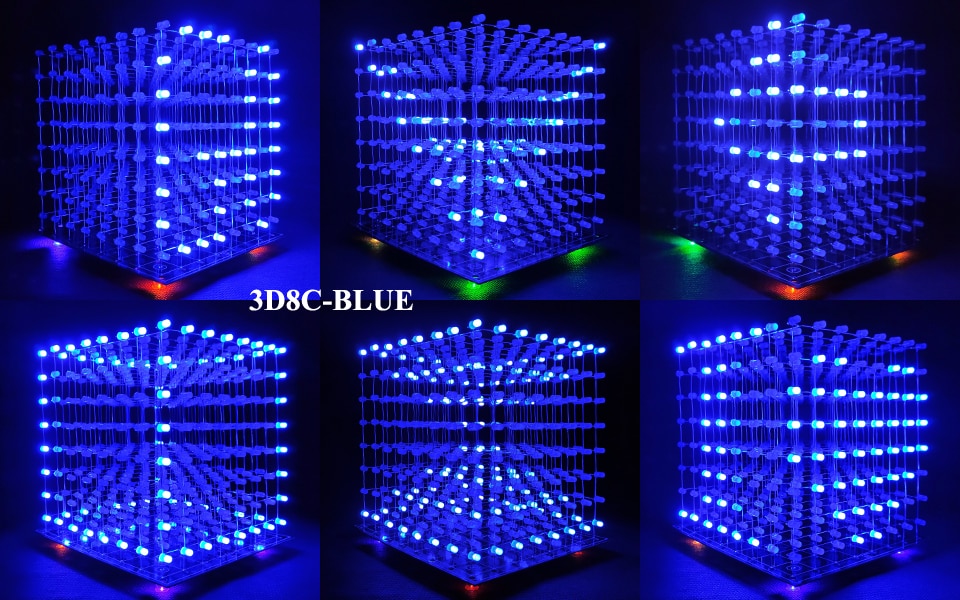

3D8C-BLUE Options: 580 Blue Leds (512 Blue leds used) ​8, Paper welding instructions

Our Efforts Are Only To Make It Easier For Buyers To Succeed:

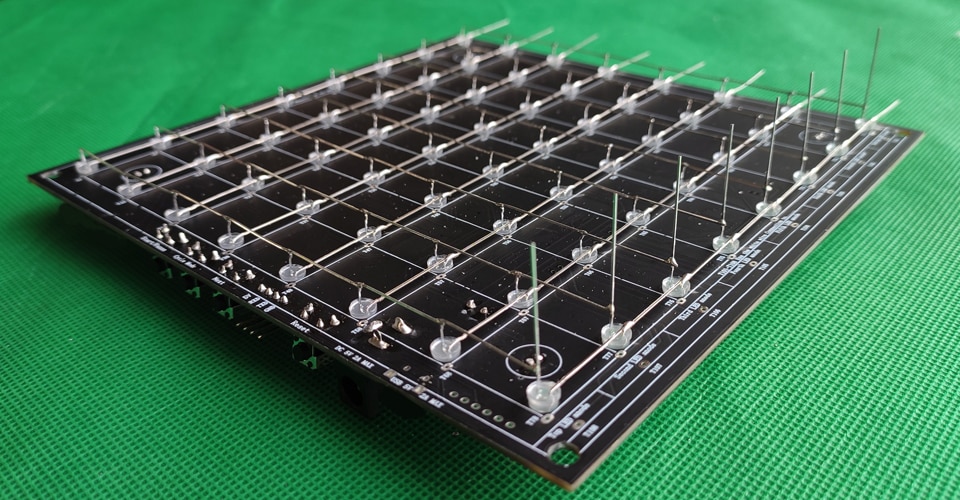

We have made a lot of efforts to make the installation as simple as possible for the buyer, and the installation is successful. ​Upon receipt of the goods, you only need to weld the LEDs on the paper welding instructions and plug in the 5V usb power supply to display brilliant lighting effects. ​1, There are 64 circular holes on the main board to fix the LED and make welding easier.

2, We tested the motherboard twice, using the AOI automatic test for the first time, and using the cube test platform for the simulation test for the second time.

3, In order to reduce the reverse leakage of the LED due to too long soldering time, we added 64 protection diodes on the motherboard.

4, As a matter of fact, only 512 leds will be used, but to prevent damage to leds during manufacture, each led is provided for standby. ​ ​5, We provide paper manuals in English by default, and we also have manuals in Japanese, German, Spanish, and Italian. Buyers can leave us a message if necessary.

Professional Services:

We have been engaged in the design and production of Led Cube for 9 years. We have designed various sizes of led cube as well as other electronic DIY products. If you receive the product and do not know how to make it, or if there are fewer components for any reason, or if you need our help to modify the displayed animation, you can leave us a message. We offer life-long technical support services for our DIY products.
