Full Color 8x8x32 Led Cube:

This is an 8x8x32 LED CUBE composed of 2048 three-in-one (red, green and blue) lamp beads. Each lamp bead has four pins, and each LED can give out full-color light. It has more colors than the LED CUBE of monochrome LEDs. ​More than 30 kinds of brilliant animation effects have been built into the masterboard. Users can display the animation after welding and plugging in the 5V USB power supply. ​The following is the video effect of the 8x8x32RGB finished product:

Product size:

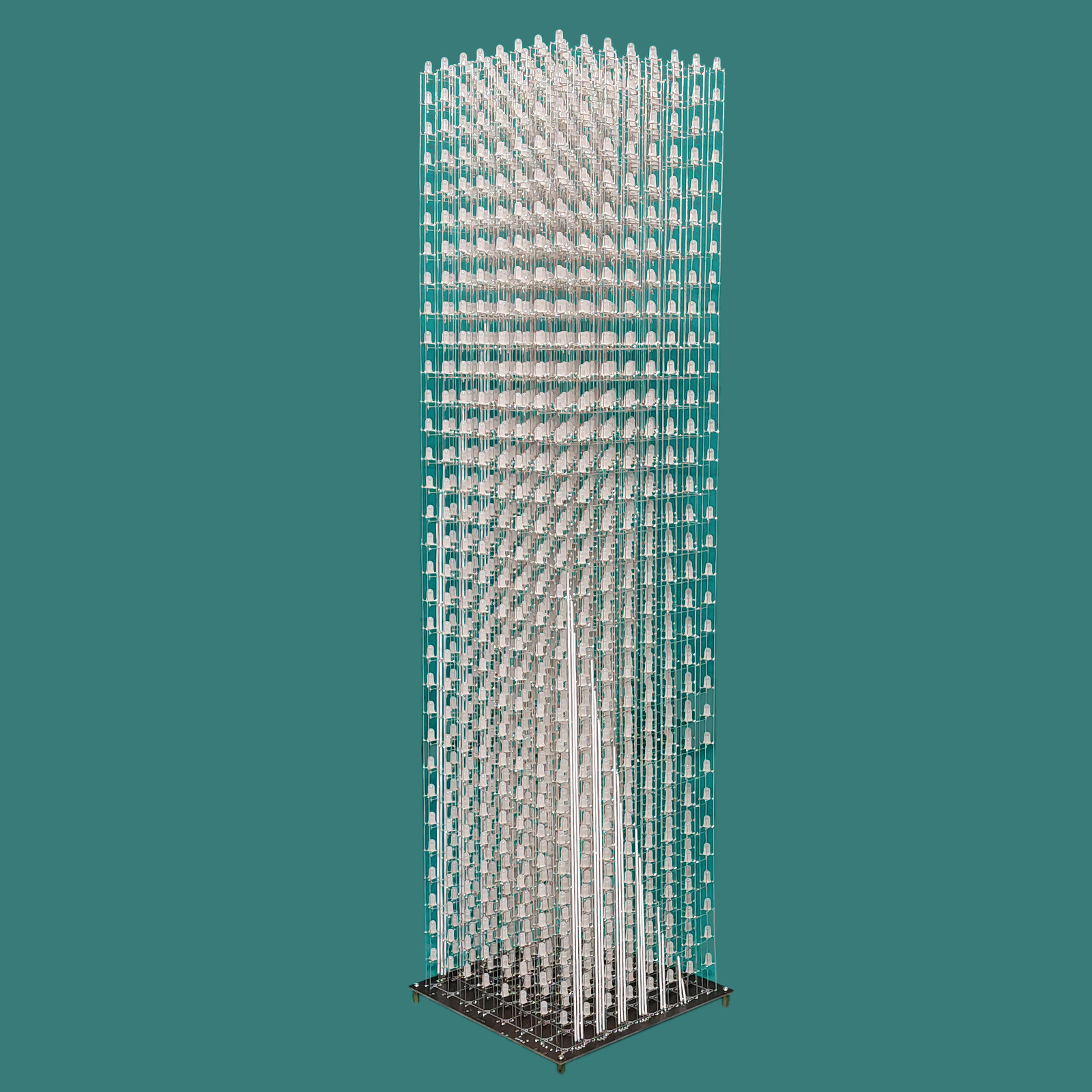

The finished product is 18x18.5x72cm in dimensions after welded, and the distance between the lamps is 2.2cm.

Used For:

It is suitable for students' manual electronic manufacturing courses, hands-on welding exercises and electronics enthusiast. Meanwhile, it is also a pretty innovative and meaningful small gift.

It Needs To Be Welded By The Buyer:

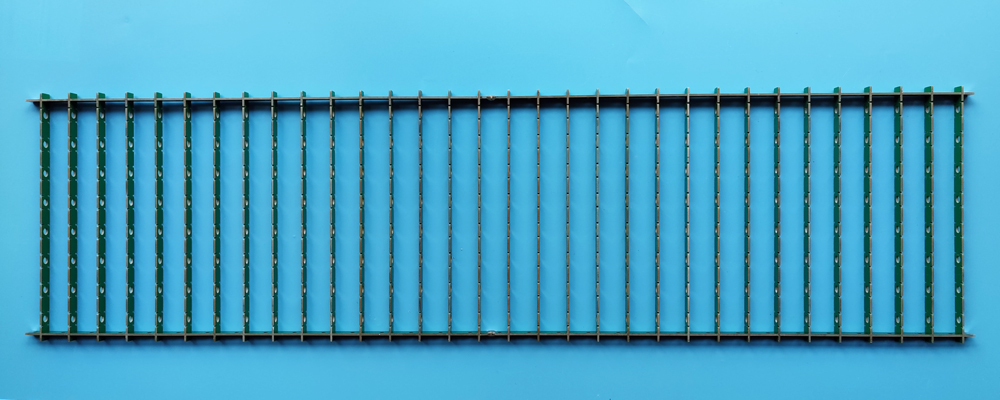

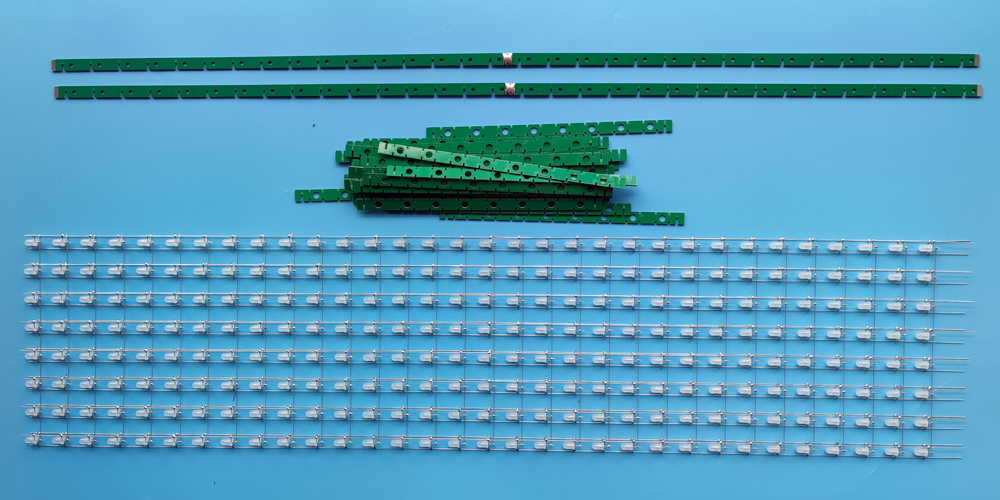

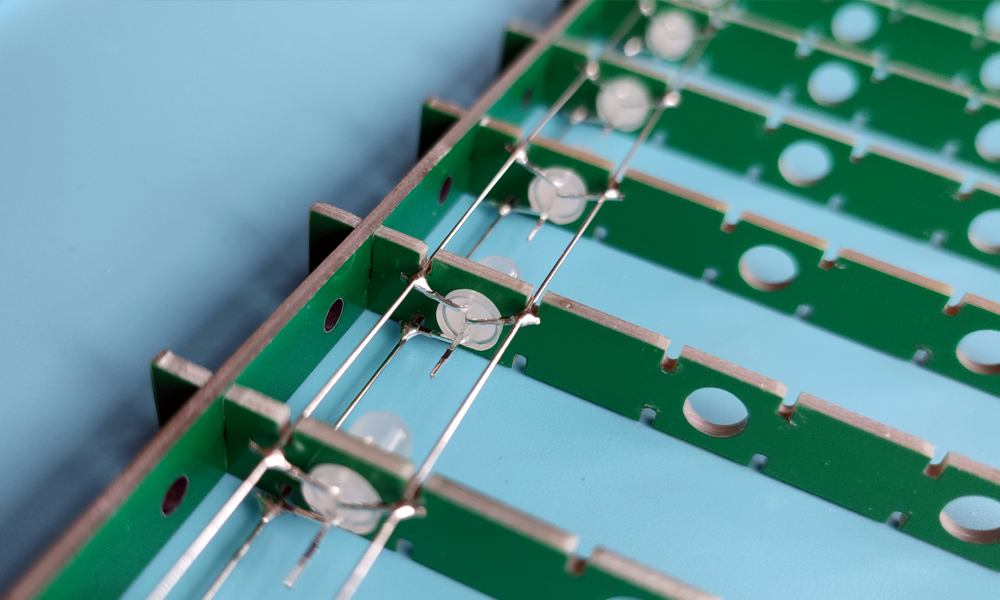

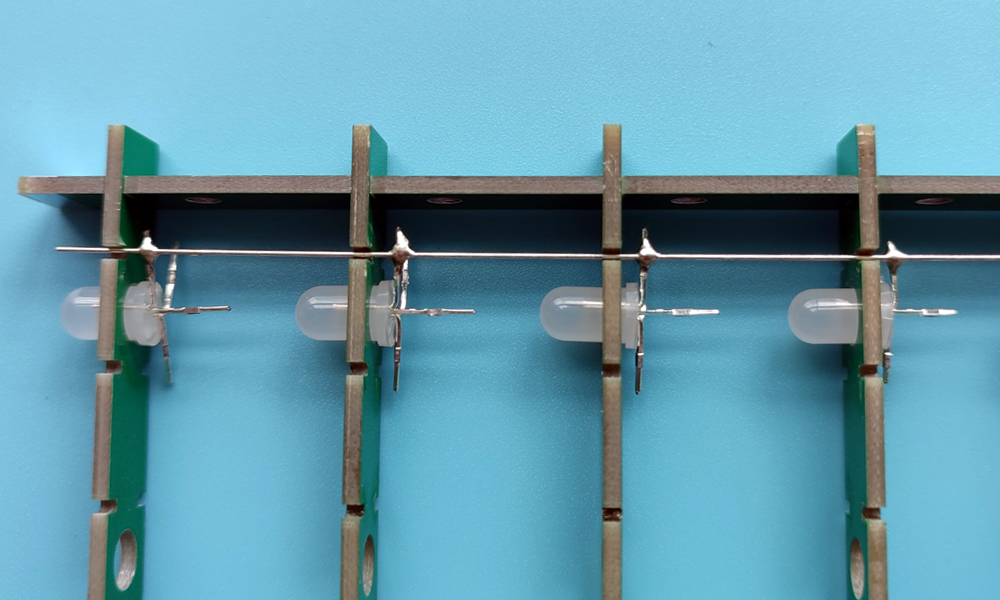

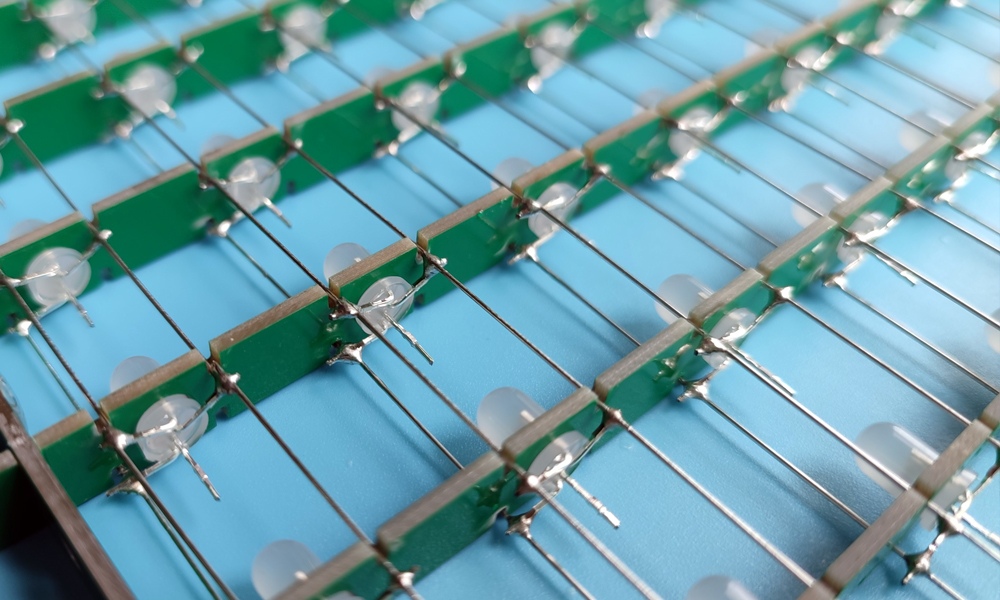

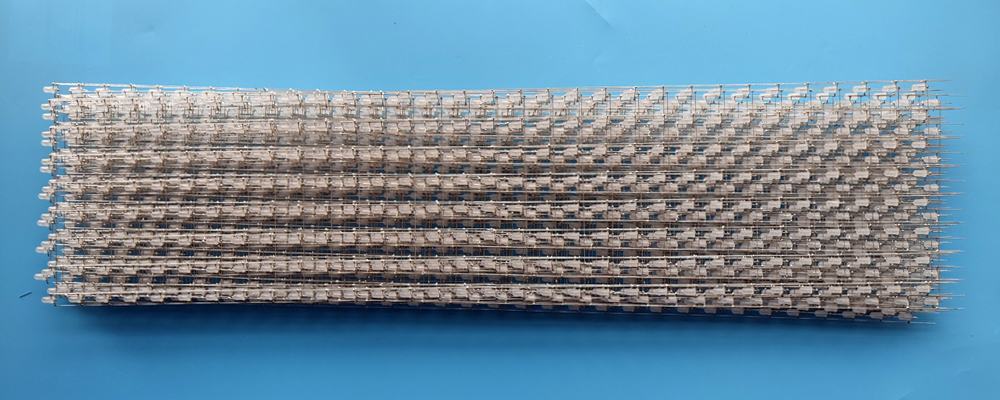

As required, users should weld 2048 RGB lamps on their own and they also need to be skilled in welding technology. We have designed a fixed LED support to facilitate and better LED welding. Users only need to weld step by step according to the printed installation instructions;

Please download the latest 8x8x32RGB electronic information from the Google web disk address:
https://drive.google.com/file/d/1C4sHJwkZrgqJ9d1LNJRxpVCTqoDQC_fc

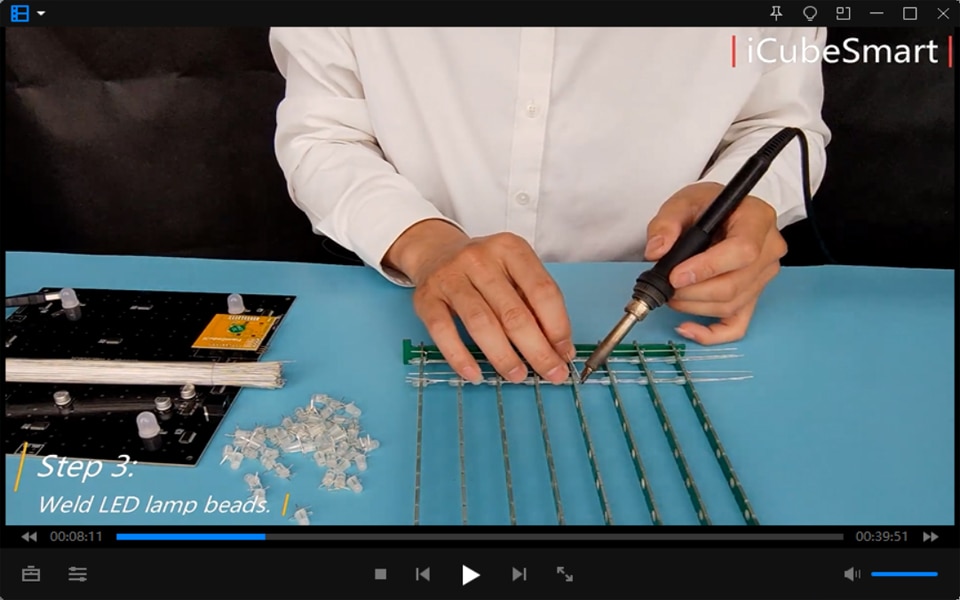

The installation methods of 8x8x32 and 8x8x8 are very similar, you can refer to the video welding of 8x8x8:

https://youtu.be/5jirZGTIkGA

Hardware Composition:

It is controlled by an STM/GD/APM/32F103RET6 single chip microcomputer (SCM) and LED is driven by an MBI5024 constant current chip. ​Its main board is welded and tested. The size of the main board is 18x18.5cm. ​The horizontal 32 layers are positive electrodes and the vertical 192 columns are negative electrodes.

The masterboard is powered by 5V USB; there are 7 keys on the masterboard to switch animation modes;

Professional Services:

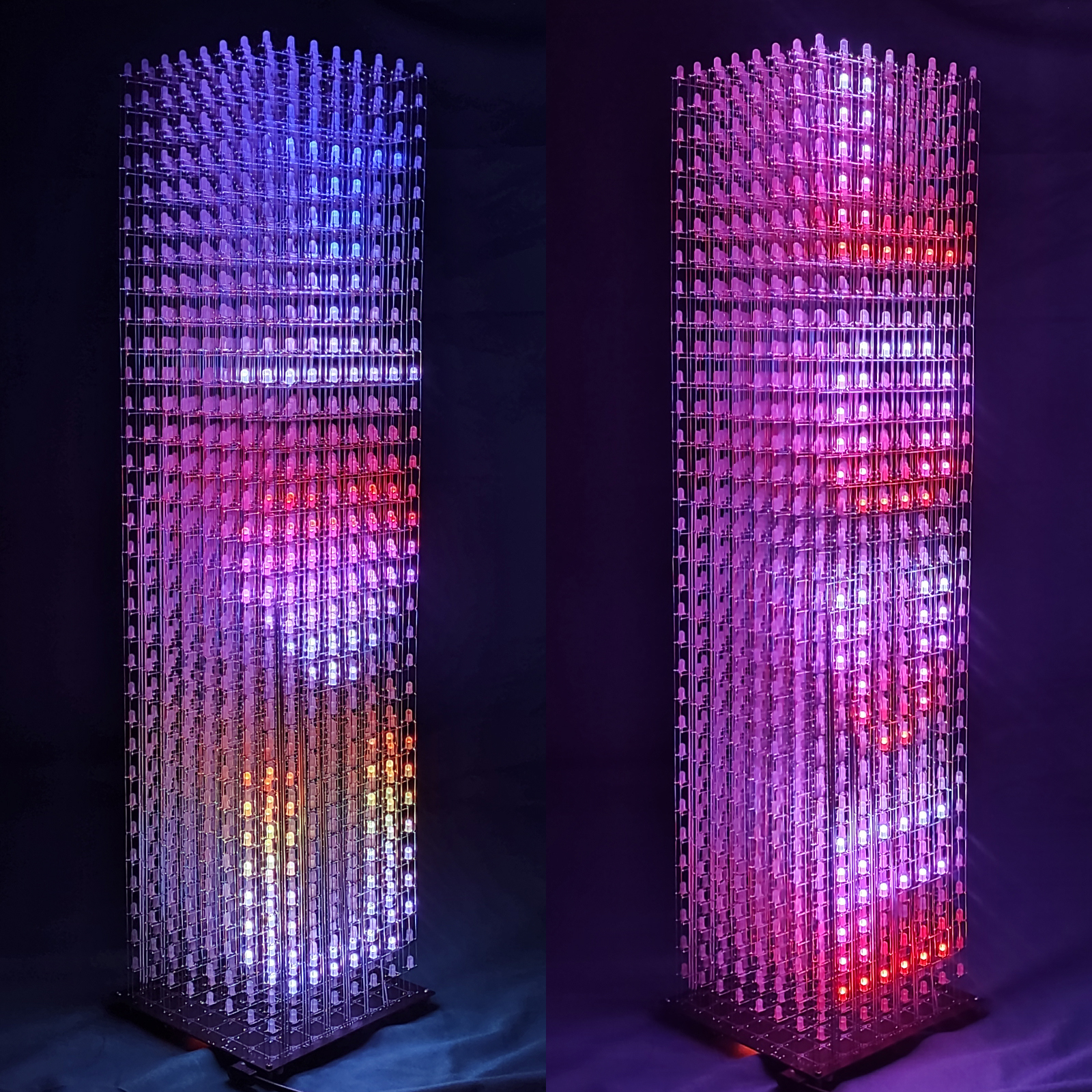

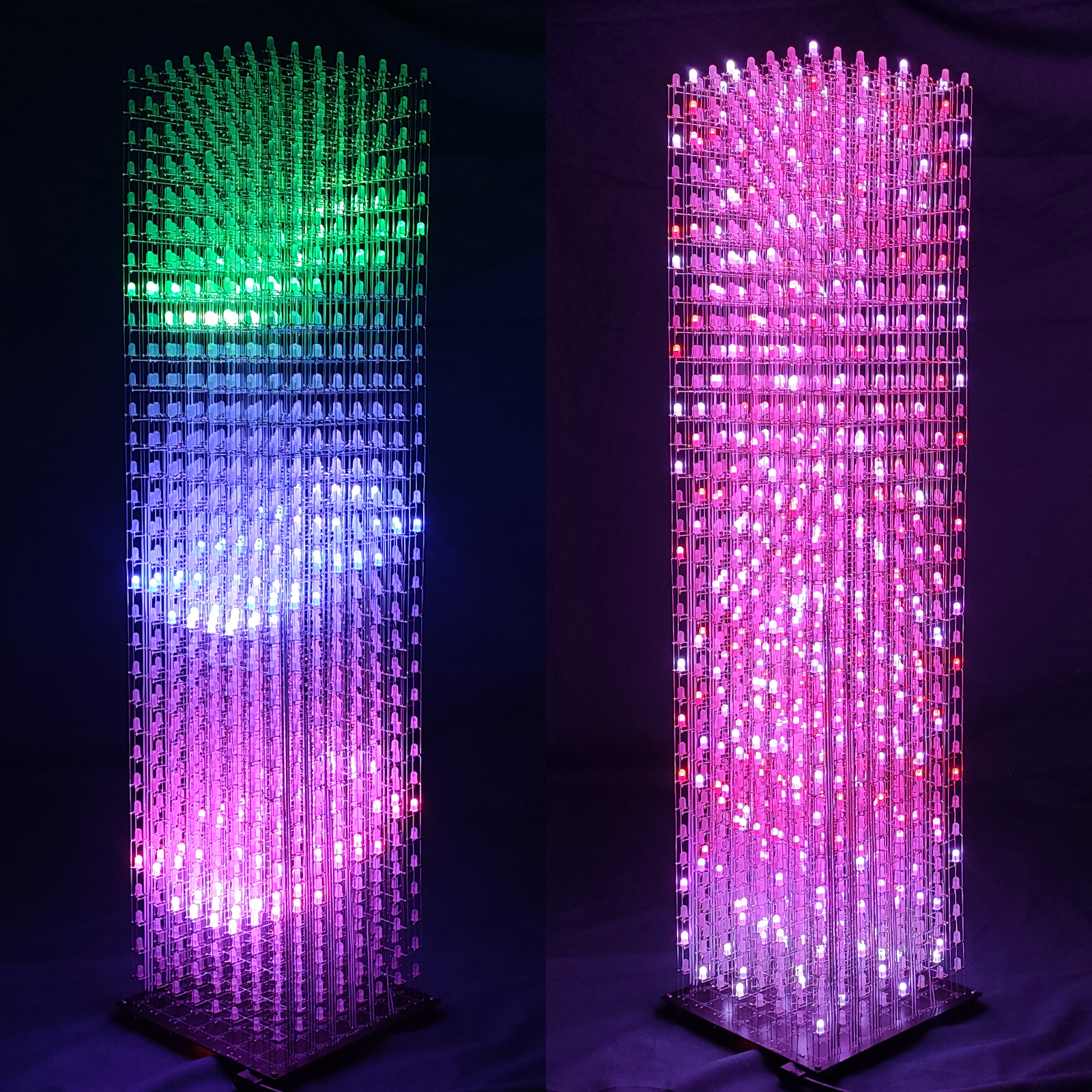

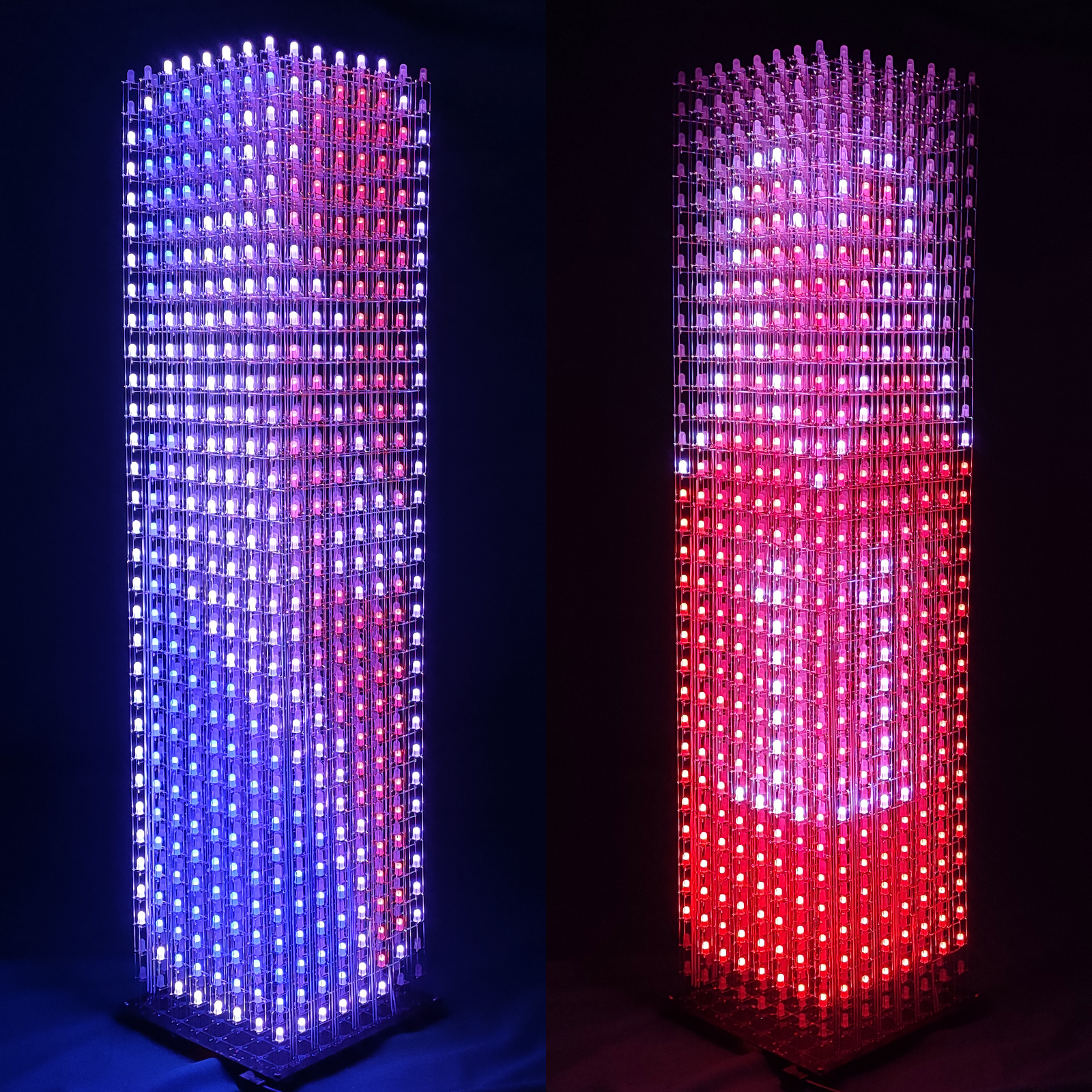

We have been engaged in the design and production of Led Cube for 9 years. We have designed various sizes of led cube as well as other electronic DIY products. If you receive the product and do not know how to make it, or if there are fewer components for any reason, or if you need our help to modify the displayed animation, you can leave us a message. We offer life-long technical support services for our DIY products. ​ ​The following are some finished pictures:

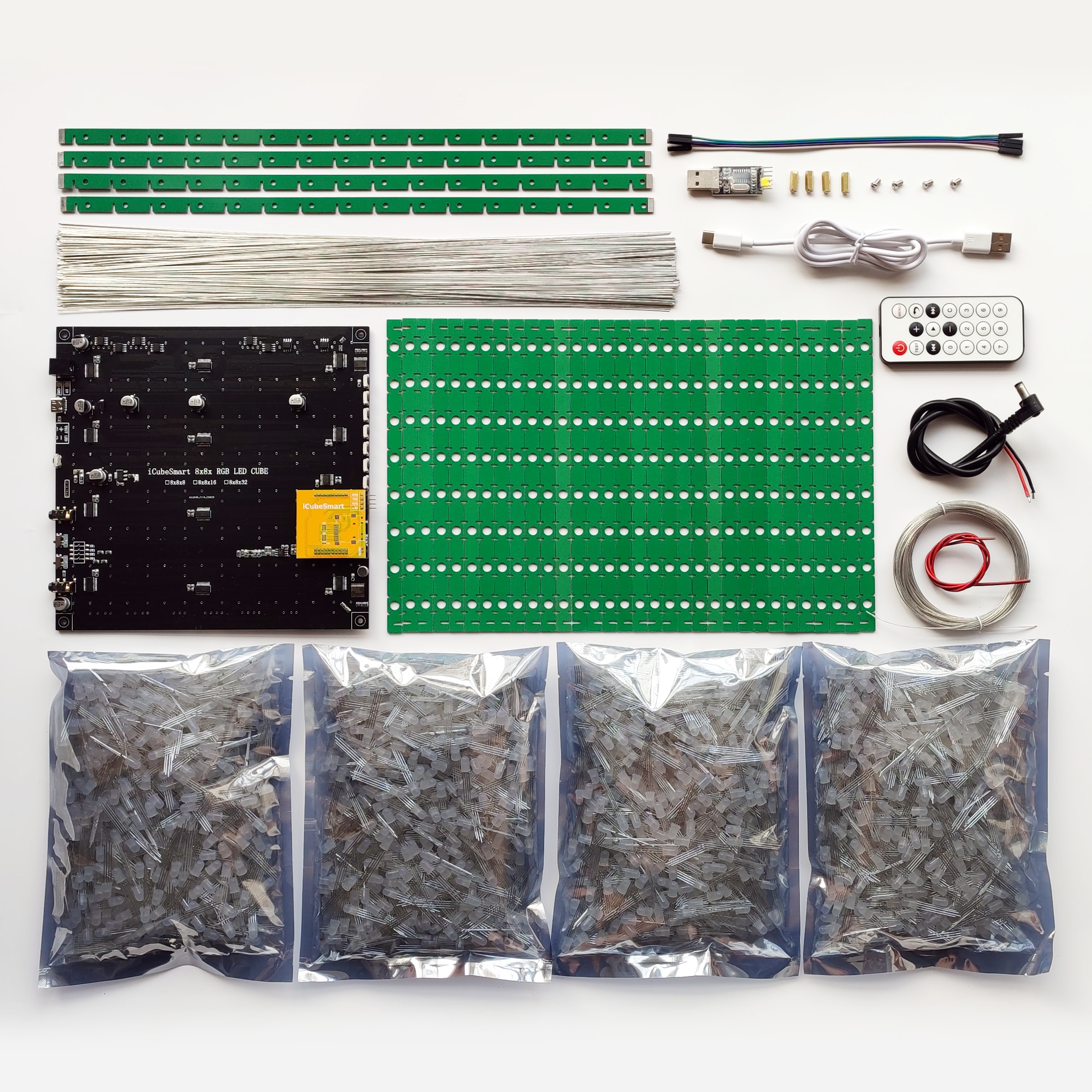

3D8RGB-KIT Option Package Include:

The suite includes such accessories as follows: ​

1. 5mm RGB LED x2200 pcs (2048 leds used); ​
2. Welding support x1 set (36 green PCBs); ​
3. 0.5mm (diameter), 36cm-long fine tinned iron wire x580 pcs(544 used); ​
4. Welded and tested mainboard (black) x1; ​
5. Control panel (yellow) x1; ​
6. TYPE-C cable x1; ​
7. USB-DC power cable x1;
8. Red and black wire (for testing LED) x1
9. Wire (LED positive wire) x1
10. Downloader + DuPont line x1
11. Copper post + screw x4
12. Remote control x1
