Full Color 8x8x8 Led Cube:

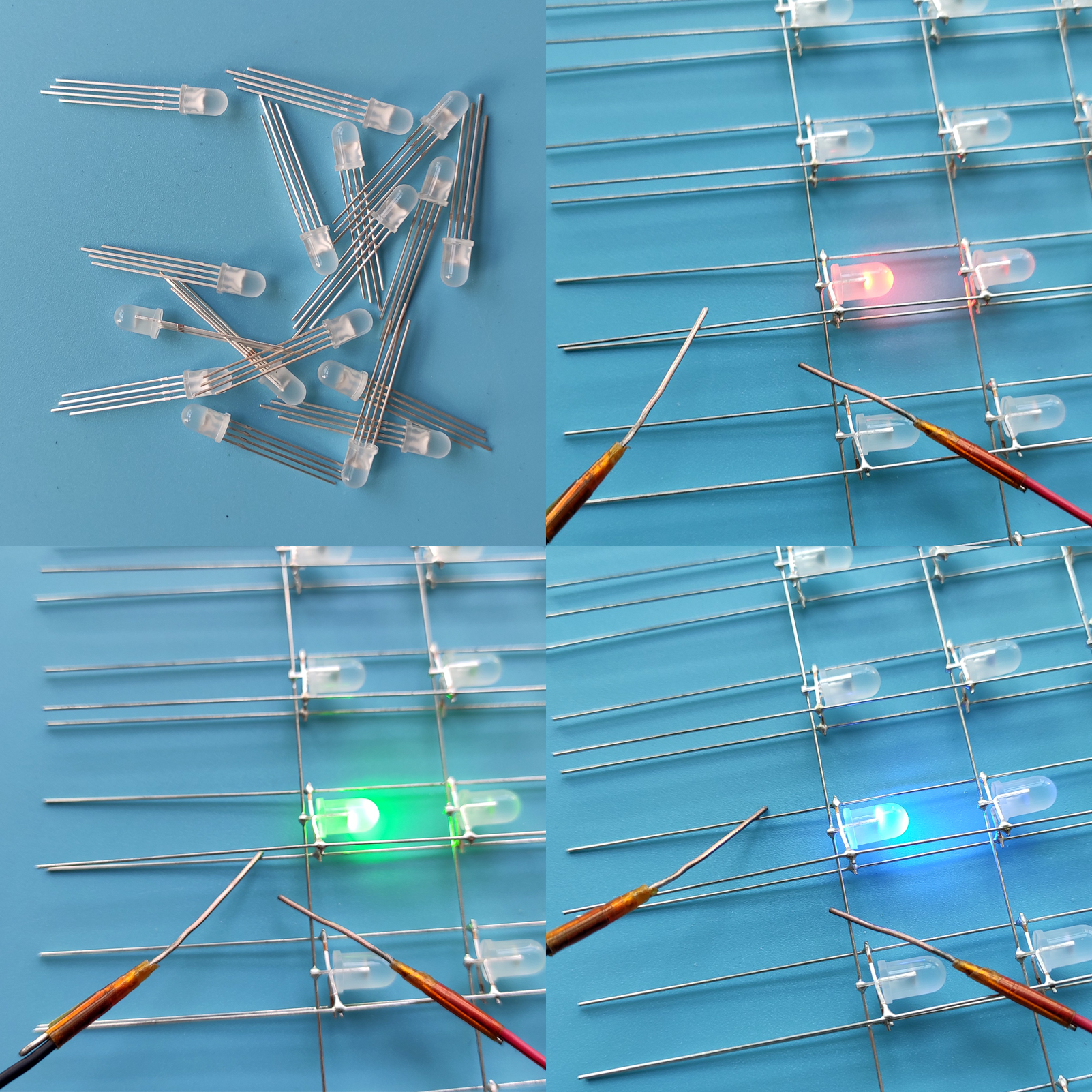

This is an 8x8x8 LED CUBE composed of 512 three-in-one (red, green and blue) lamp beads. Each lamp bead has four pins, and each LED can give out full-color light. It has more colors than the LED CUBE of monochrome LEDs. More than 30 kinds of brilliant animation effects have been built into the masterboard. Users can display the animation after welding and plugging in the 5V USB power supply. The following is the video effect of the 3D8RGB finished product:

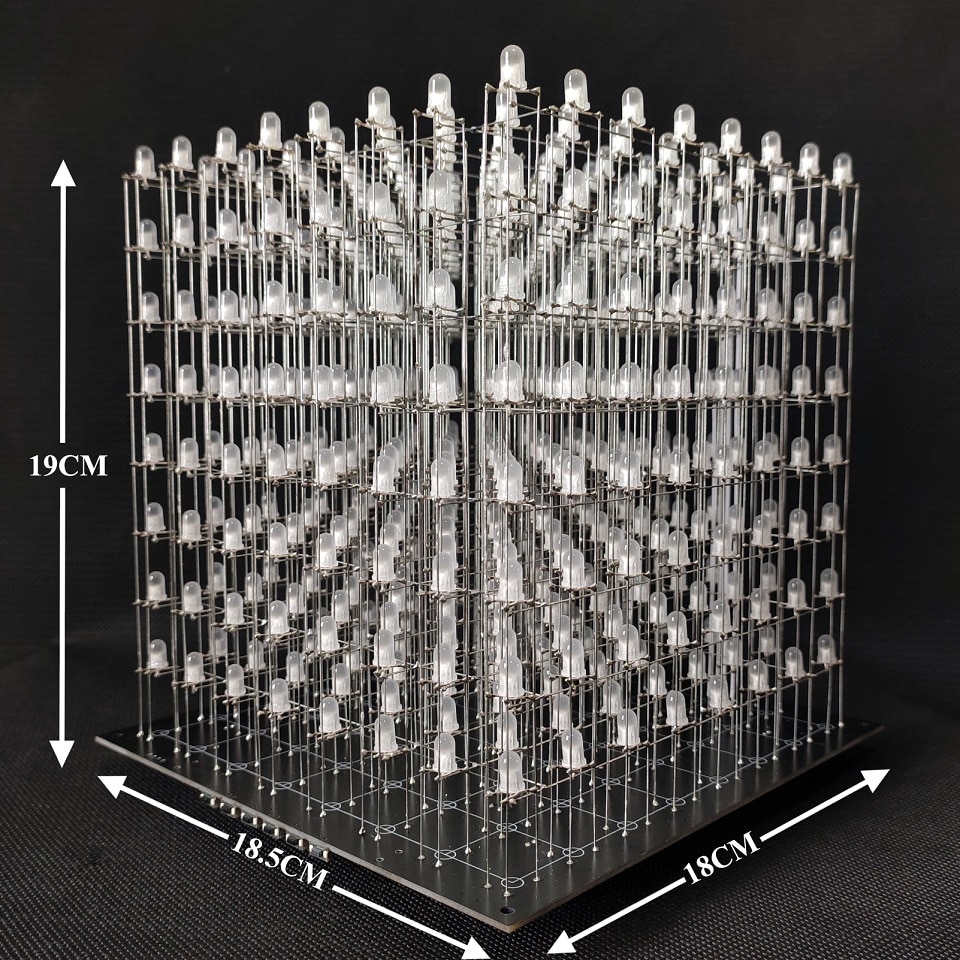

Product size:

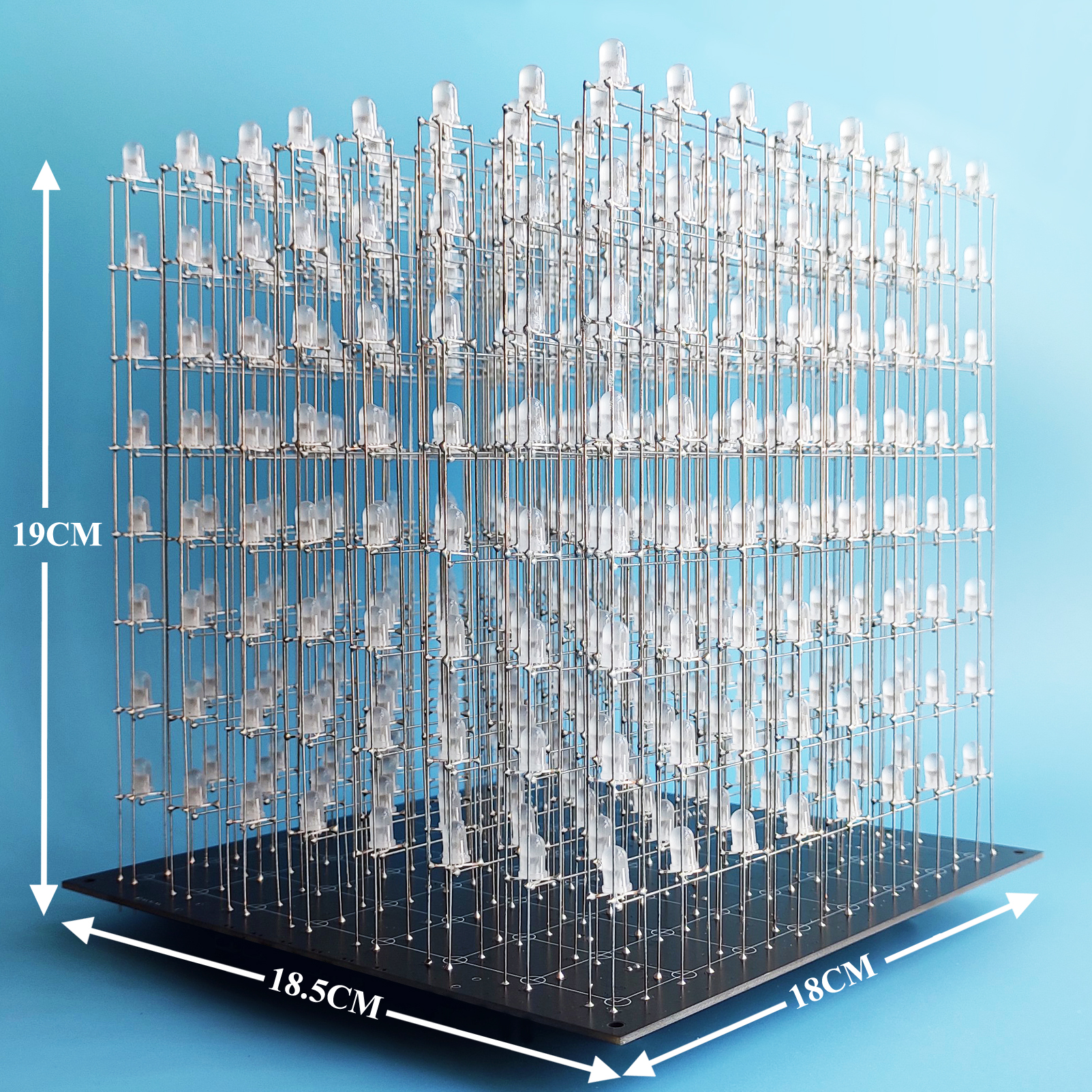

The finished product is 18x18.5x19cm in dimensions after welded, and the distance between the lamps is 2.2cm.

Used For:

It is suitable for students' manual electronic manufacturing courses, hands-on welding exercises and electronics enthusiast. Meanwhile, it is also a pretty innovative and meaningful small gift.

It Needs To Be Welded By The Buyer:

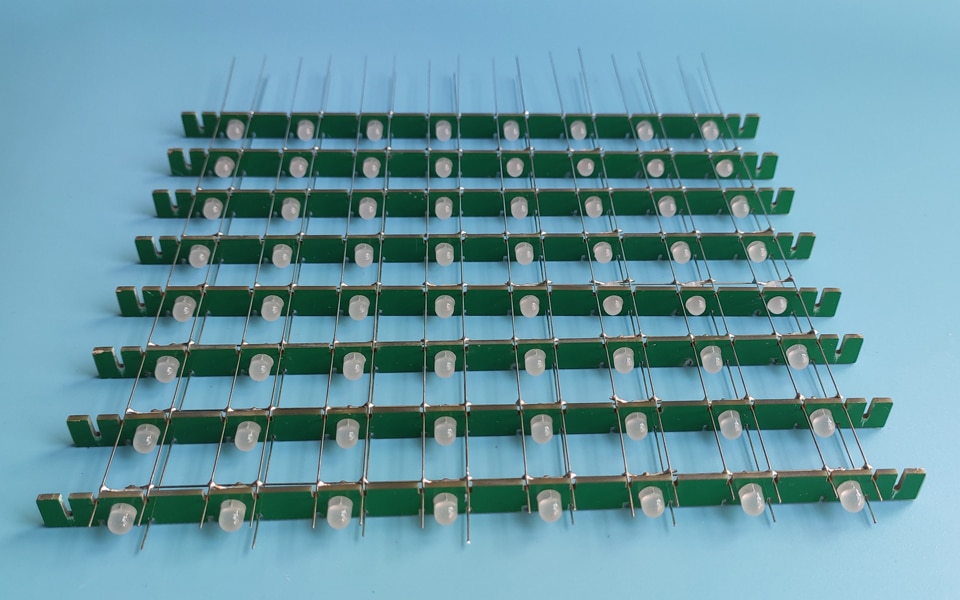

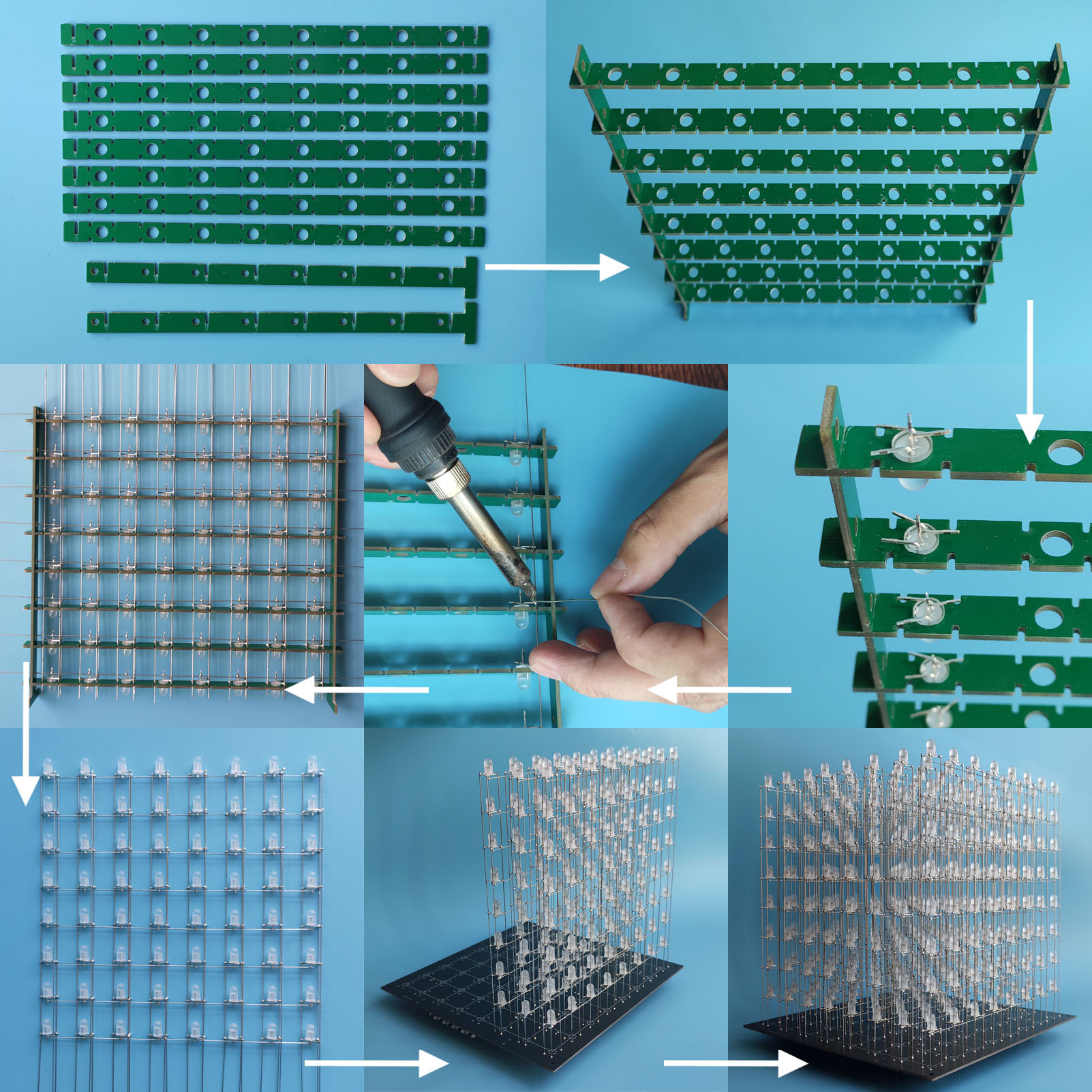

As required, users should weld 512 RGB lamps on their own and they also need to be skilled in welding technology. We have designed a fixed LED support to facilitate and better LED welding. Users only need to weld step by step according to the printed installation instructions;

The following link is a video of the DIY installation process:

https://youtu.be/5jirZGTIkGA

Hardware Composition:

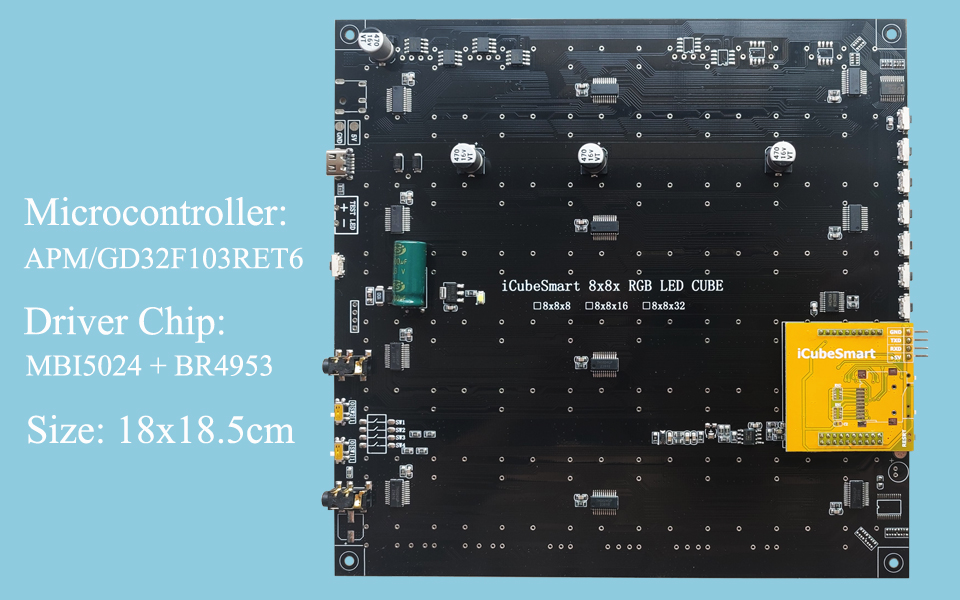

It is controlled by an STM/GD/APM/32F103RET6 single chip microcomputer (SCM) and LED is driven by an MBI5024 constant current chip. Its main board is welded and tested. The size of the main board is 18x18.5cm. The horizontal 8 layers are positive electrodes and the vertical 192 columns are negative electrodes.

The masterboard is powered by 5V USB; there are 7 keys on the masterboard to switch animation modes;

Professional Services:

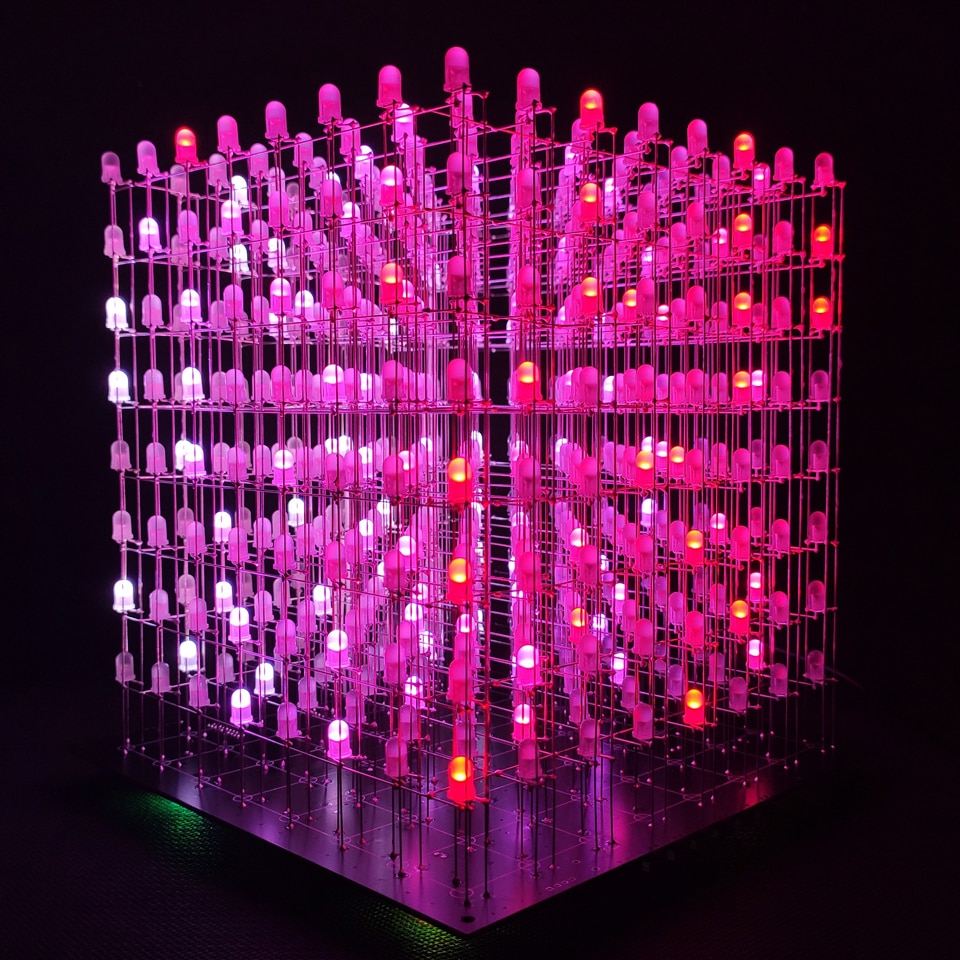

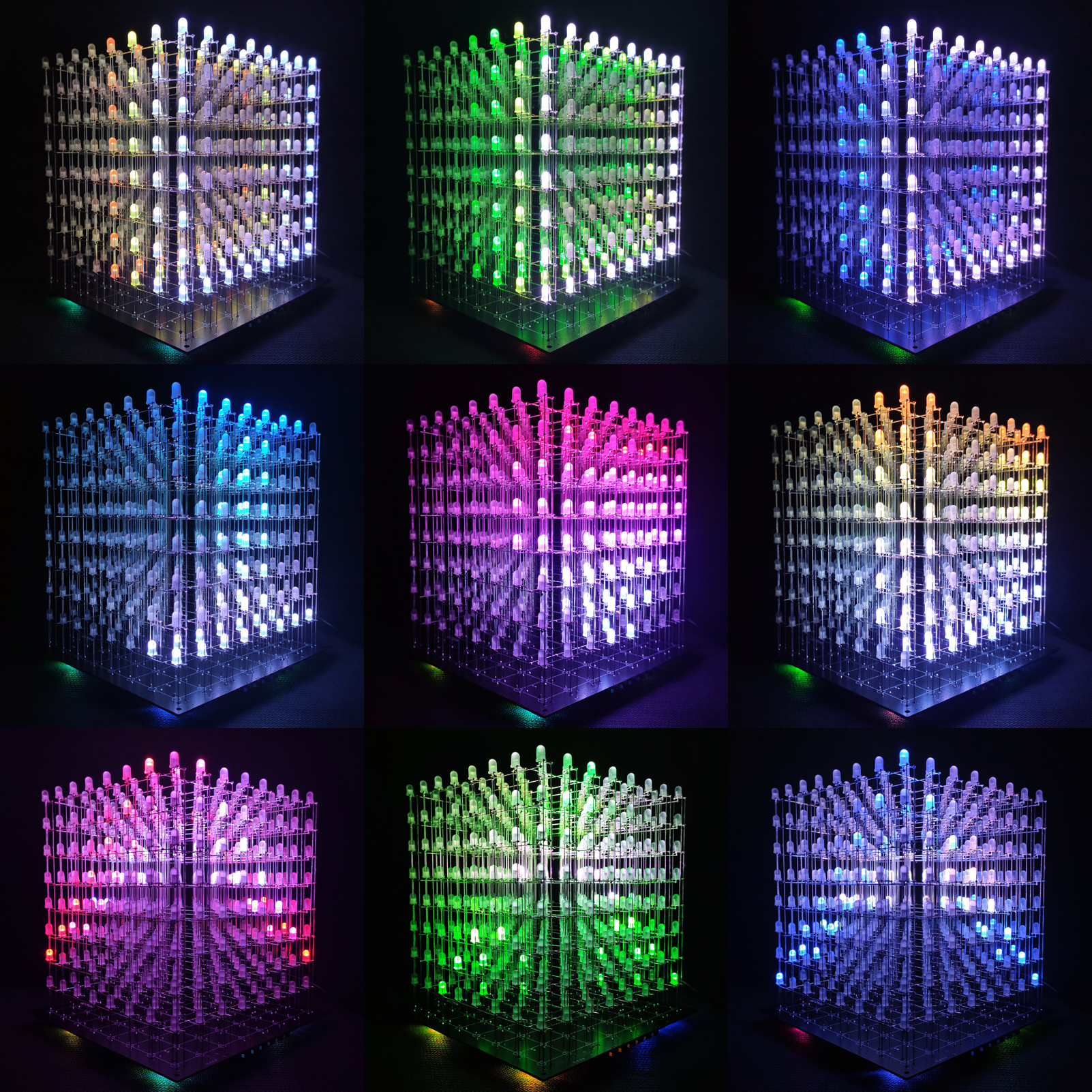

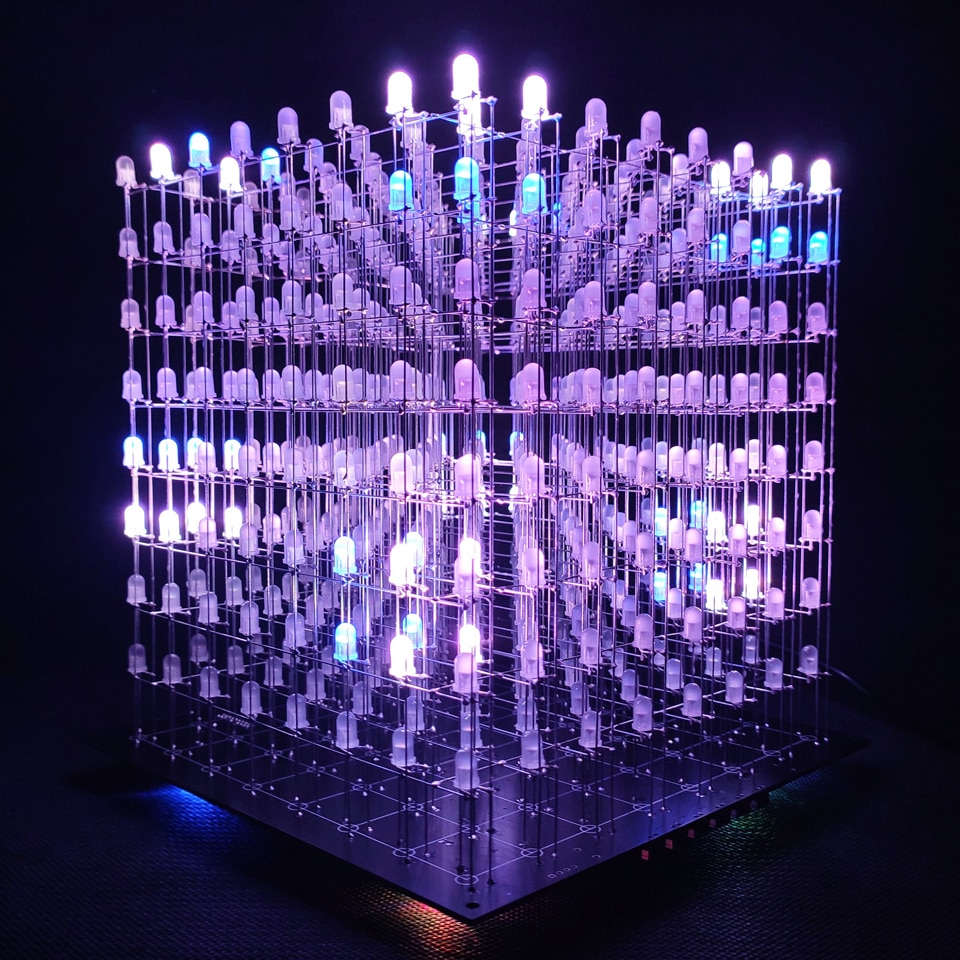

We have been engaged in the design and production of Led Cube for 9 years. We have designed various sizes of led cube as well as other electronic DIY products. If you receive the product and do not know how to make it, or if there are fewer components for any reason, or if you need our help to modify the displayed animation, you can leave us a message. We offer life-long technical support services for our DIY products. The following are some 3D8RGB finished pictures:

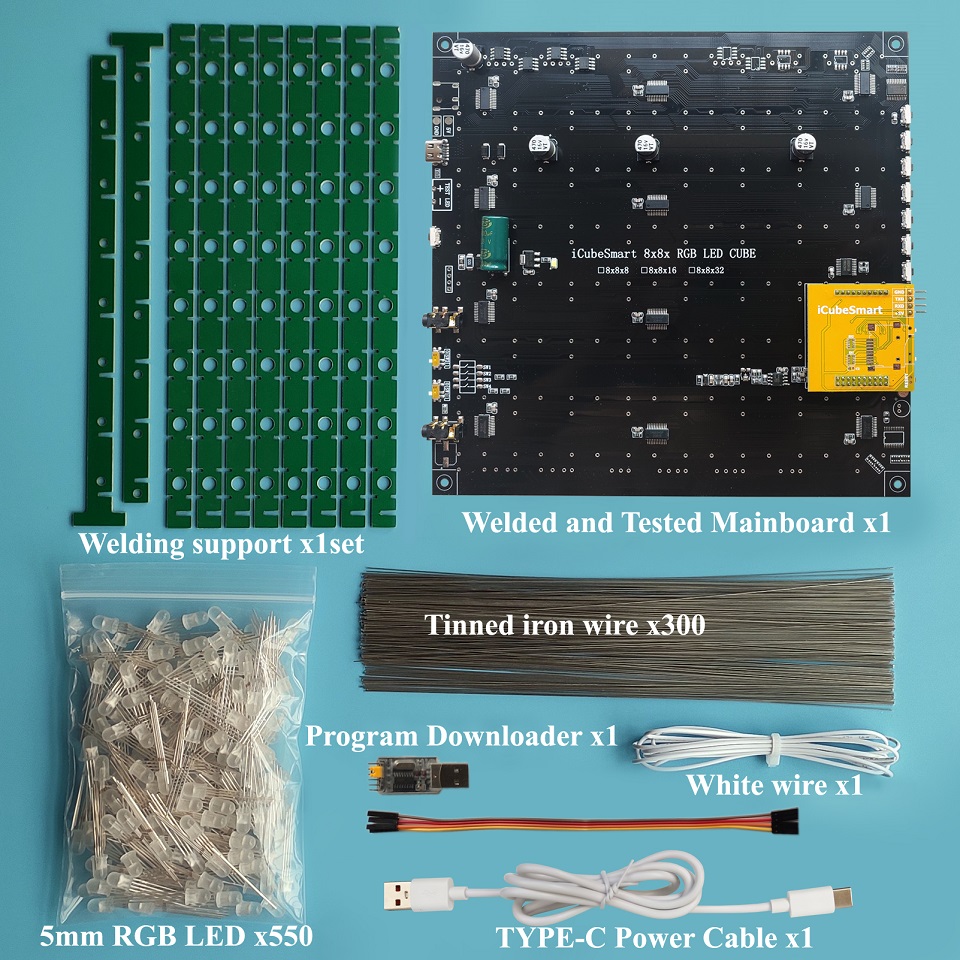

3D8RGB-KIT Option Package Include:

The suite includes such accessories as follows: 1. 5mm RGB LED x550 pcs (512 leds used); 2. Welding support x1 set (10 green PCBs); 3. 0.5mm (diameter), 25cm-long fine tinned iron wire x300 pcs(272 used); 4. Welded and tested mainboard (black) x1; 5. Control panel (yellow) x1; 6. White wire x1; 7. USB-DC power cable x1;
