iCubeSmart 3D8MINI Led Cube Kit Diy Electronic Kits, Size: 11x11x12cm

$29.80 USD

Color

3D8MINI-MULTI4

3D8MINI-BLUE

Quantity

Free worldwide shipping

Free returns

Carbon neutral

Secure payments

Shipping Policy

Return Policy

Great Science Kit:

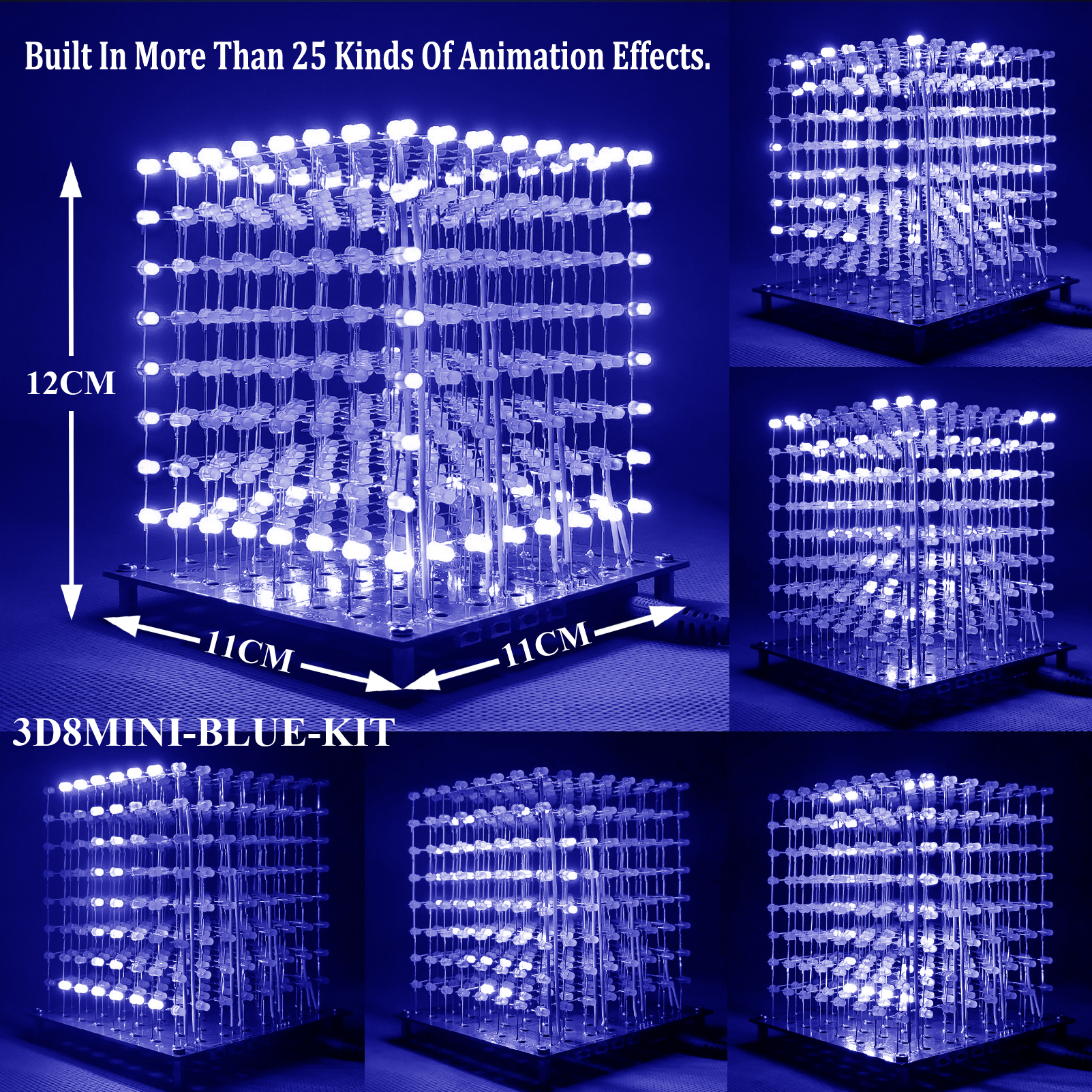

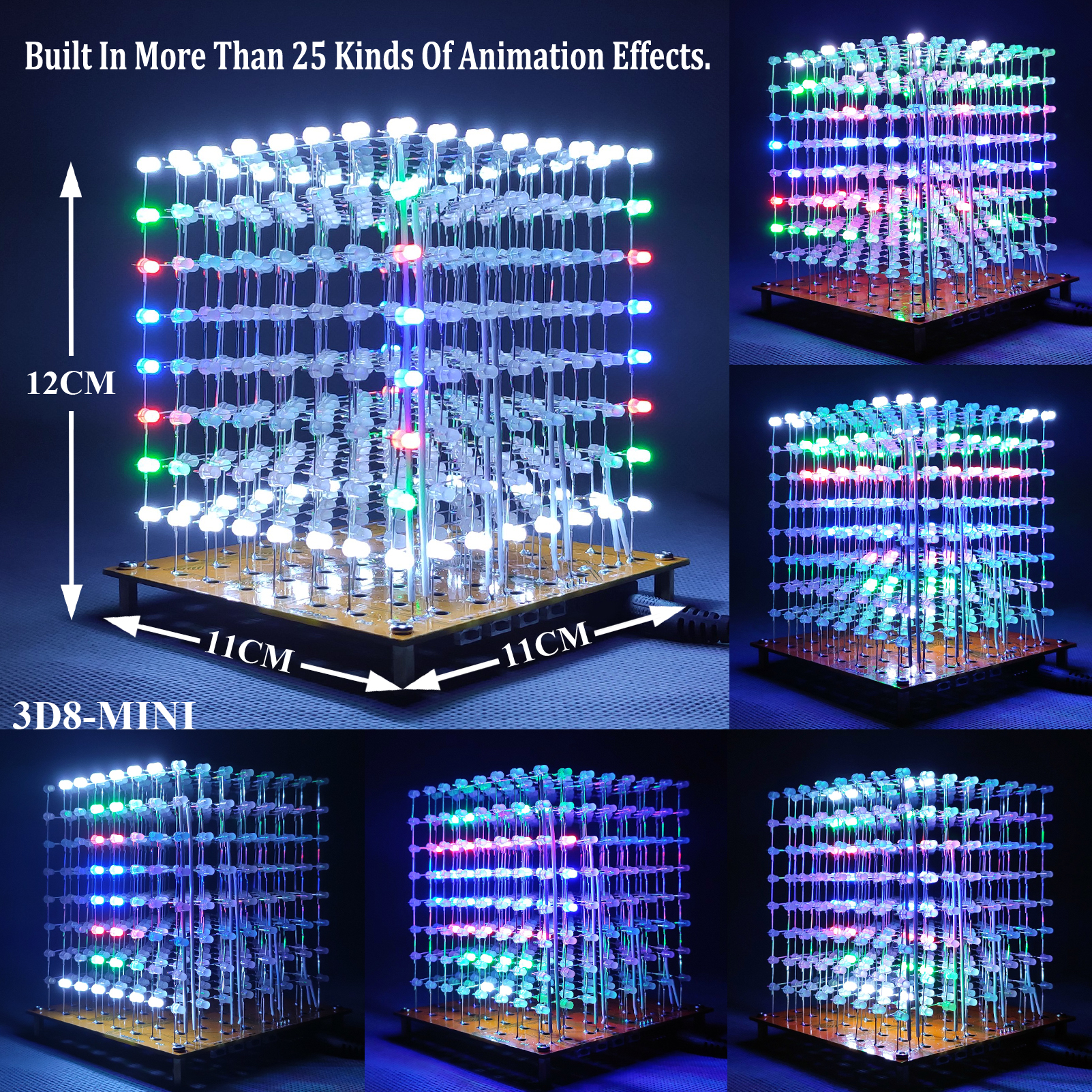

It's a 8x8x8 LED CUBE diy Electronic Kit, a great science kit, soldering project kit. Children will love it and stay away from video games. It requires the buyer to solder by himself, which is very suitable for training hands-on ability and patience. The size of the finished product after welding of this package is about 11x11x12cm, and the distance between the lamps is 1.2cm. More than 25 kinds of brilliant animation effects have been built into the masterboard. Users can display the animation after welding and plugging in the 5V USB power supply. The following is the video effect of the 3D8-MINI finished product comparison:

Used For:

It is suitable for students' manual electronic manufacturing courses, hands-on welding exercises and electronics enthusiast. Meanwhile, it is also a pretty innovative and meaningful small gift.

It Needs To Be Welded By The Buyer:

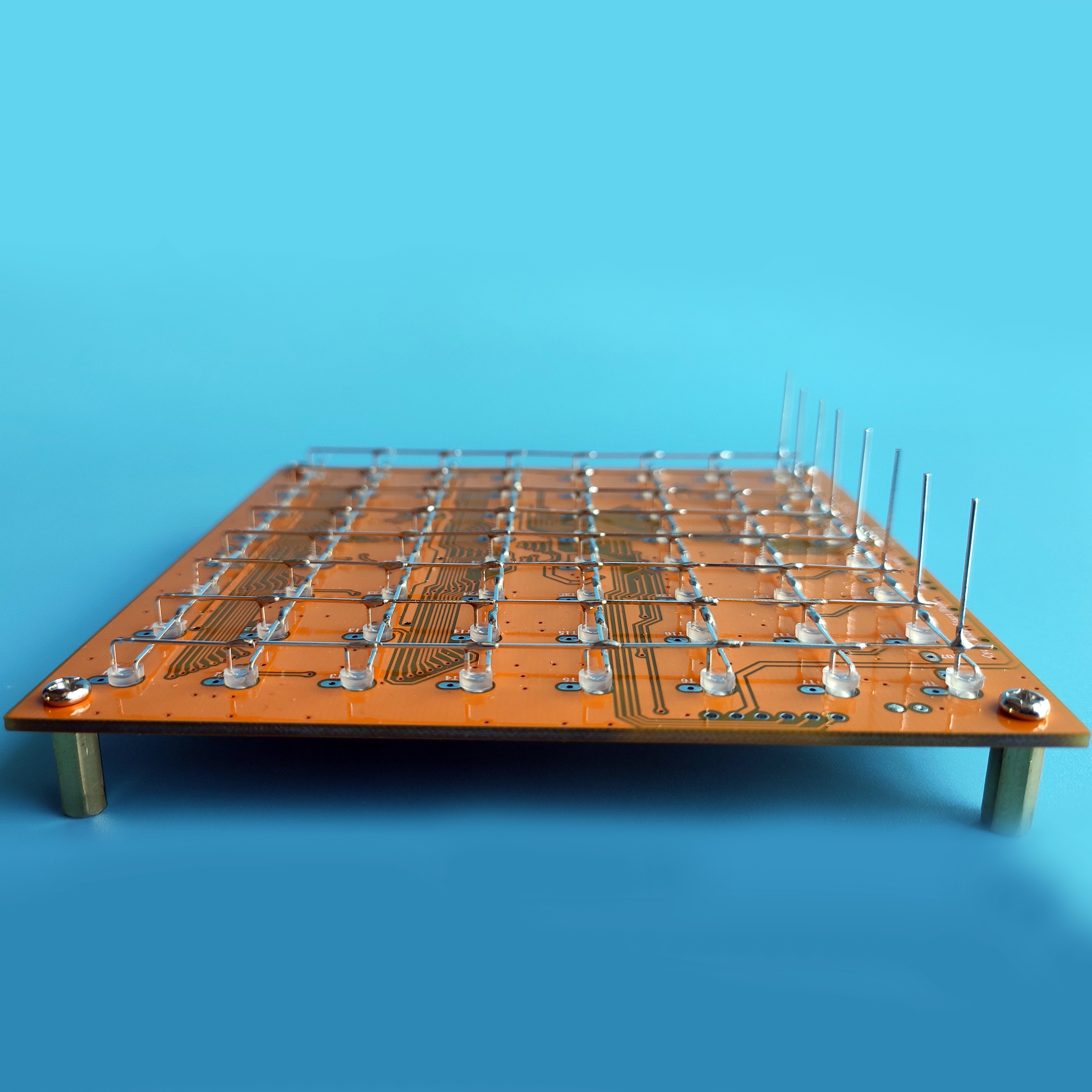

The PCB main board in this package has been well soldered and tested, and users only need to solder the LED lamp themselves, so users are only required to have a simple electronic technology foundation and soldering ability. There are 64 circular holes on the main board to fix the LED and make welding easier. We provide paper welding installation instructions.

The following link is a video of the DIY installation process.

Hardware Composition:

Microcontroller: STC12C5A60AD Driver chip: 74HC573 + BR4953, the horizontal 8 layers are positive electrodes and the vertical 64 columns are negative electrodes.

The masterboard is powered by 5V USB; there are 4 keys on the masterboard to switch animation modes (key functions are reset, start/pause, next animation, loop playback of single animation/loop playback of all animations respectively);

Package Include:

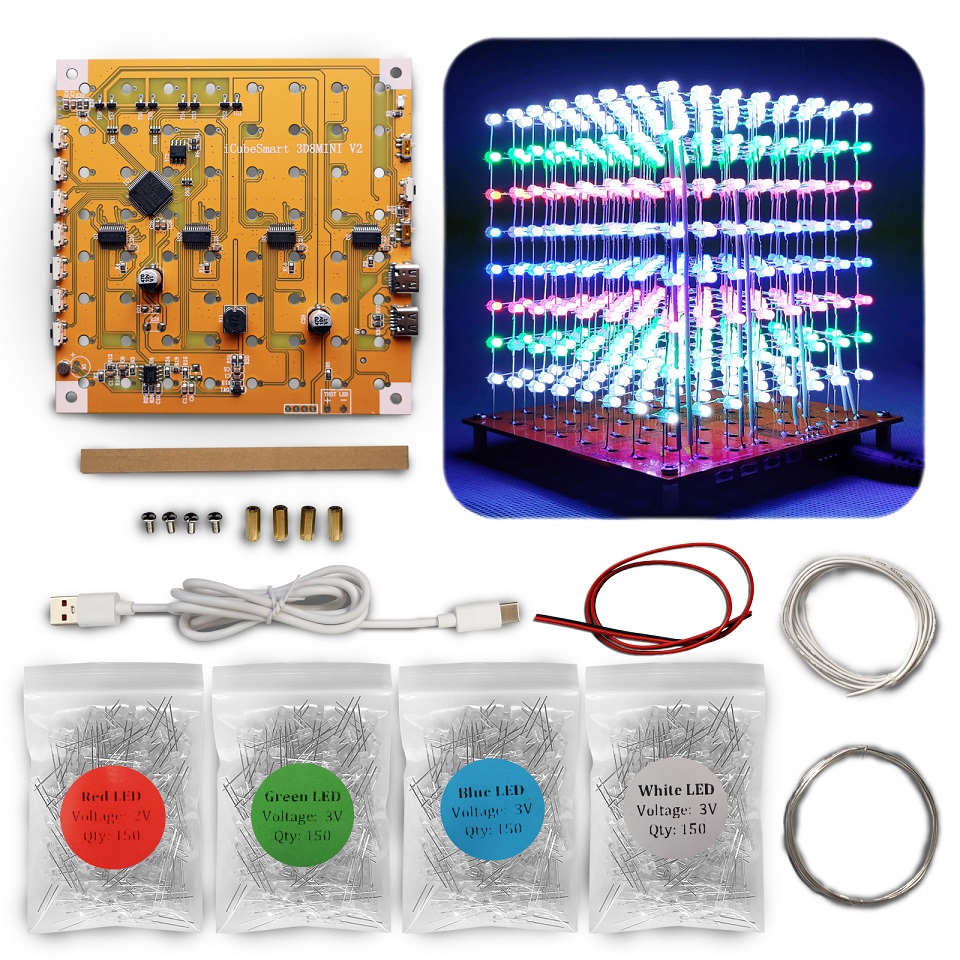

1, Soldered and tested masterboard (size: 11*11cm) x1

2, Micro USB cable x1

3, 0.8mm tinned iron wire x1

4, White electronic line x1

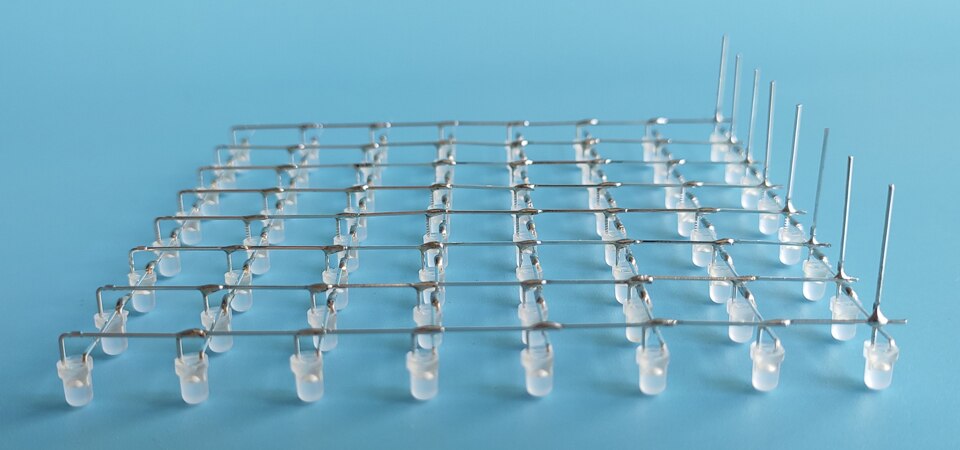

5, 2mm acrylic strip (used for bending LED anode) x1

6, Foggy highlight 3mm circular LEDs, each led is provided for standby.

3D8MINI-MULTI4 Options: 150 Red Leds, 150 Green Leds, 150 Blue Leds, 150 White Leds, (for the arrangement method of red, green blue and white LEDs, please refer to our welding instruction document. )

3D8MINI-BLUE Options: 600 Blue Leds.

Our Efforts Are Only To Make It Easier For Buyers To Succeed:

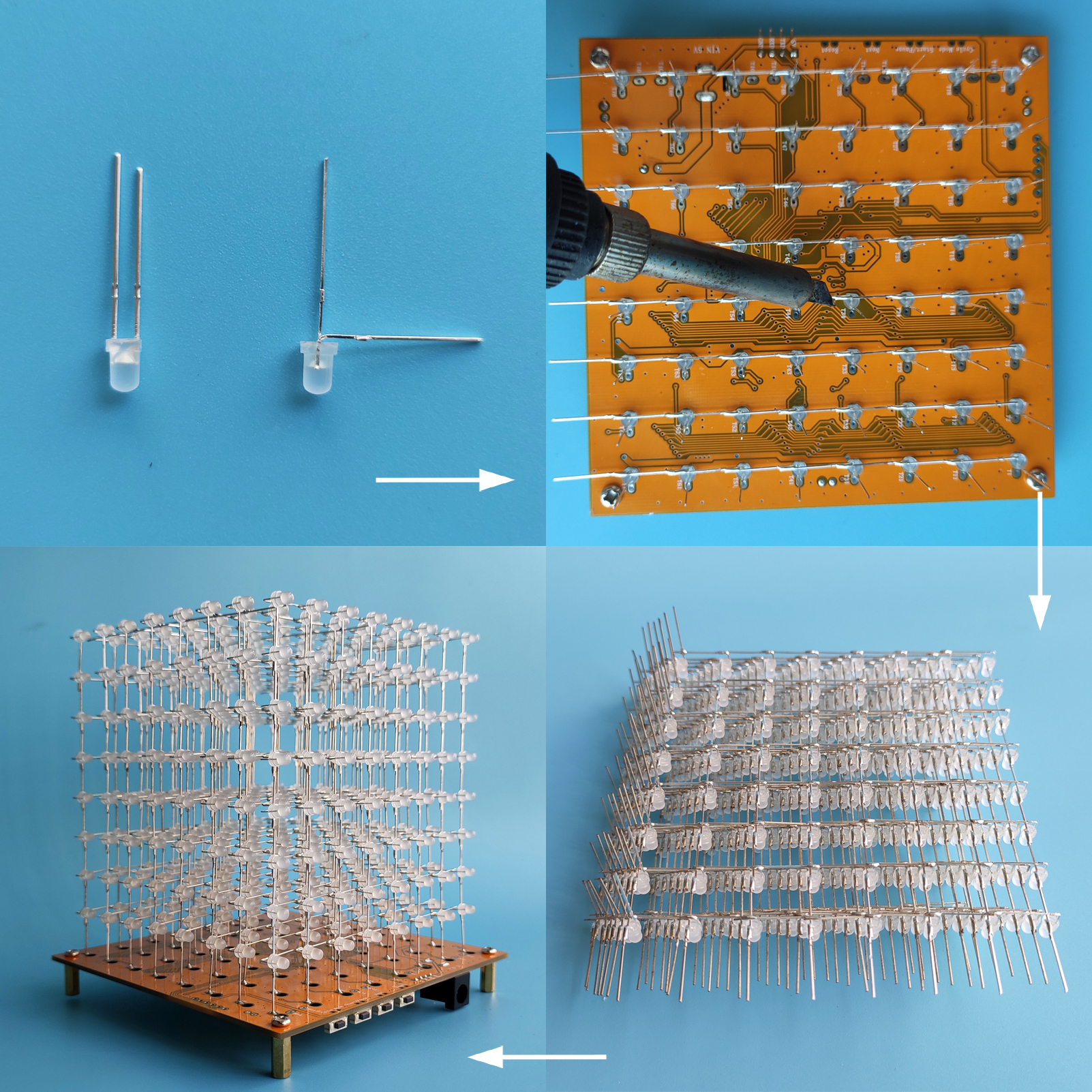

We have made a lot of efforts to make the installation as simple as possible for the buyer, and the installation is successful. Upon receipt of the goods, you only need to weld the LEDs on the paper welding instructions and plug in the 5V usb power supply to display brilliant lighting effects. 1, There are 64 circular holes on the main board to fix the LED and make welding easier.

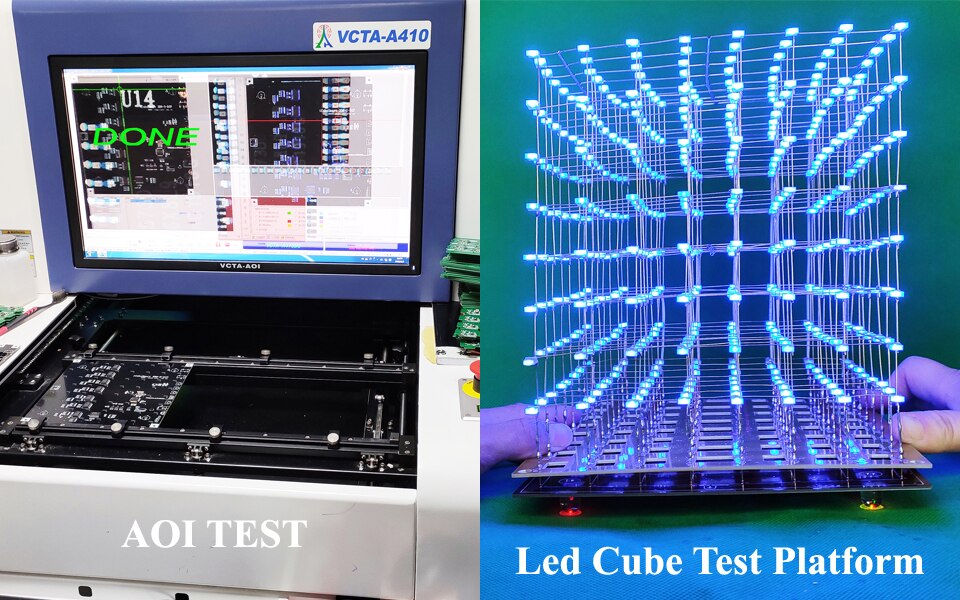

2, We tested the motherboard twice, using the AOI automatic test for the first time, and using the cube test platform for the simulation test for the second time.

3, As a matter of fact, only 512 leds will be used, but to prevent damage to leds during manufacture, each led is provided for standby.

Professional Services:

We have been engaged in the design and production of Led Cube for 9 years. We have designed various sizes of led cube as well as other electronic DIY products. If you receive the product and do not know how to make it, or if there are fewer components for any reason, or if you need our help to modify the displayed animation, you can leave us a message. We offer life-long technical support services for our DIY products.
