iCubeSmart 3D16S Led Cube Kit, Red Green Blue White LED Combinations 16x16x16 Cube DIY Electronic Kits

Name: iCubeSmart 3D16S Led Cube Kit, Red Green Blue White LED Combinations 16x16x16 Cube DIY Electronic Kits
Brand: iCubeSmart
SKU: 3D16S-3mm LED KIT
Price: 268 USD
Availability: InStock
Rating: 0 (0 reviews)

3mm Red Green Blue White LED Combinations

Save $30.00 USD

$268.00 USD

$298.00 USD

Quantity

Free worldwide shipping

Free returns

Carbon neutral

Secure payments

Shipping Policy

Return Policy

Red, Green, Blue and White LED Combinations 16x16x16 Led Cube:

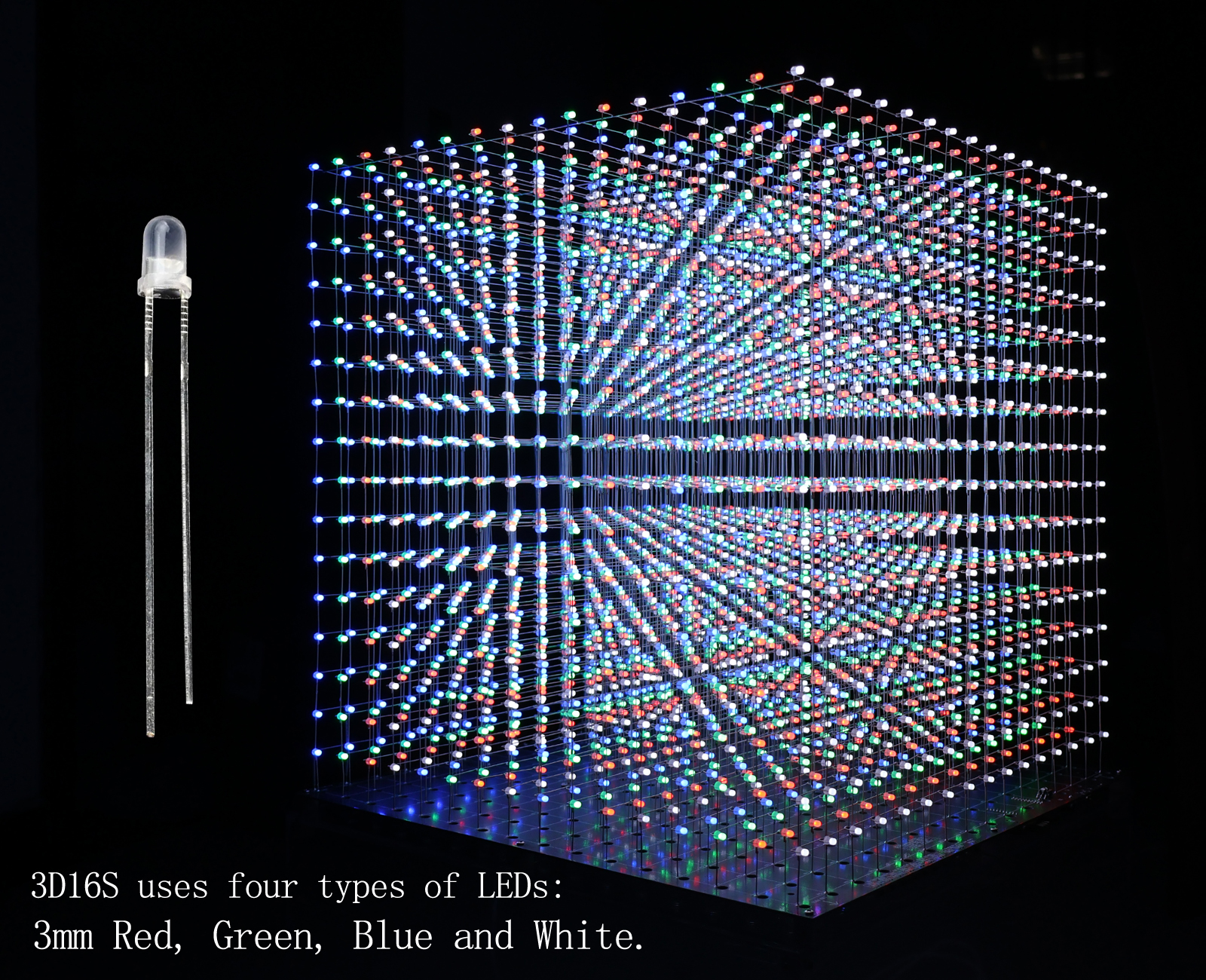

This is an 16x16x16 LED CUBE composed of 1024 red, 1024 green 1024 blue and 1024 white lamp beads. Each lamp bead has two pins, and each LED can give out one-color light. It has more colors than the LED CUBE of monochrome LEDs. More than 30 kinds of brilliant animation effects have been built into the masterboard. Users can display the animation after welding and plugging in the 5V power supply(Current 3A). The following is the video effect of the 3D16S finished product:

https://youtu.be/SVzsnAopvpk

Product size:

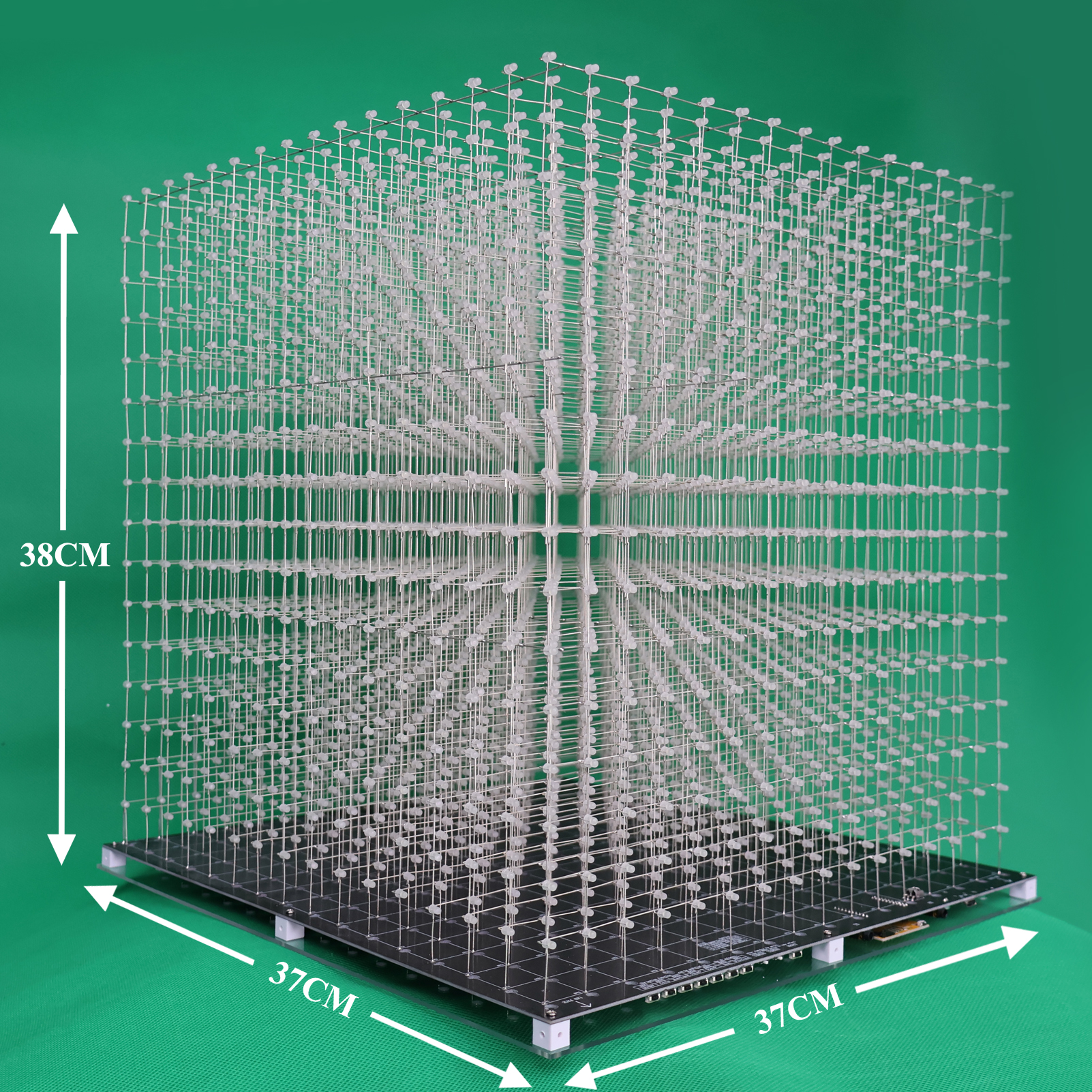

The finished product is 37x37x38cm in dimensions after welded, and the distance between the lamps is 2.3cm.

Used For:

It is suitable for students' manual electronic manufacturing courses, hands-on welding exercises and electronics enthusiast. Meanwhile, it is also a pretty innovative and meaningful gift.

It Needs To Be Welded By The Buyer:

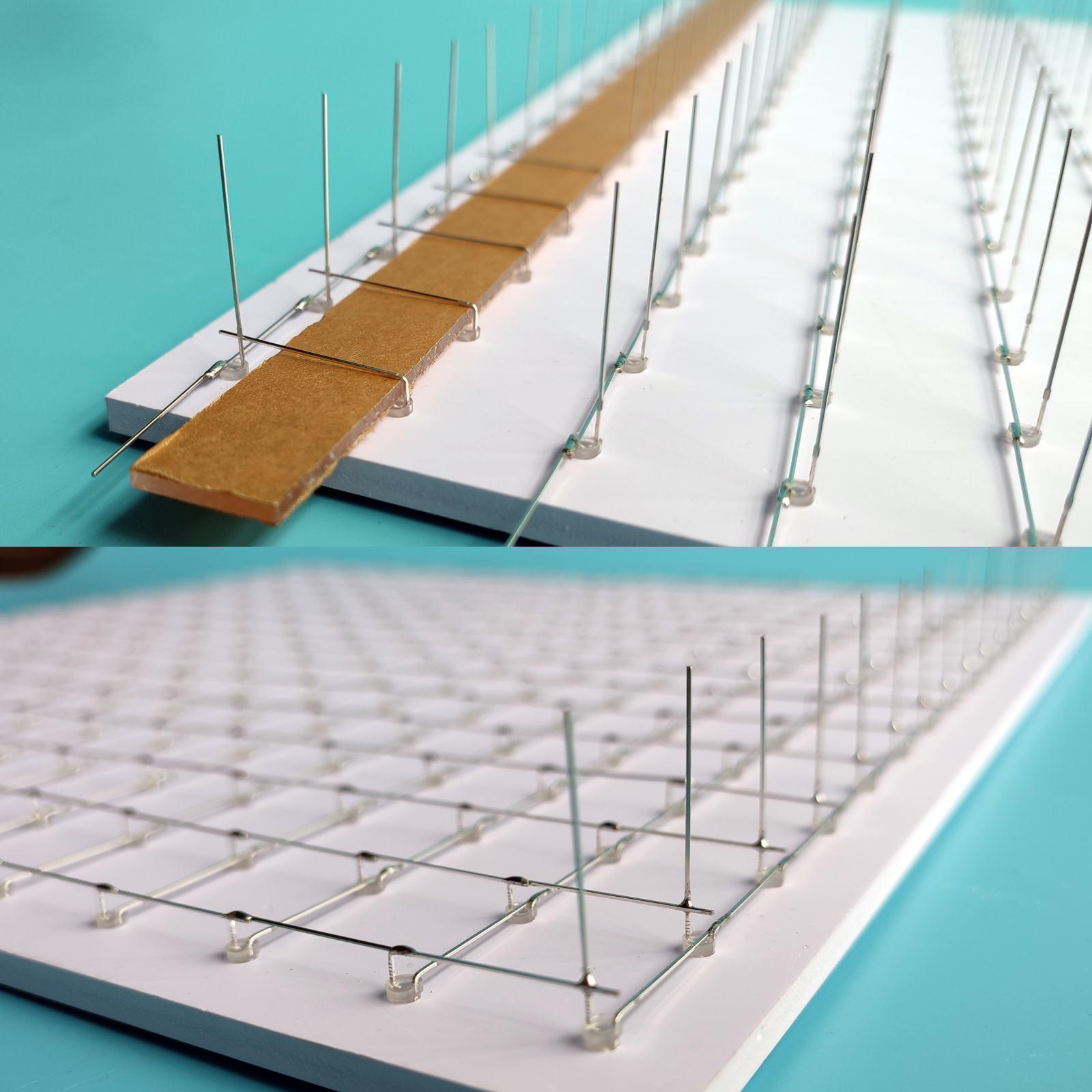

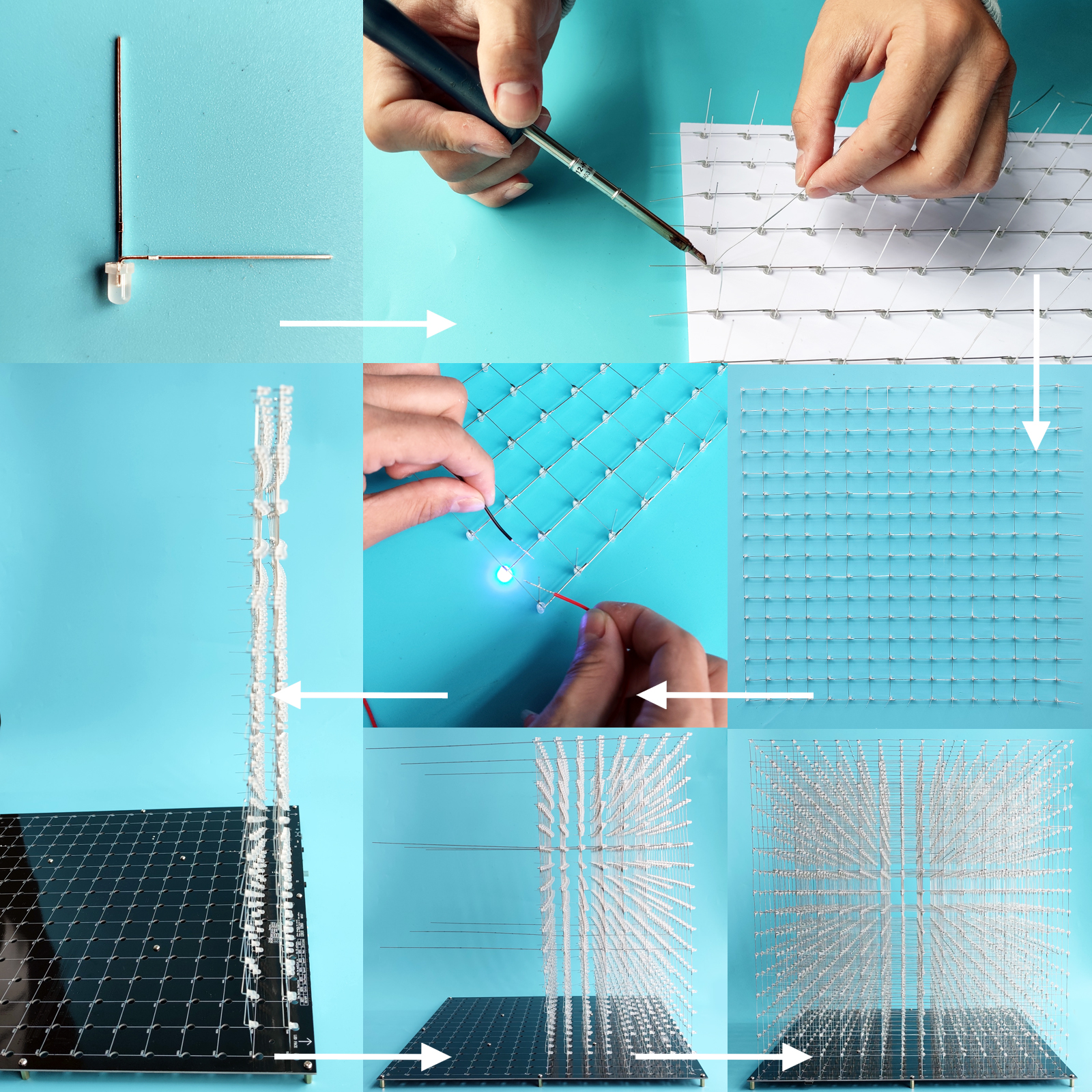

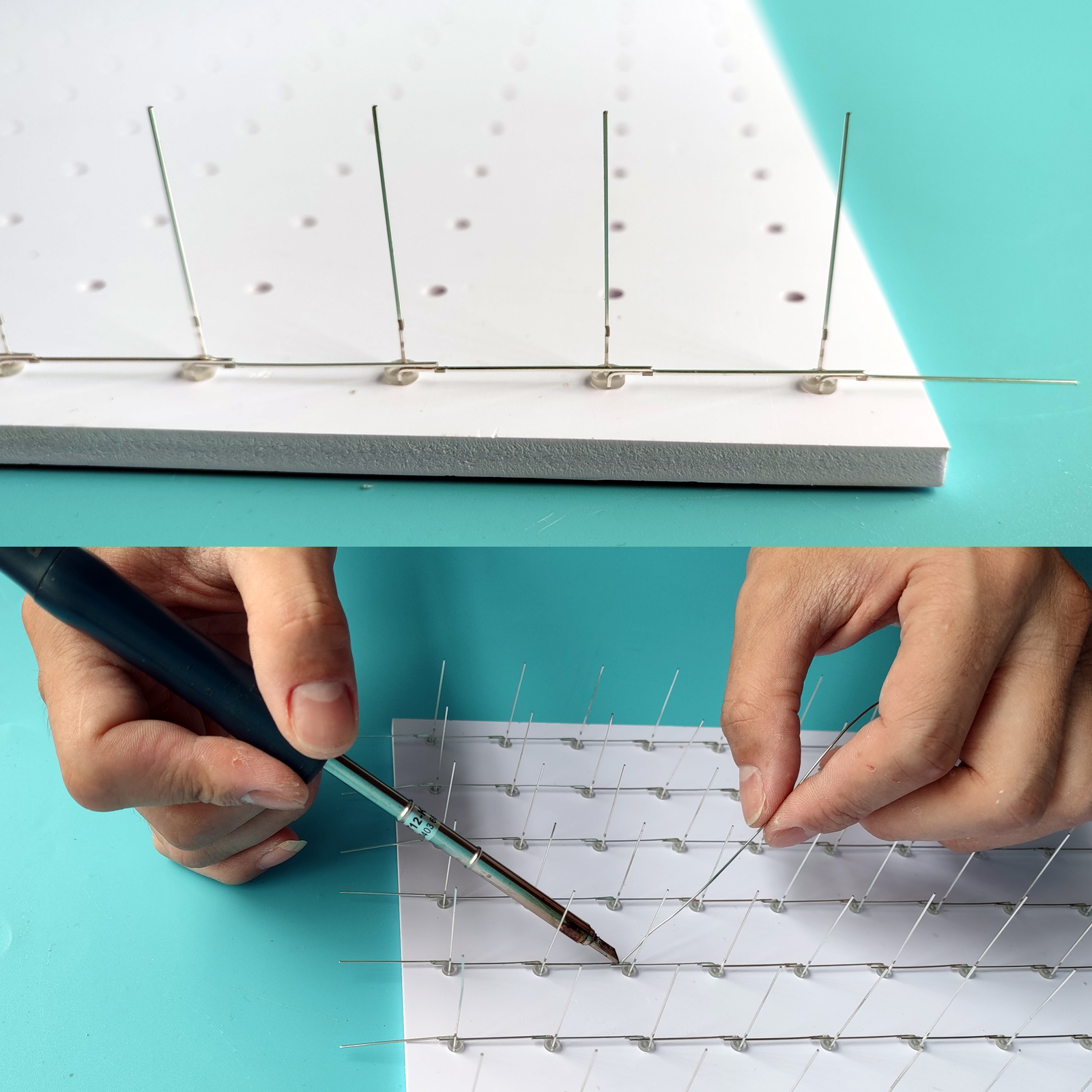

As required, users should weld 4096 lamps on their own and they also need to be skilled in welding technology. We have designed a fixed LED support to facilitate and better LED welding. Users only need to weld step by step according to the installation instructions;

Please download the latest 3D16S electronic information from the Google web disk address:

Hardware Composition:

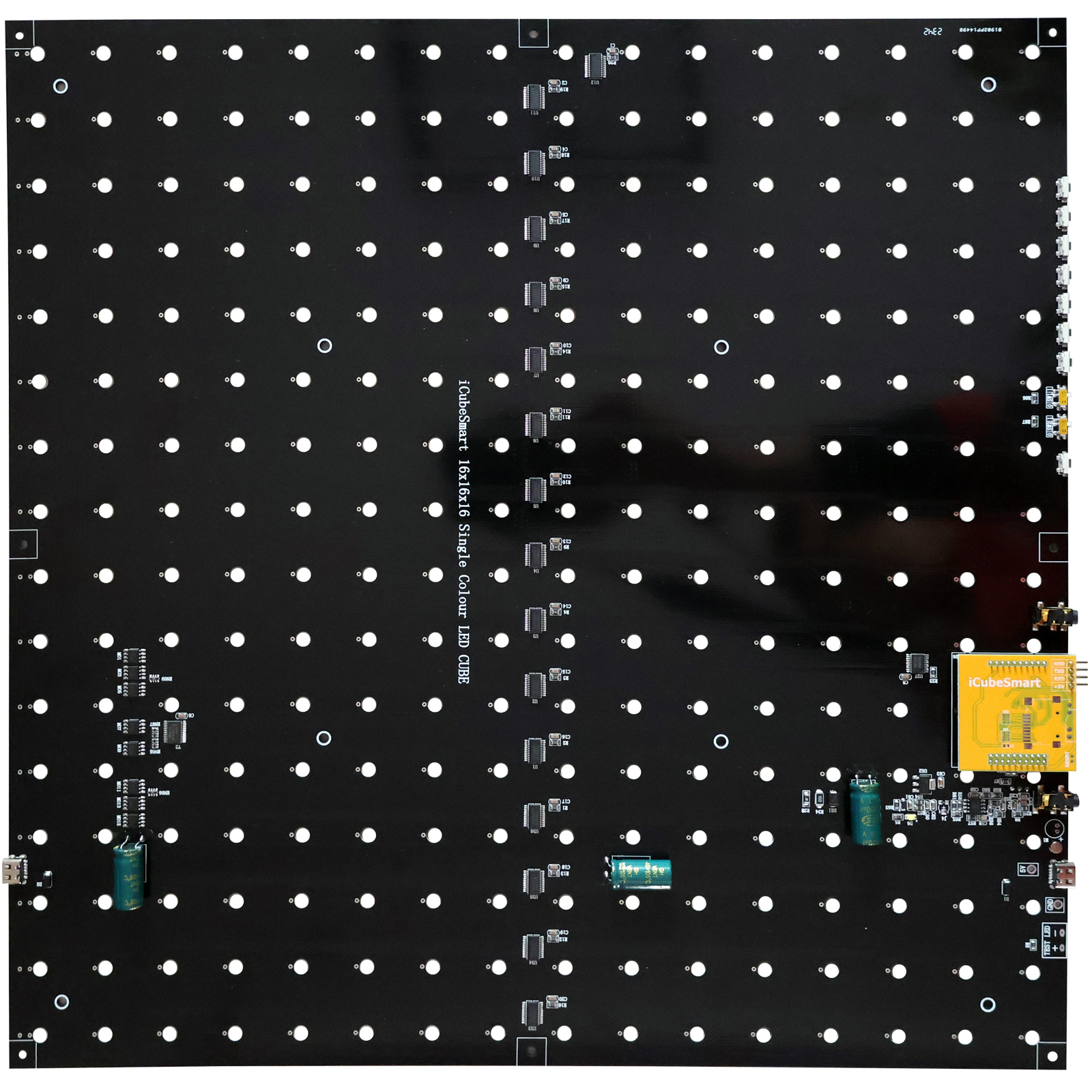

It is controlled by an GD32F103RET6 single chip microcomputer (SCM) and LED is driven by an MBI5024 constant current chip. Its main board is welded and tested. The size of the main board is 37x37cm. The horizontal 16 layers are positive electrodes and the vertical 256 columns are negative electrodes.

The masterboard is powered by 5V power adapter, we provide TYPE-C power cords. Users need to prepare their own 5V 3A current USB power adapter; there are 7 keys on the masterboard to switch animation modes;

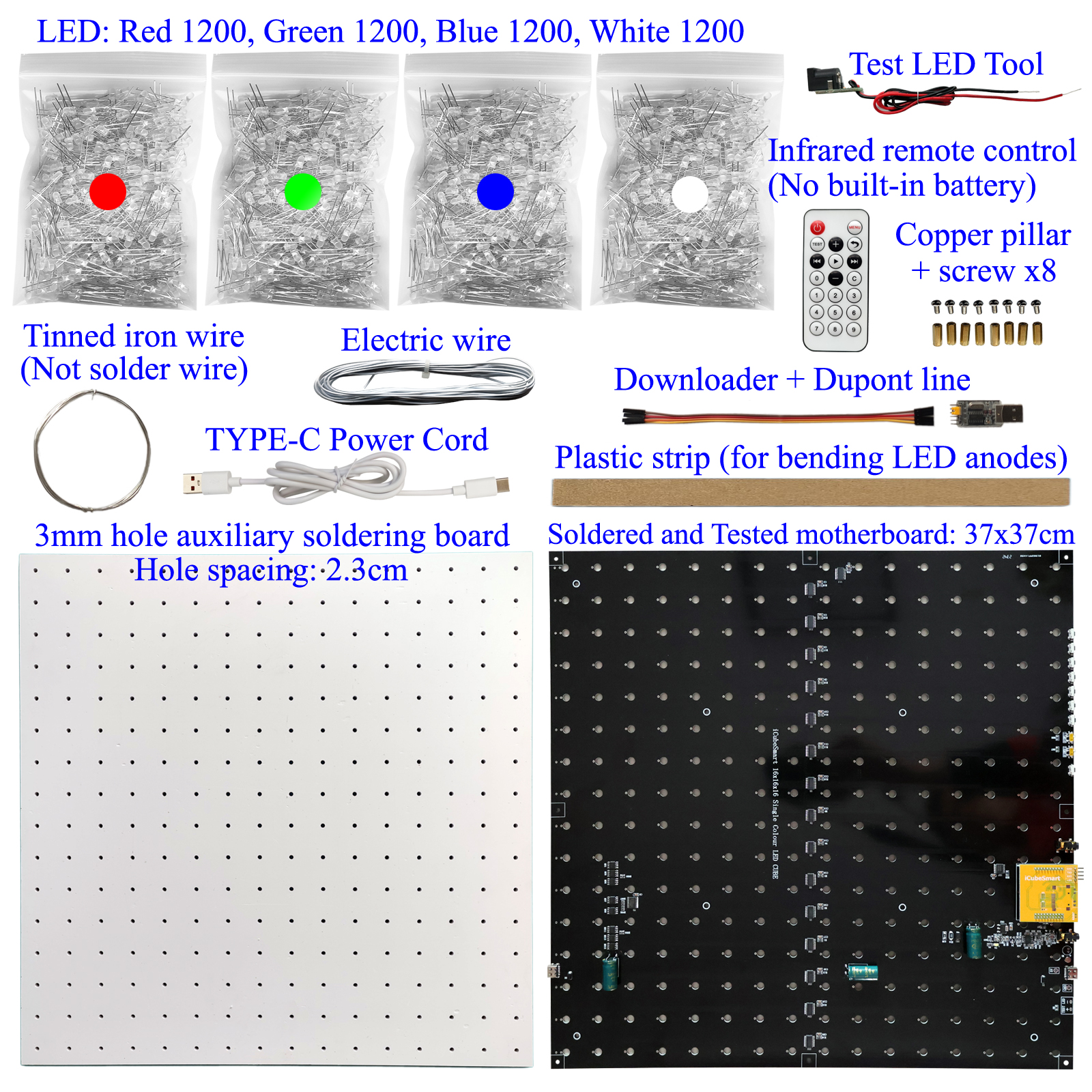

3D16S-3mm LED KIT Option Package Include:

The suite includes such accessories as follows:

1. 3mm LED: Red x1200 pcs (1024 leds used).

Green x1200 pcs (1024 leds used).

Blue x1200 pcs (1024 leds used).

White x1200 pcs (1024 leds used).

2. 3mm hole auxiliary soldering board x1;

3. 0.8mm (diameter) tinned iron wire x1;

4. Welded and tested mainboard (black) x1;

5. Infrared remote control (No built-in battery) x1;

6. Tinned iron wire (Not solder wire) x1;

7. TYPE-C power cable x1;

8. Copper pillar + screw x8;

9. Downloader + Dupont line x1;

10. Test Led Tool x1;

11. Plastic strip (for bending LED anodes) x1;

Professional Services:

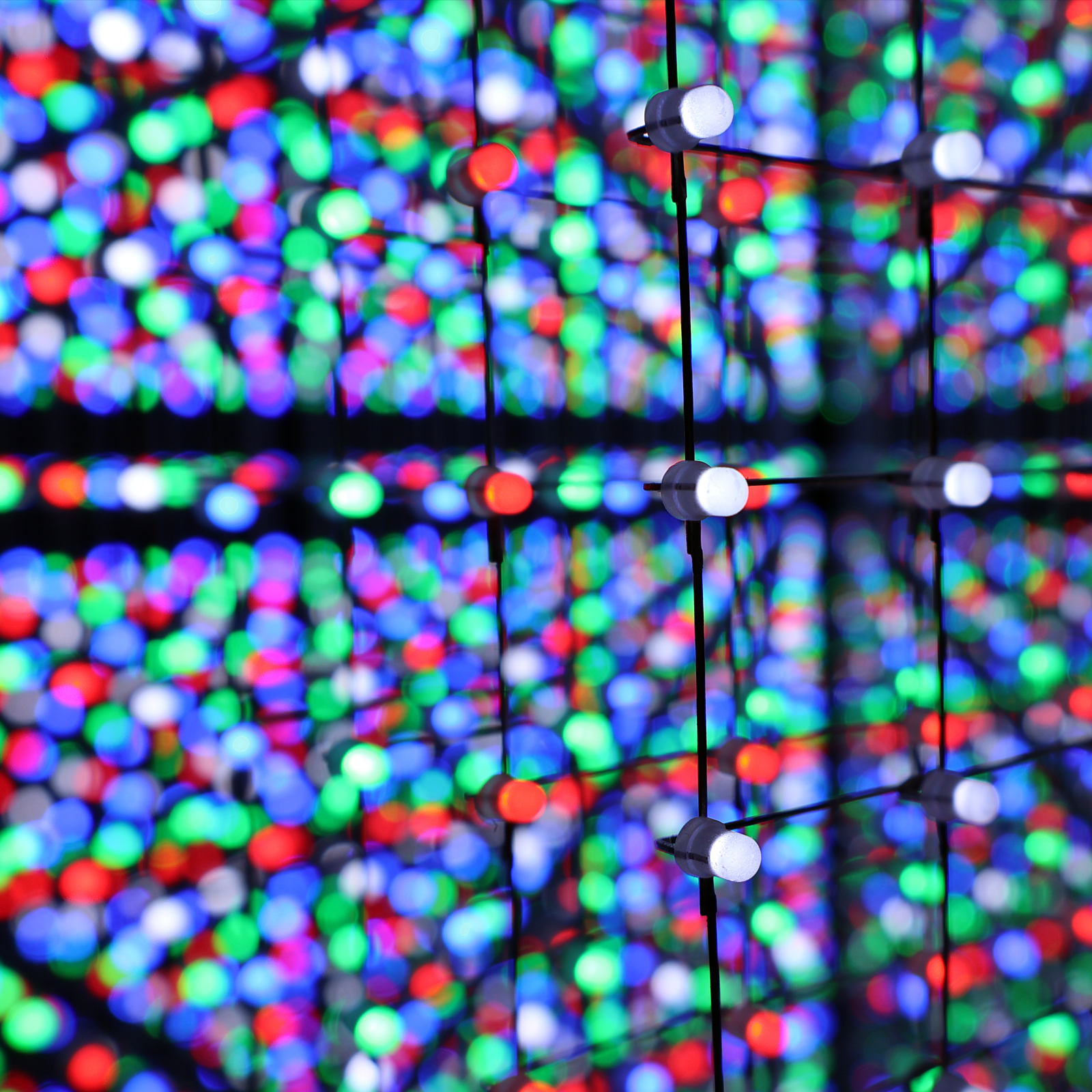

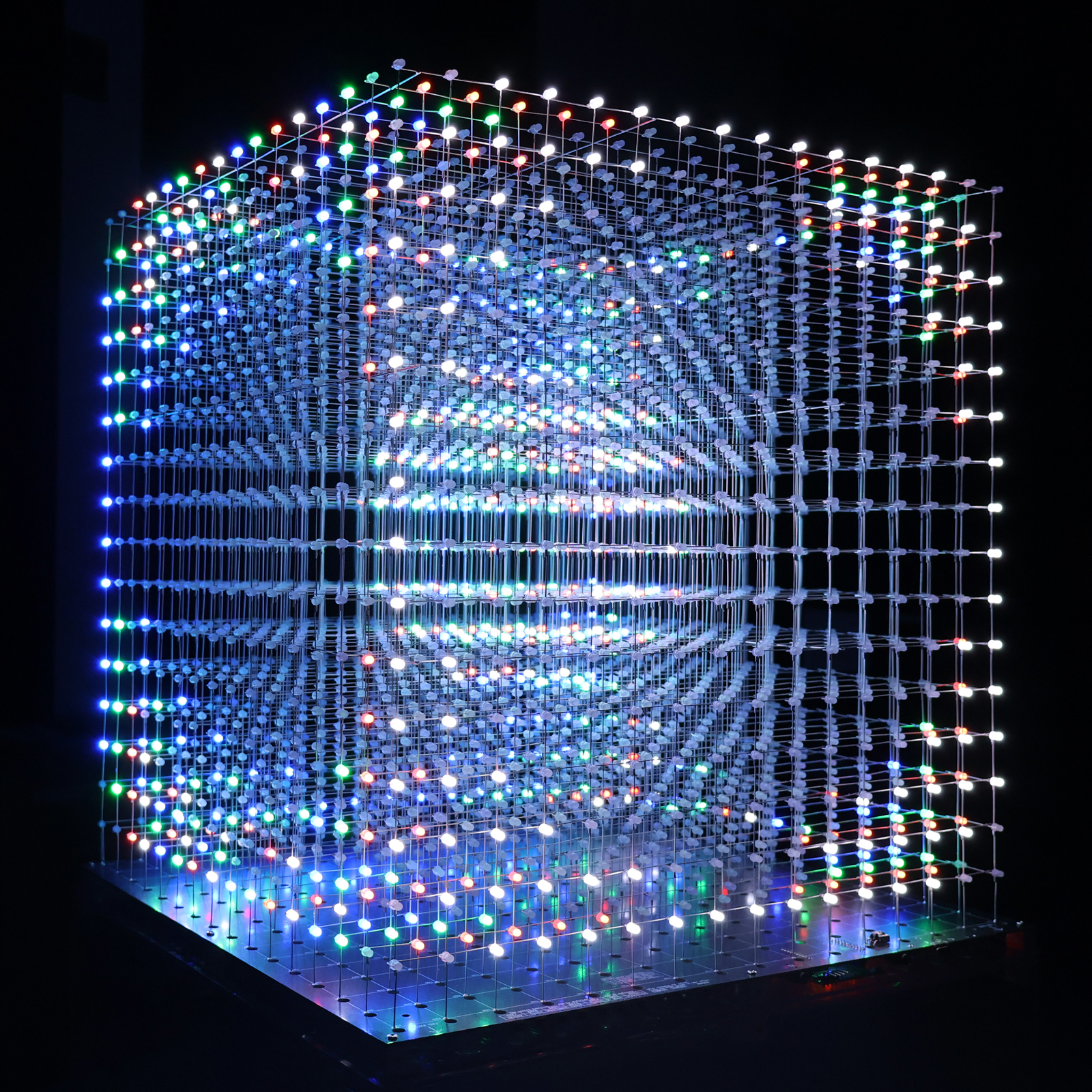

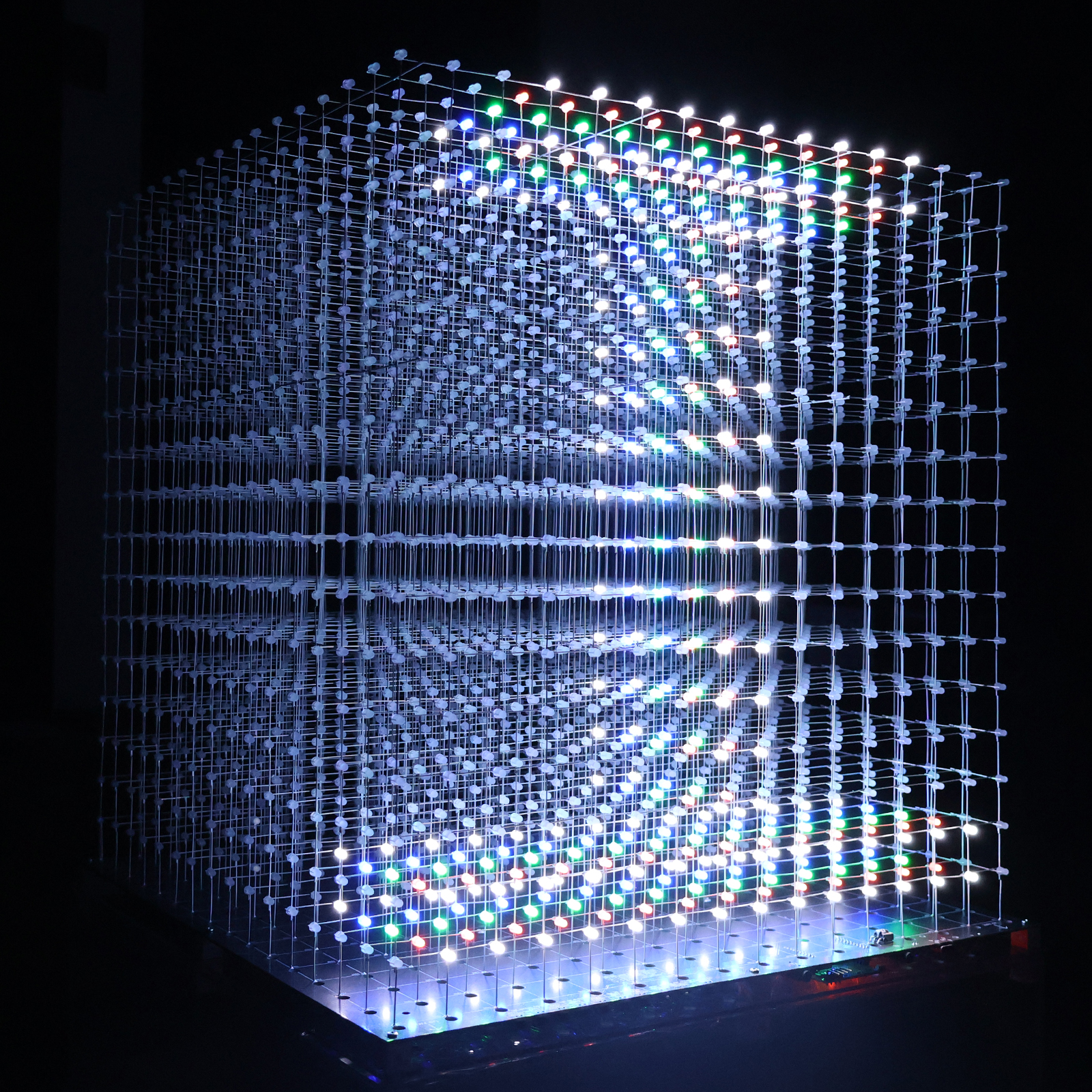

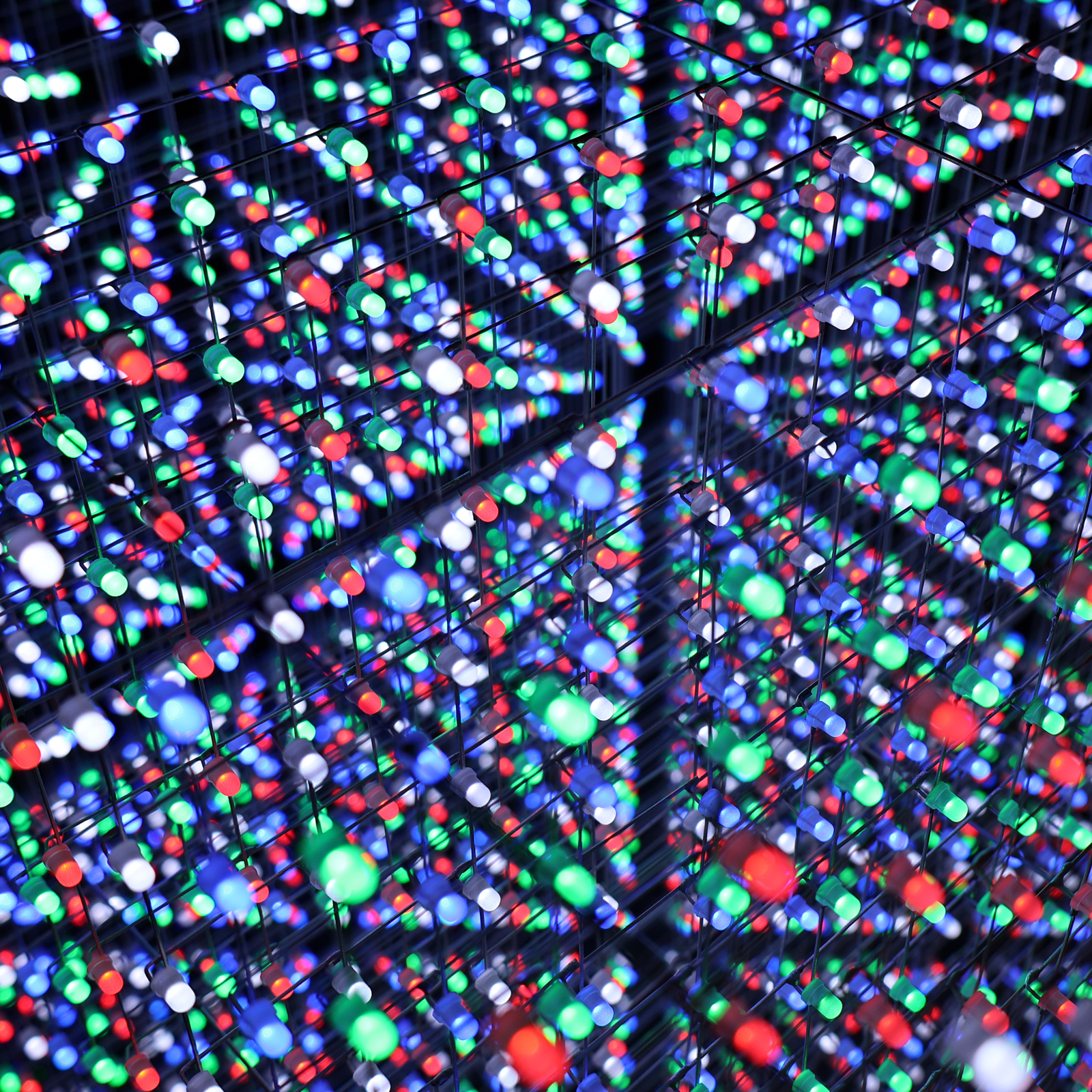

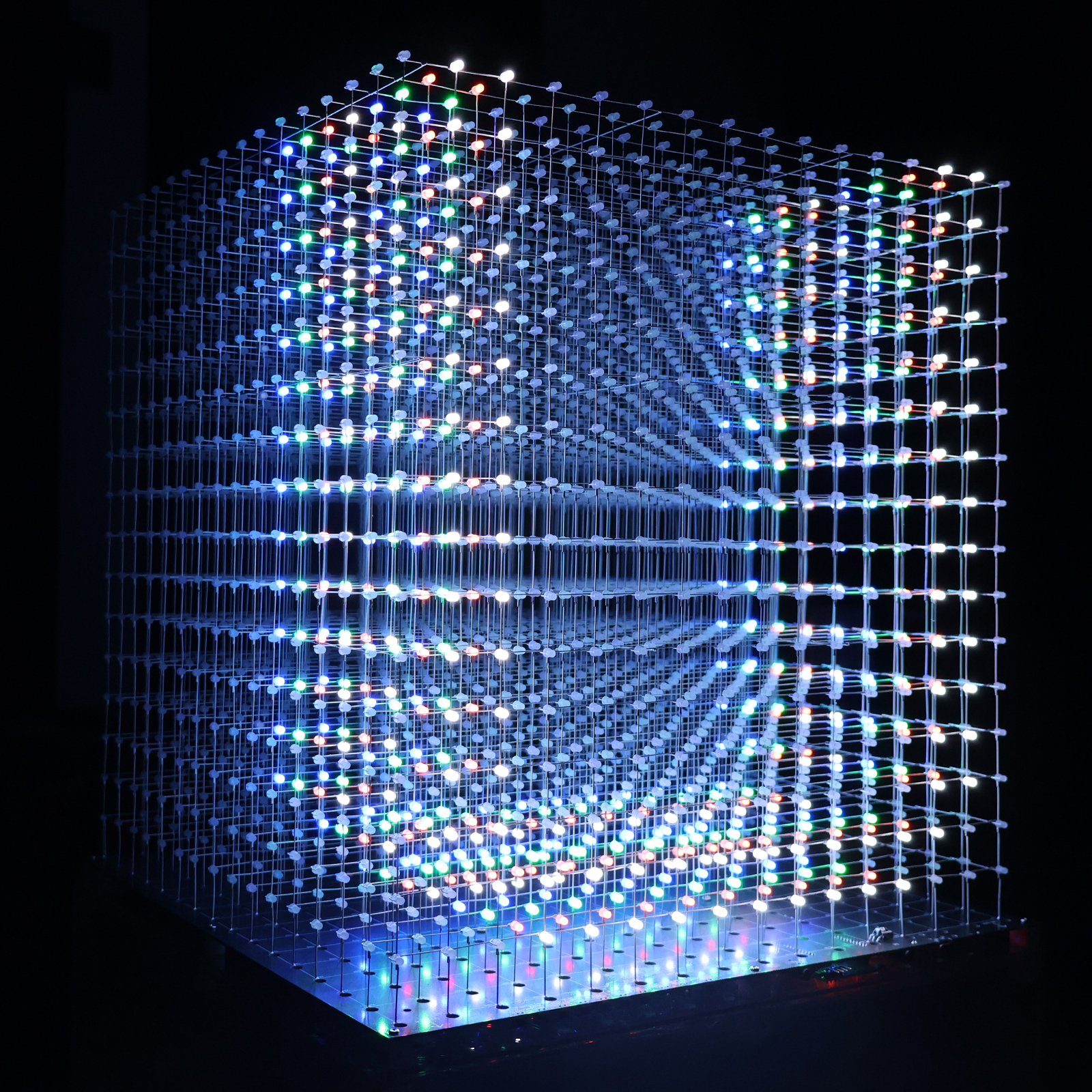

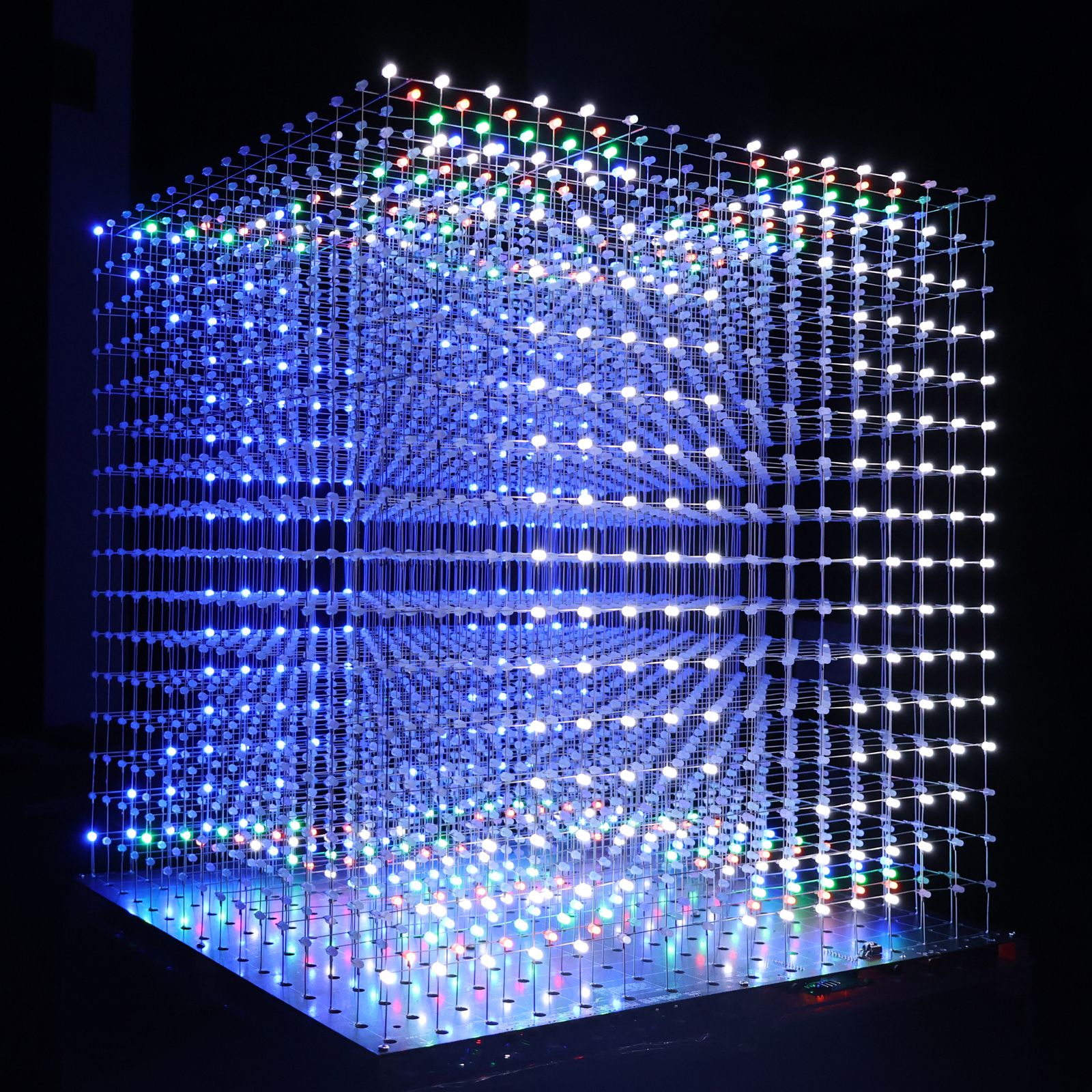

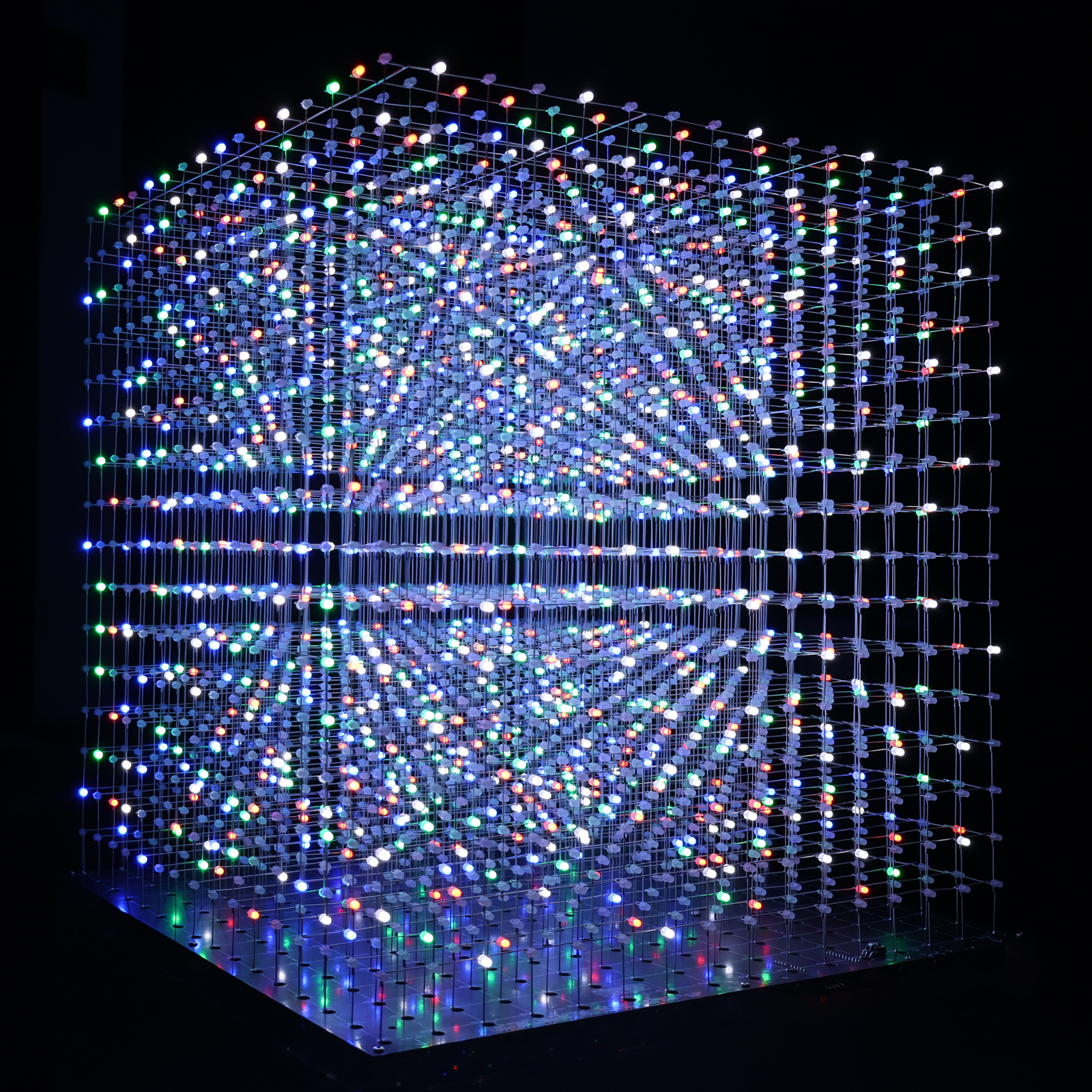

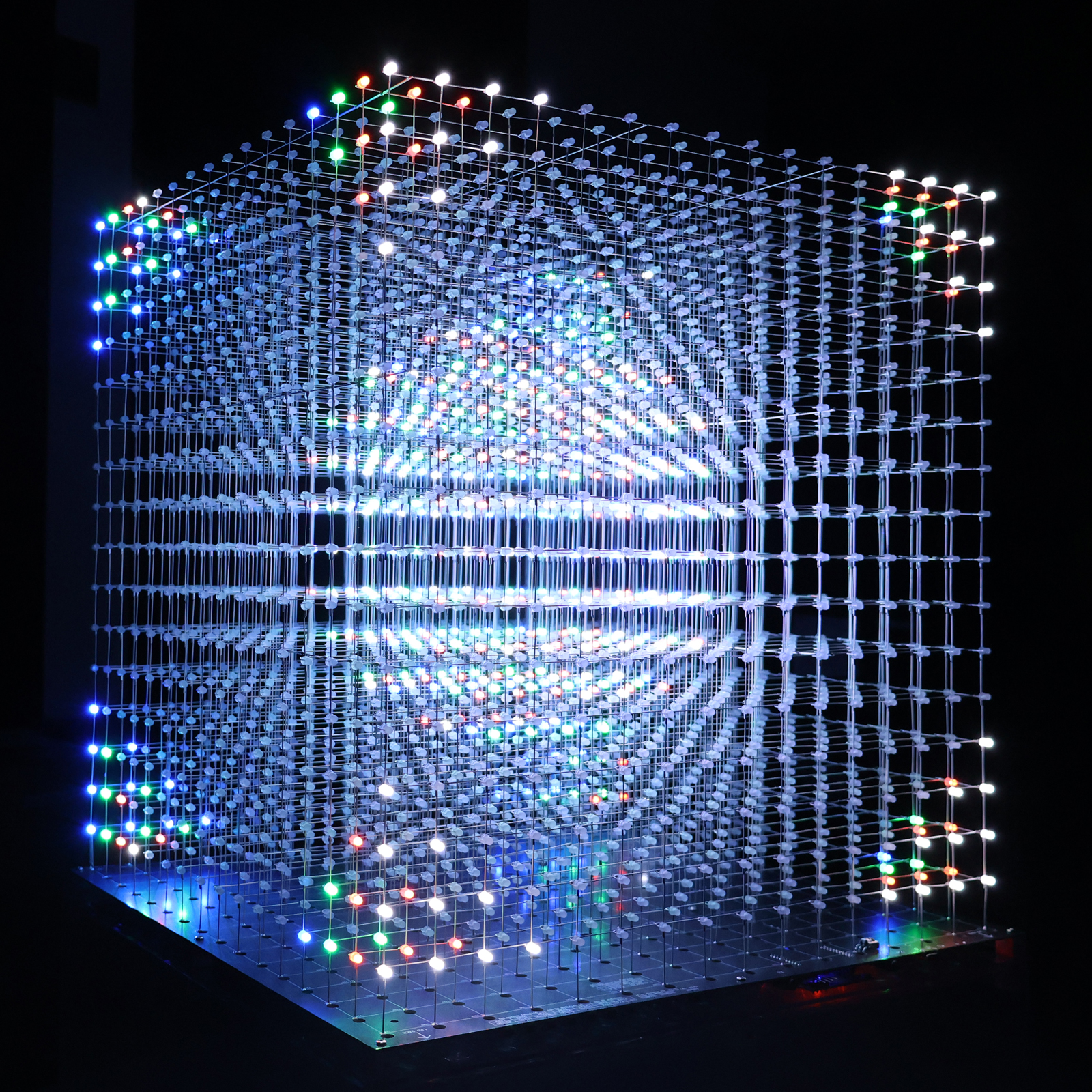

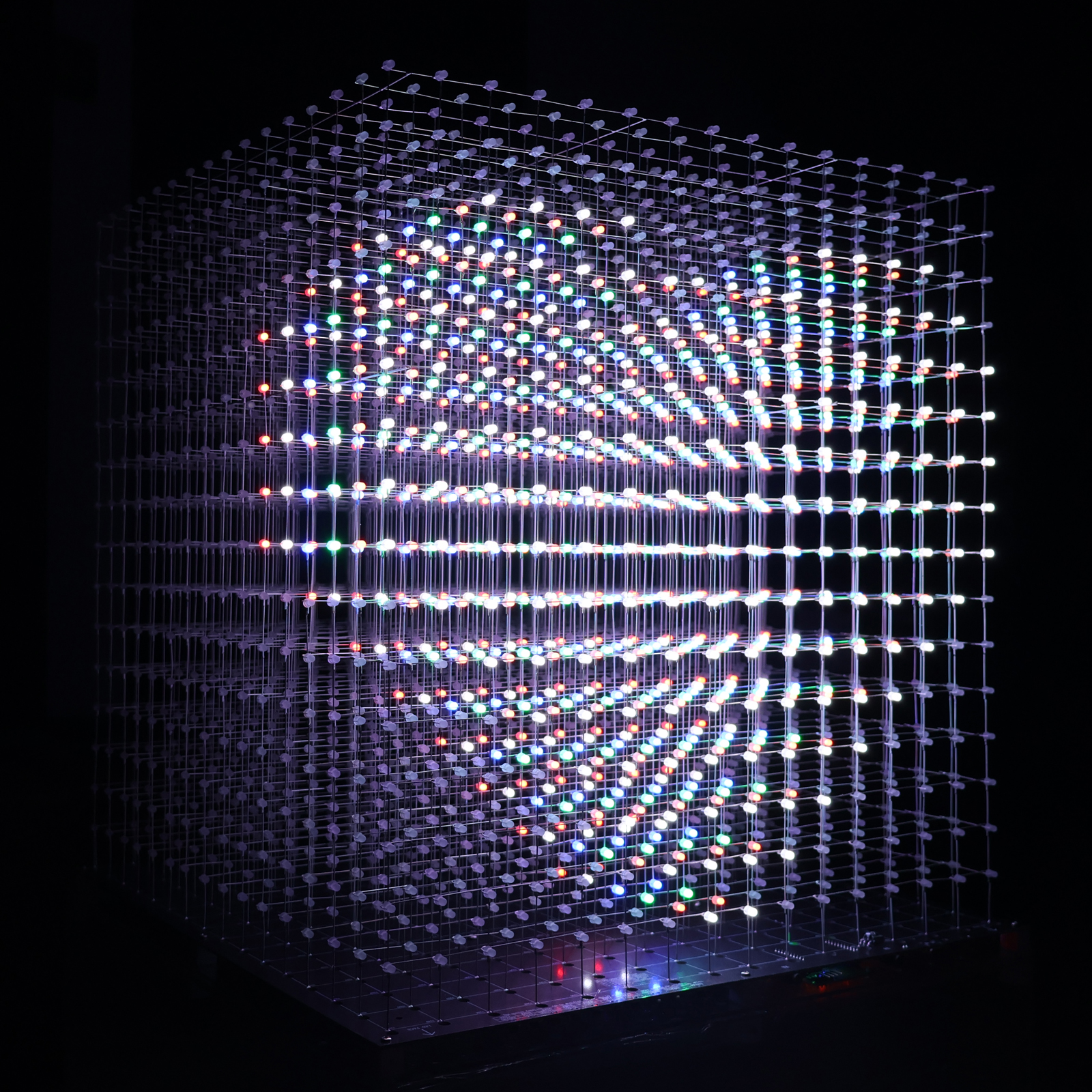

We have been engaged in the design and production of Led Cube for 9 years. We have designed various sizes of led cube as well as other electronic DIY products. If you receive the product and do not know how to make it, or if there are fewer components for any reason, or if you need our help to modify the displayed animation, you can leave us a message. We offer life-long technical support services for our DIY products. The following are some 3D16S finished pictures:
