iCubeSmart 3D16RGB Led Cube Kit Full Color 16x16x16RGB Cube DIY Electronic Kits

Name: iCubeSmart 3D16RGB Led Cube Kit Full Color 16x16x16RGB Cube DIY Electronic Kits
Brand: iCubeSmart
SKU: 3D16RGB-KIT
Price: 498 USD
Availability: InStock
Rating: 0 (0 reviews)

$498.00 USD

Quantity

Free worldwide shipping

Free returns

Carbon neutral

Secure payments

Shipping Policy

Return Policy

Full Color 16x16x16 Led Cube:

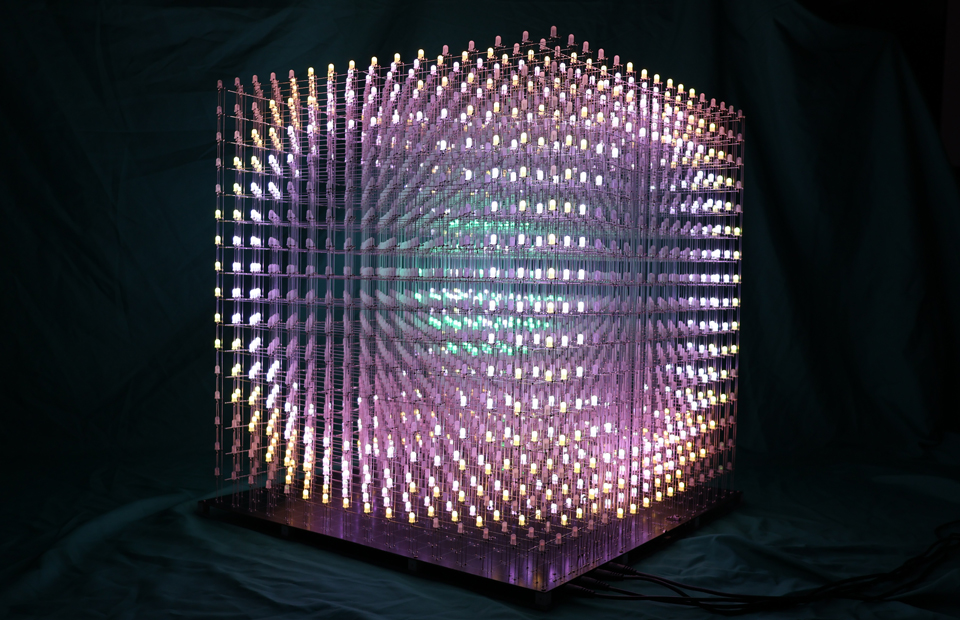

This is an 16x16x16 LED CUBE composed of 4096 three-in-one (red, green and blue) lamp beads. Each lamp bead has four pins, and each LED can give out full-color light. It has more colors than the LED CUBE of monochrome LEDs. More than 30 kinds of brilliant animation effects have been built into the masterboard. Users can display the animation after welding and plugging in the 5V power supply(Current 20A). The following is the video effect of the 3D16RGB finished product:

Product size:

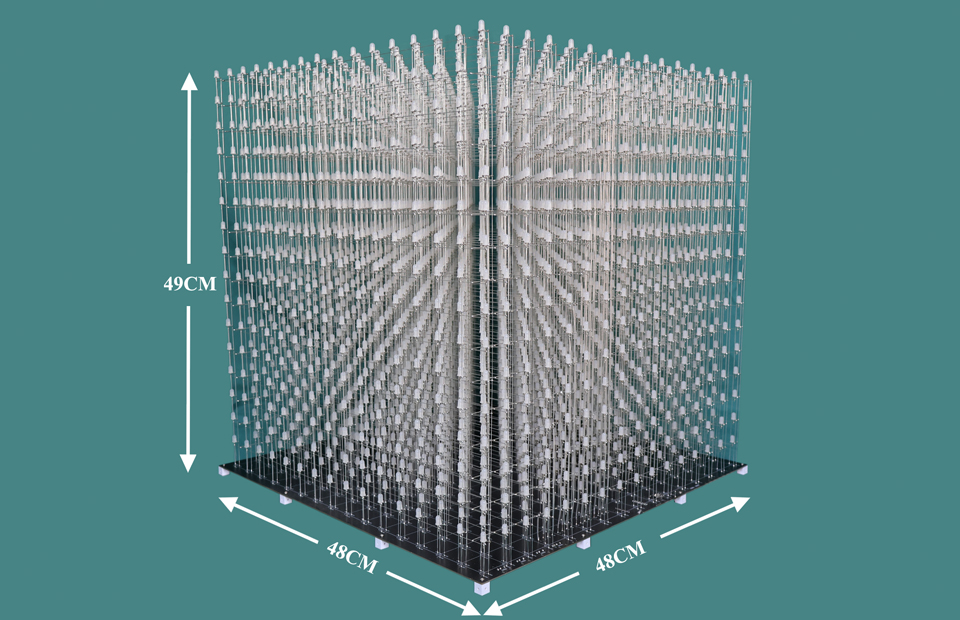

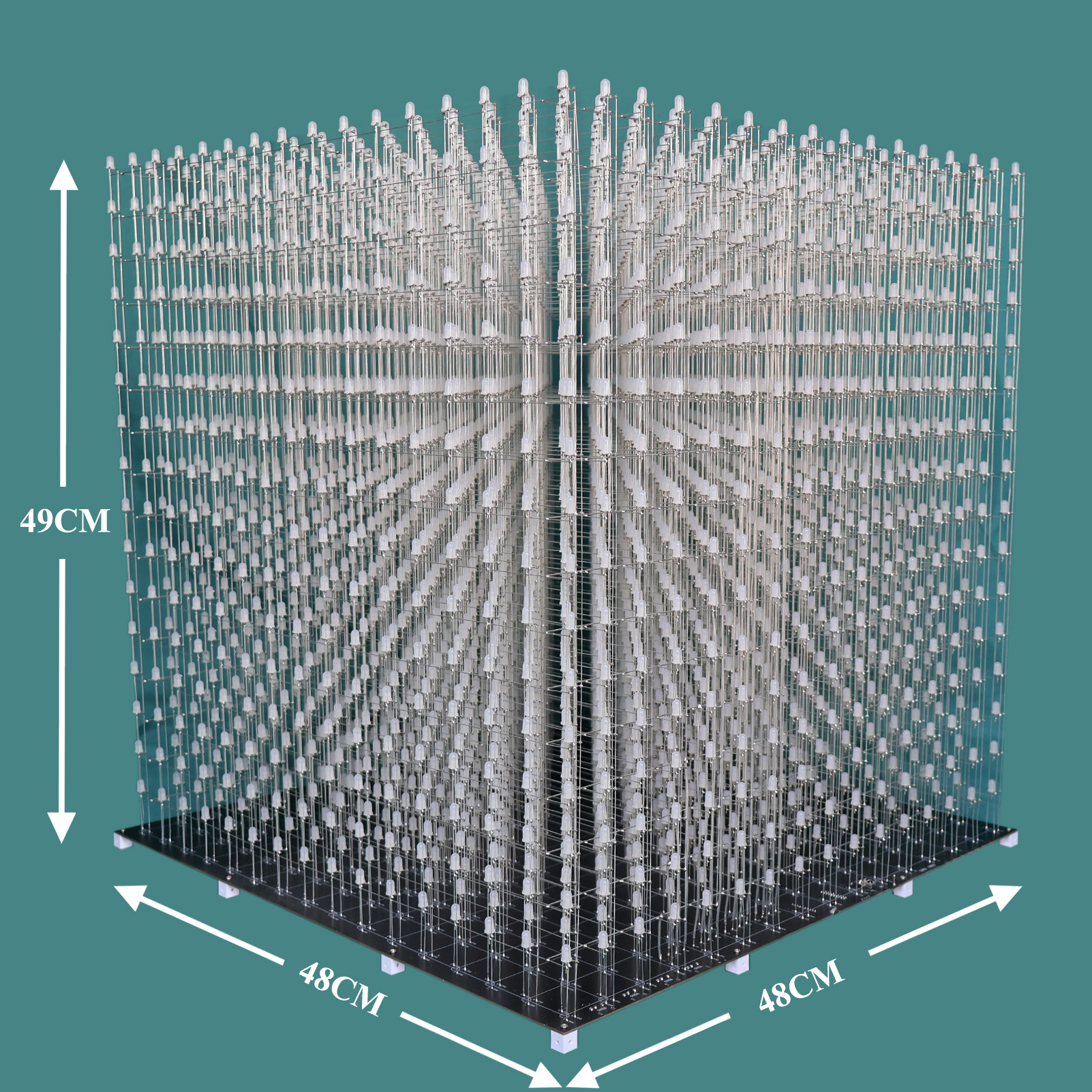

The finished product is 48x48x49cm in dimensions after welded, and the distance between the lamps is 3cm.

Used For:

It is suitable for students' manual electronic manufacturing courses, hands-on welding exercises and electronics enthusiast. Meanwhile, it is also a pretty innovative and meaningful gift.

It Needs To Be Welded By The Buyer:

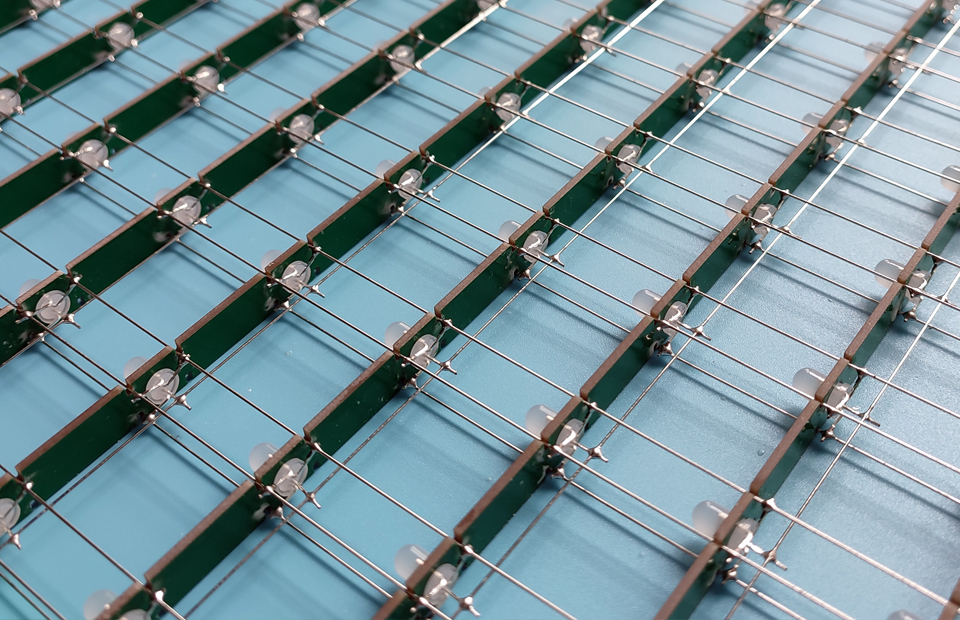

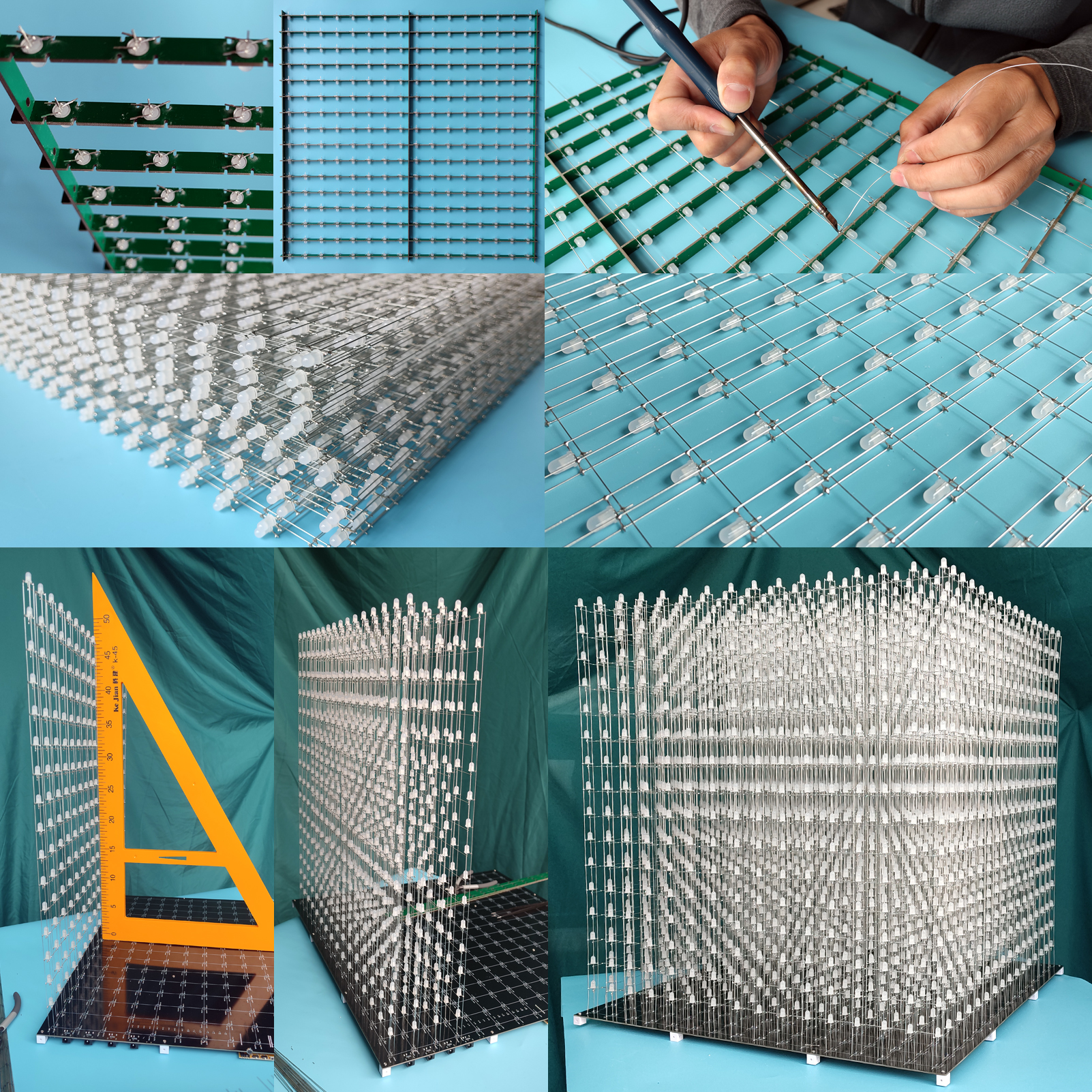

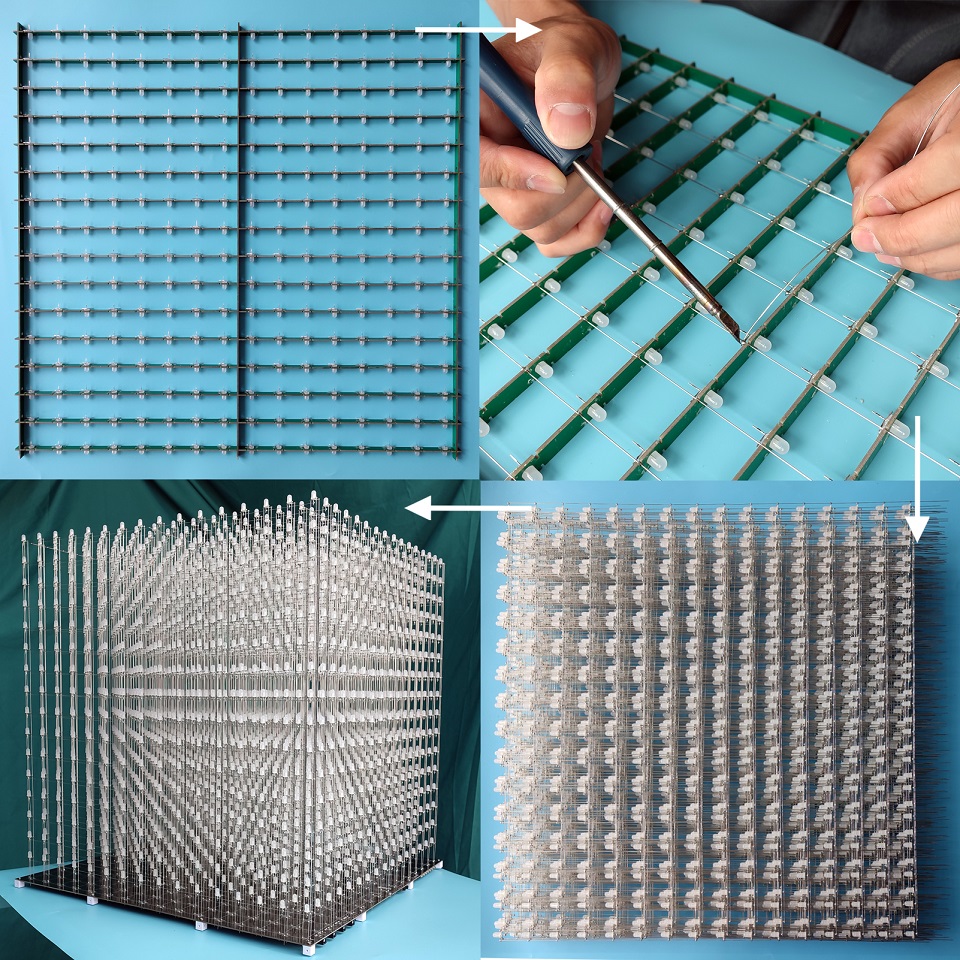

As required, users should weld 4096 RGB lamps on their own and they also need to be skilled in welding technology. We have designed a fixed LED support to facilitate and better LED welding. Users only need to weld step by step according to the installation instructions;

Please download the latest 3D16RGB electronic information from the Google web disk address:
https://drive.google.com/file/d/1eVVJzDvNRT6HEUTgv75-o2CGbikz15w0

Hardware Composition:

It is controlled by an GD32F103RET6 single chip microcomputer (SCM) and LED is driven by an MBI5024 constant current chip. Its main board is welded and tested. The size of the main board is 48x48cm. The horizontal 16 layers are positive electrodes and the vertical 768 columns are negative electrodes.

The masterboard is powered by 5V power adapter, we provide four 10A current power cords. Users need to prepare their own 5V 20A current power adapter; there are 7 keys on the masterboard to switch animation modes;

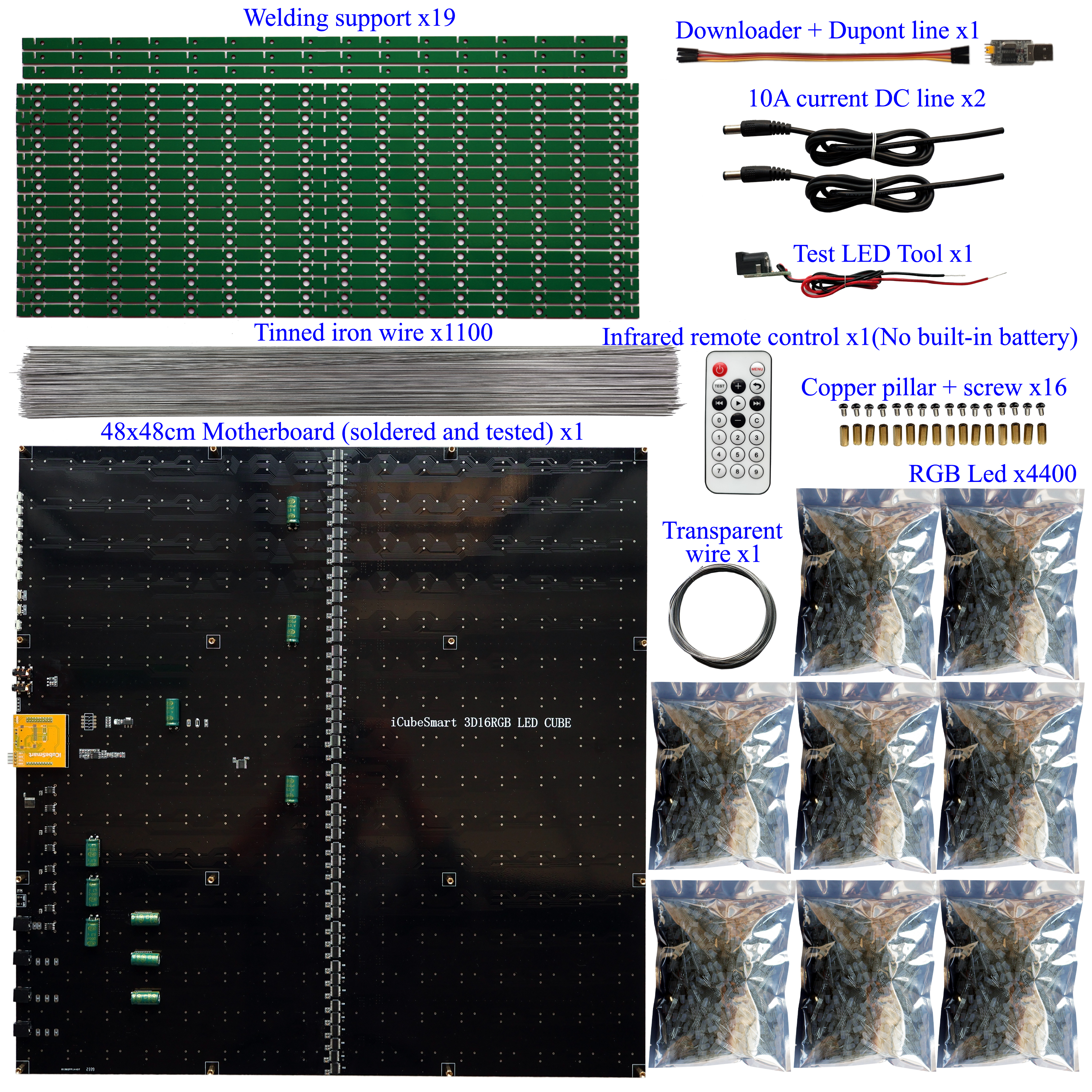

3D16RGB-KIT Option Package Include:

The suite includes such accessories as follows:

1. 5mm RGB LED x4400 pcs (4096 leds used);

2. Welding support x1 set (19 green PCBs);

3. 0.5mm (diameter), 50cm-long fine tinned iron wire x1100 pcs(1056 used);

4. Welded and tested mainboard (black) x1;

5. Infrared remote control x1;

6. Transparent wire x1;

7. 10A DC power cable x2;

8. Copper pillar + screw x16;

9. Downloader + Dupont line x1;

10. Test Led Tool x1;

Professional Services:

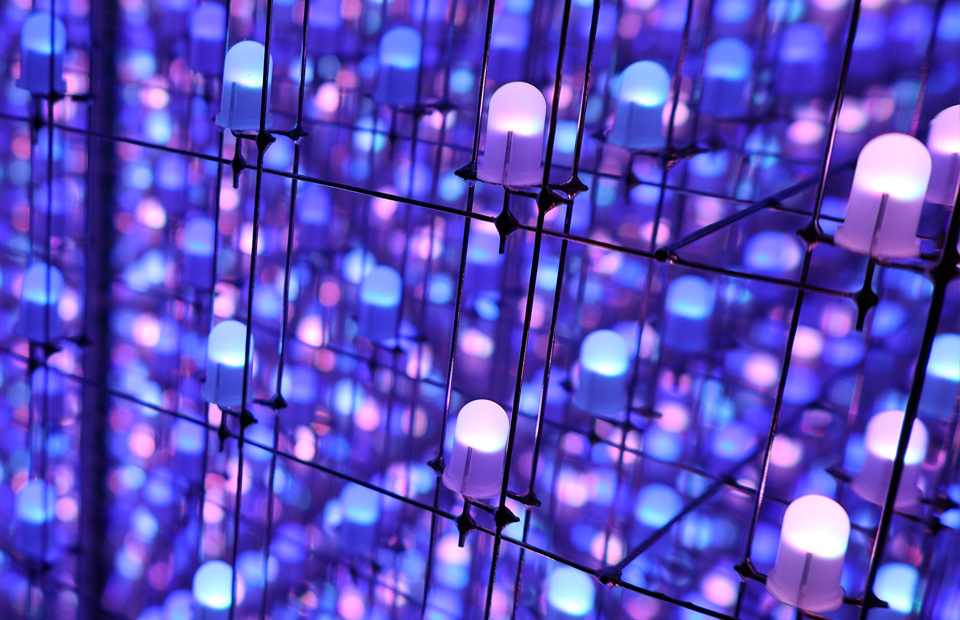

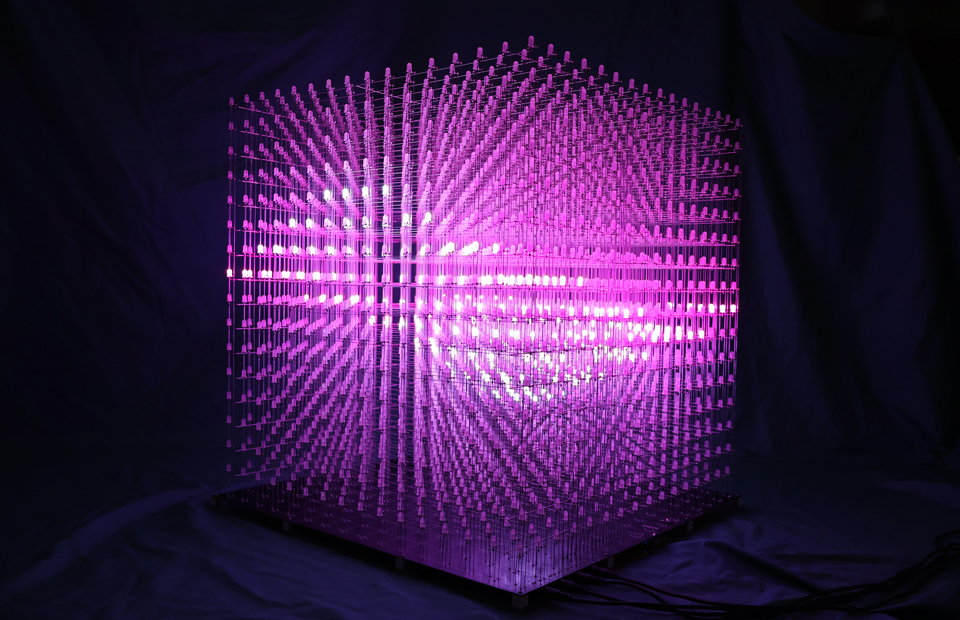

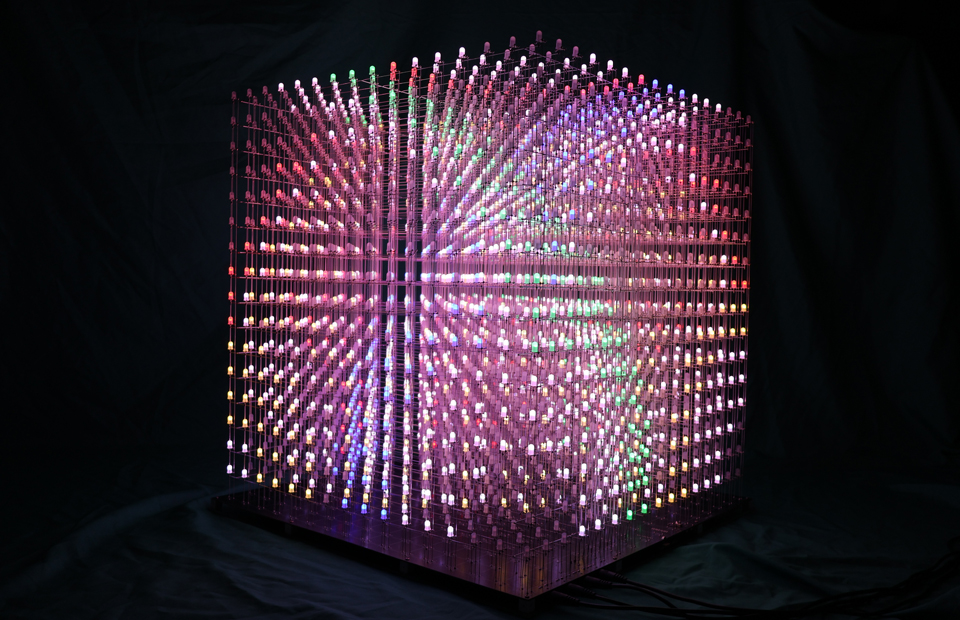

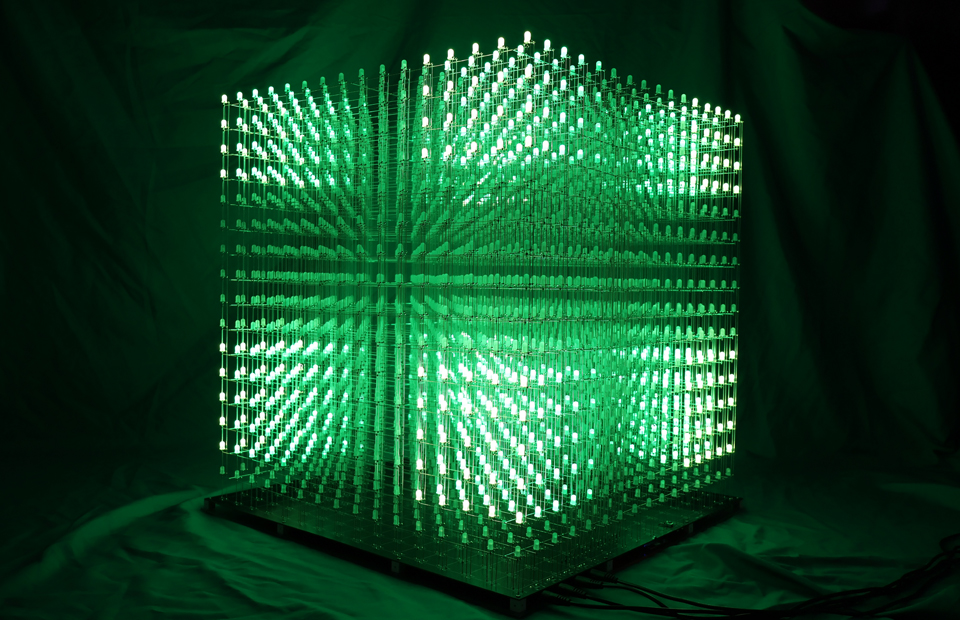

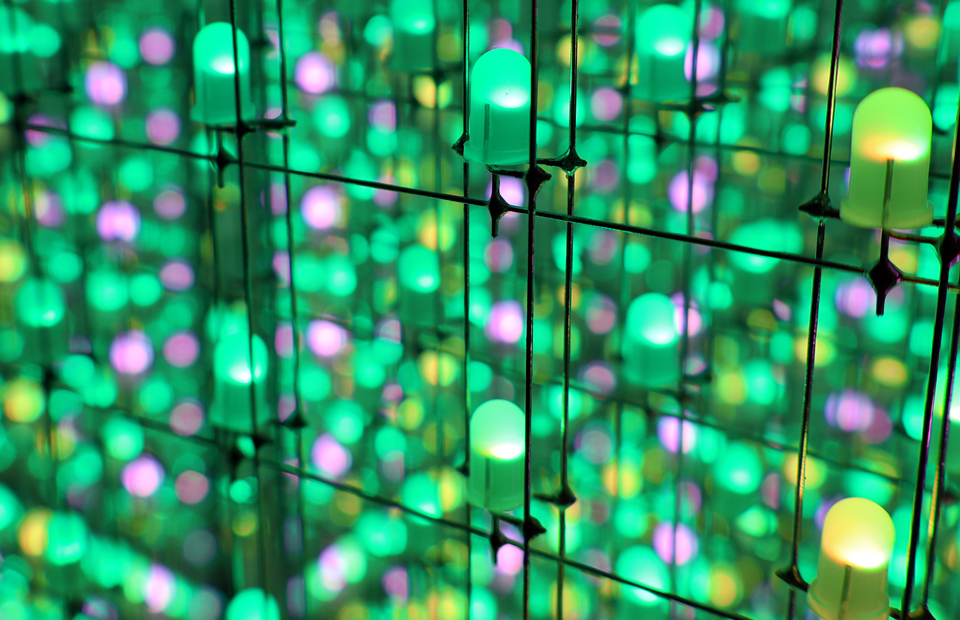

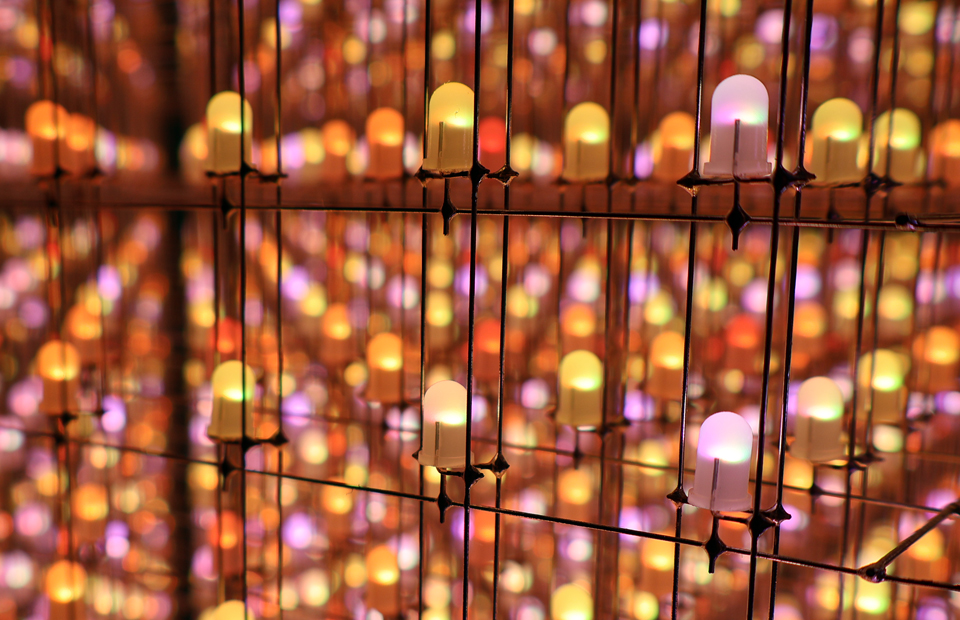

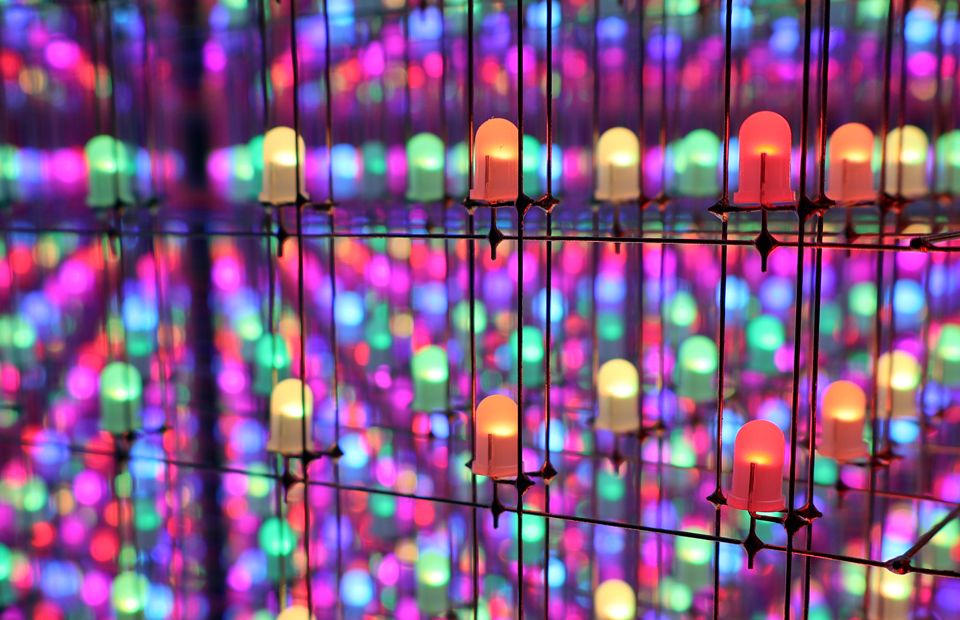

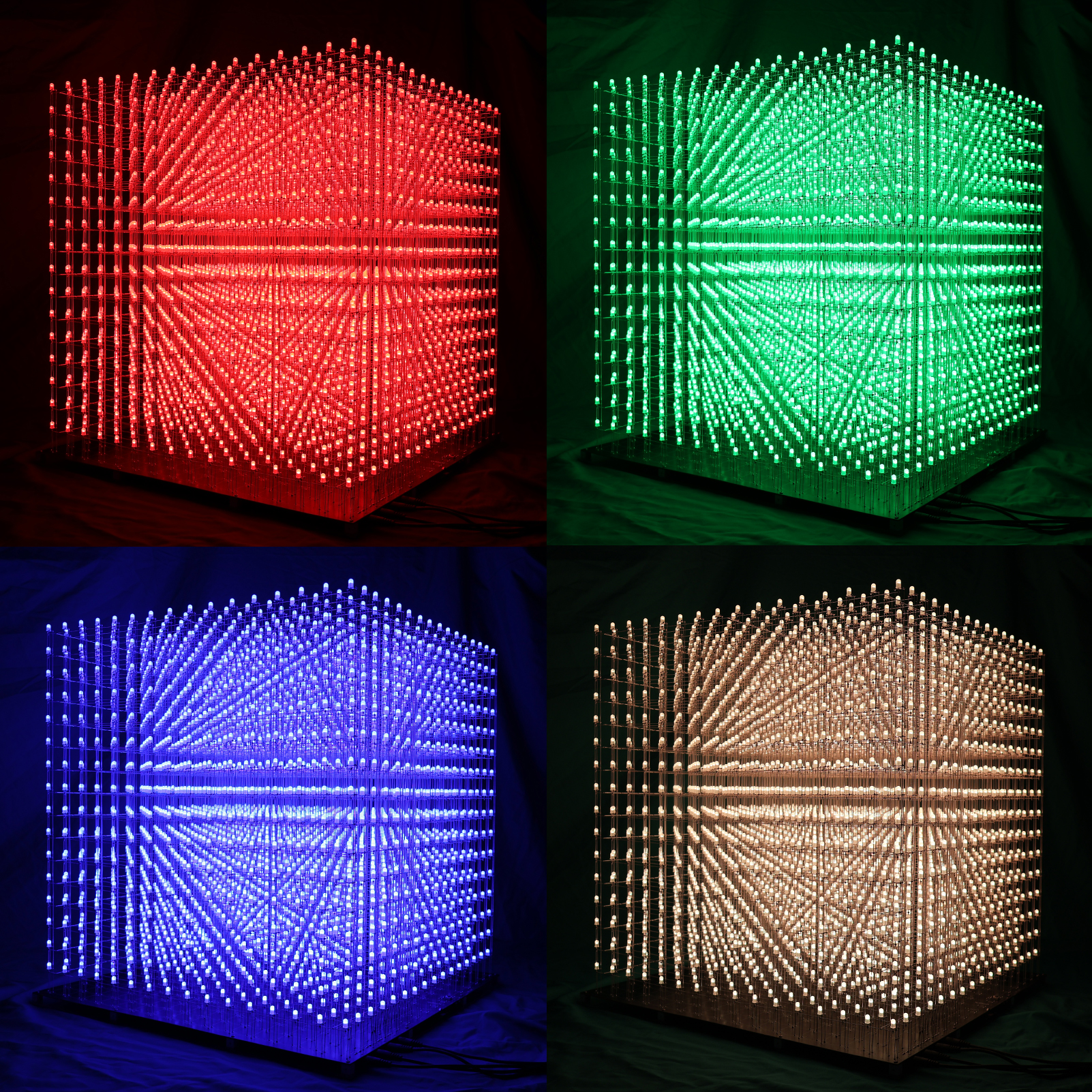

We have been engaged in the design and production of Led Cube for 9 years. We have designed various sizes of led cube as well as other electronic DIY products. If you receive the product and do not know how to make it, or if there are fewer components for any reason, or if you need our help to modify the displayed animation, you can leave us a message. We offer life-long technical support services for our DIY products. The following are some 3D16RGB finished pictures:
