Interesting Electronic DIY Kit:
This is a diy electronics kit for 3D Led cube, a 3D matrix made up of 512 square LED lamps, which can display a lot of colorful dynamic lighting shapes. The size of the finished product after welding of this package is about 18x18.5x20cm, and the distance between the lamps is 2.3cm. More than 25 kinds of brilliant animation effects have been built into the masterboard. Users can display the animation after welding and plugging in the 5V USB power supply. The following is the video effect of the 3D8S-MULTI finished product: https://youtu.be/kFy02-3jGgo
Used For:
It is suitable for students' manual electronic manufacturing courses, hands-on welding exercises and electronics enthusiast. Meanwhile, it is also a pretty innovative and meaningful small gift.
It Needs To Be Welded By The Buyer:

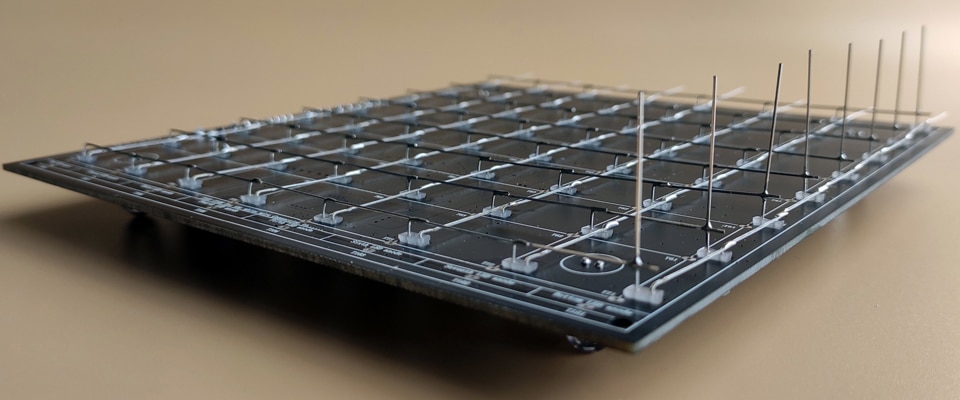

The PCB main board in this package has been well soldered and tested, and users only need to solder the LED lamp themselves, so users are only required to have a simple electronic technology foundation and soldering ability. There are 64 square holes on the main board to fix the LED and make welding easier. We provide paper welding installation instructions.
The following link is a video of the DIY installation process: https://youtu.be/SXNJqKMamI4
Hardware Composition:
Microcontroller: STC12C5A60S2 Driver chip: 74HC573 + BR4953, the horizontal 8 layers are positive electrodes and the vertical 64 columns are negative electrodes.
The masterboard is powered by 5V USB; there are 4 keys on the masterboard to switch animation modes (key functions are reset, start/pause, next animation, loop playback of single animation/loop playback of all animations respectively); the masterboard has a connector for downloading programs.
Displayed Patterns Allowed To Be Modified:
To enable every ordinary person to modify the displayed pattern (rather than a professional electronic engineer), we have created a 3D animation software on the PC computer. This is a quite simple software, in this software, you can use the mouse to light up or turn off each light on the light cube. After making the pattern with the mouse, package the coordinates for the movement of the pattern, the pattern will move; or, you can also use the mouse to make several 3D patterns, and then let these patterns display in sequence, thus forming the effect of 3D animation, which is much simpler than using C language to modify the displayed pattern. Users can obtain and try this 3D animation software in electronic files. https://drive.google.com/file/d/1a62NuU_QtyUHD0oo4XSAAWj_dZoWQHCB The following link is a video of the animation modification software. https://www.youtube.com/watch?v=tGaJr17tRak
Our Efforts Are Only To Make It Easier For Buyers To Succeed:
We have made a lot of efforts to make the installation as simple as possible for the buyer, and the installation is successful. Upon receipt of the goods, you only need to weld the LED lamp based on the paper welding instructions and plug in the 5V usb power supply to display brilliant lighting effects.
1, There are 64 square holes on the main board to fix the LED and make welding easier.
2, We tested the motherboard twice, using the AOI automatic test for the first time, and using the cube test platform for the simulation test for the second time.
3, In order to reduce the reverse leakage of the LED due to too long soldering time, we added 64 protection diodes on the motherboard.
4, As a matter of fact, only 512 leds will be used, but to prevent damage to leds during manufacture, each led is provided for standby.
5, We provide paper manuals in English by default, and we also have manuals in Japanese, German, Spanish, and Italian. Buyers can leave us a message if necessary.
Professional Services:
We have been engaged in the design and production of Led Cube for 9 years. We have designed various sizes of led cube as well as other electronic DIY products. If you receive the product and do not know how to make it, or if there are fewer components for any reason, or if you need our help to modify the displayed animation, you can leave us a message. We offer life-long technical support services for our DIY products.
Description of different options:
Please note that the different options are priced differently and the accessories they include are also different.
3D8S-MULTI options:

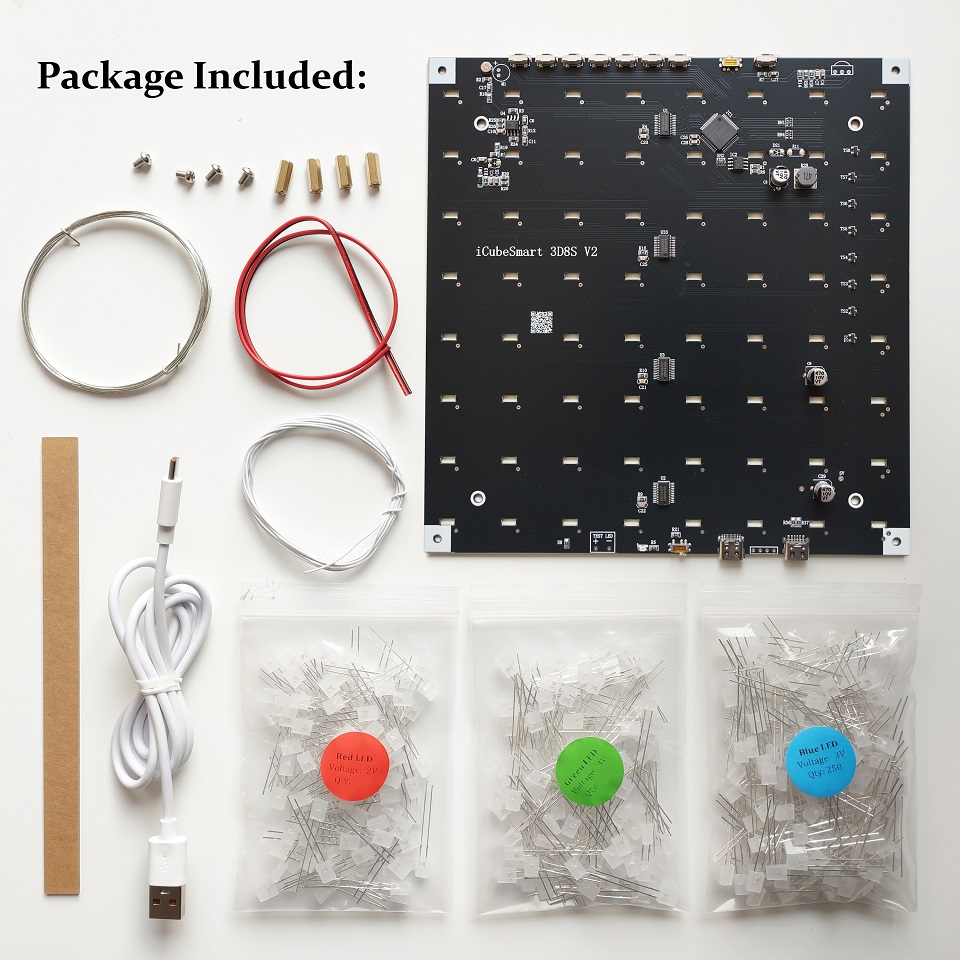

1, Soldered and tested masterboard (size: 18*18.5cm) x1
2, USB download tool x1
3, Micro USB cable x1
4, 0.8mm tinned iron wire x1
5, White electronic line x1
6, 2mm acrylic strip (used for bending LED anode) x1
7, Foggy highlight square LED: 200 Red Leds, 200 Green Leds, 250 Blue Leds (144 Red leds used, 144 Green leds used, 224 Blue leds used).
8, Red and black wires (for testing LEDs).
9, Paper welding instructions.
3D8S-BLUE options:

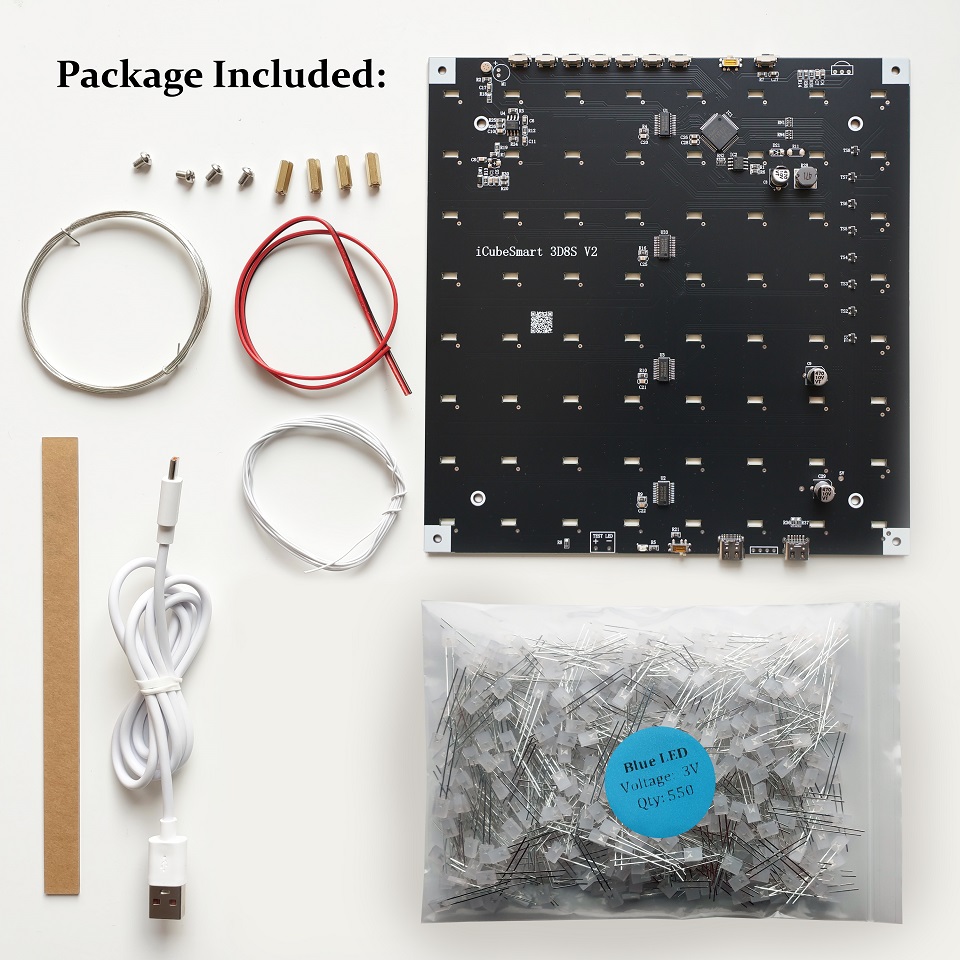

1, Soldered and tested masterboard (size: 18*18.5cm) x1
2, USB download tool x1
3, Micro USB cable x1
4, 0.8mm tinned iron wire x1
5, White electronic line x1
6, 2mm acrylic strip (used for bending LED anode) x1
7, Foggy highlight square LED: 600 Blue Leds (512 Blue leds used).
8, Red and black wires (for testing LEDs).
9, Paper welding instructions.
